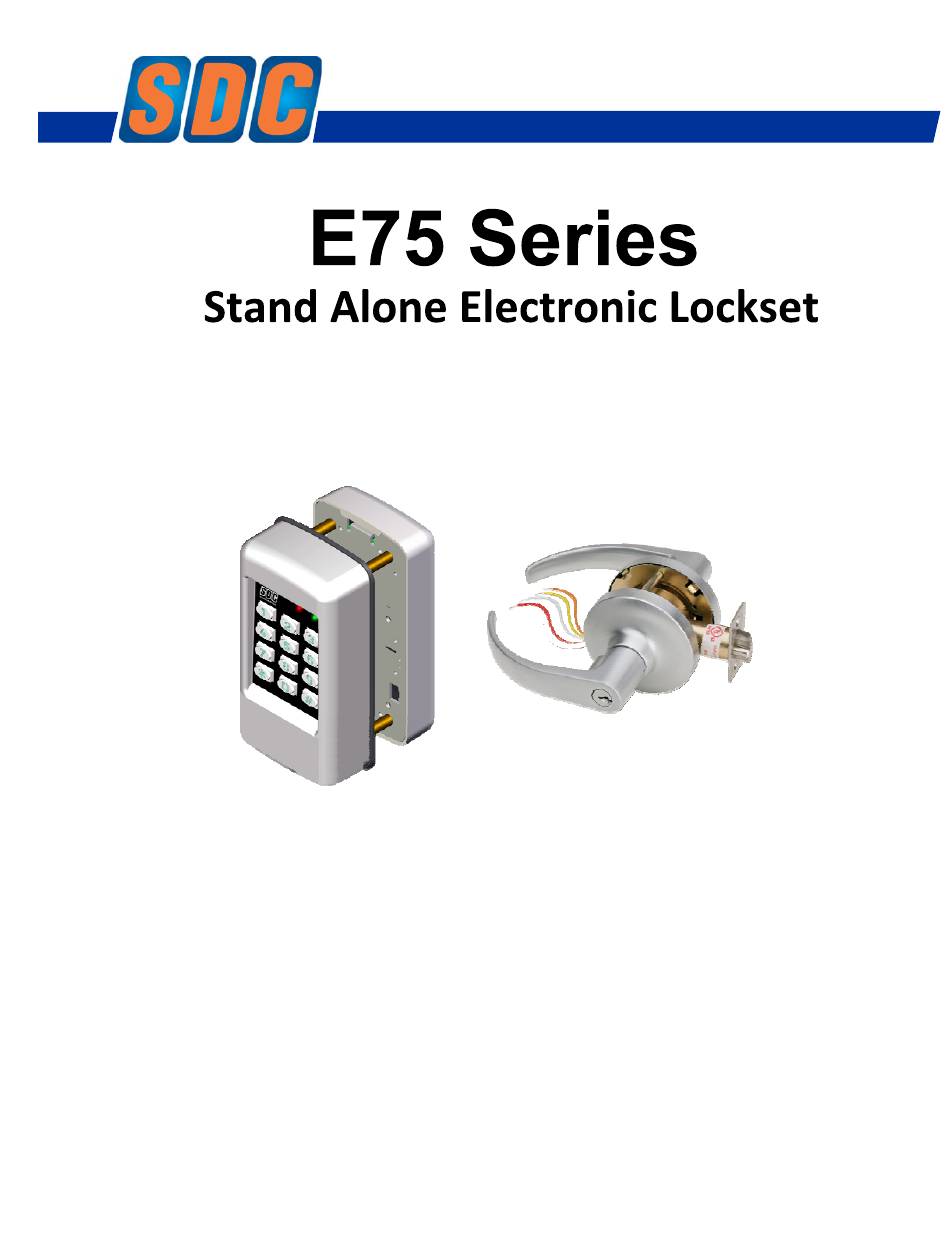

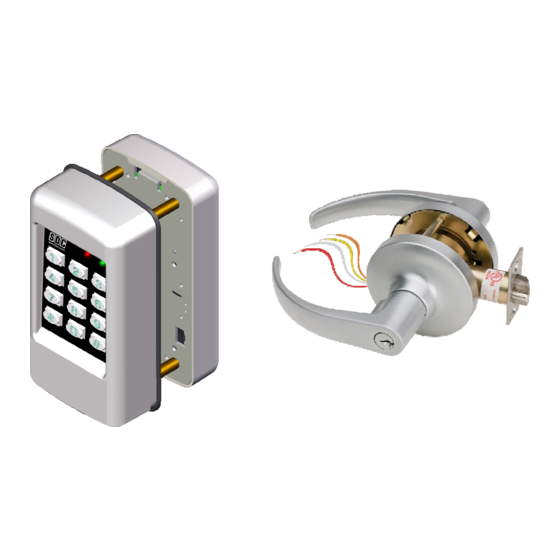

  • Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com Programming Guide Any suggestions or comments to this instruction or product are welcome. Please contact us through P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75 Prog Guide.vsd REV B 12-13 Page Cover our website or email engineer@sdcsecurity.com...
  • Page 2 E75 Specifications: Number of Users: Up to 3,000 access codes per door. (Up to 32 users may be temporary users) Flexible Programming: May be programmed at the lock keypad or by Management Software via the wireless link. Passage Mode Options: First manager in (or privileged user) Automatically according to access schedules Manually toggled on / off at lock...

  • Page 3: User Programming

    User Programming Each user must be assigned a 4 to 6 digit PIN code and assigned to 1 of the 32 available user groups. Group 06 by default has 24/7 access rights but no programming rights. User 01 is the administrator and had all programming and access rights.

  • Page 4: Group Programming

    Group Programming By default, group 06 is set for Access 24/7 and is automatically enabled. Groups 02 through 32 must have an access schedule or schedules (up to 3) assigned to them and then enabled. A group that does not have at least one access schedule assigned to it cannot be enabled.
  • Page 5 Access Card Programming (Prox Units Only) Each card user must be assigned to 1 of the 32 available user groups. Group 06 by default has 24/7 access rights but no programming rights. User 01 is the administrator and has all programming and access rights. User 01 is the only administrator.
  • Page 6 Manual Passage Programming The E75K can be programmed to automatically unlock preset period of time allowing free egress and ingress without using a PIN . This is called the passage mode. Once a schedule has been programmed , The E75K will continue to follow the schedule indefinitely until the schedule is cleared.

  • Page 7: Time And Date Settings

    Time And Date Settings Set the Date: 30# MMDDYY# MM = 2 digit Month Example: Press 30# 011513 # DD = 2 digit Day The date is set for January 15 th 2013 YY = 2 digit Year Set the Time: 31# HH MM# HH = Hours (24hr format) Example: Press 31#...

  • Page 8: Timer Settings

    Timer Settings Set Unlock Timer: 21# Seconds# Seconds = 03-20 Example: Press 21# 03 # Unlock timer is set for 03 seconds. (default) Set Door Prop Timer: 47# Seconds# Seconds = 10-255 Example: Press 47# 20 # Door Prop timer is set for 20 seconds. (default) Set Anti-Passback Timer: 63# Seconds# Seconds = 0-60 (0 sec= off [default])
  • Page 9 Door Status Input Configuration Door Status Input Enable: 43# Status # Status = 0 Disabled (default) 1 Enabled Example 1: Press 43# The Door Status Input is Enabled. Door Status Input Configuration: 44# Status # Status = 0 Normally Closed (N/C) (default). Example 1: Press 44# 1 Normally Open (N/O) A contact closure will trigger the Input .
  • Page 10 E75 PROGRAMMING CODES WITH DEFAULT SETTINGS DEFAULT DEFAULT FUNCTION CODE FUNCTION CODE SETTING SETTING ADD SINGLE USER TWO USER CODES REQUIRED REMOTE INPUT ENABLE DELETE SINGLE USER REMOTE INPUT CONFIGURATION CHANGE A USER ‘S PIN CHANGE USER’S GROUP DOOR POSITION SWITCH ENABLE DOOR STATUS SWITCH CONFIGURATION ENABLE FORCED DOOR ALARM SET OPEN/UNLOCK TIME...
