801 Avenida Acaso, Camarillo, Ca. 93012 •
(805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Stand Alone Electronic Lockset
Programming Guide
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75 Prog Guide.vsd
REV D
07-15

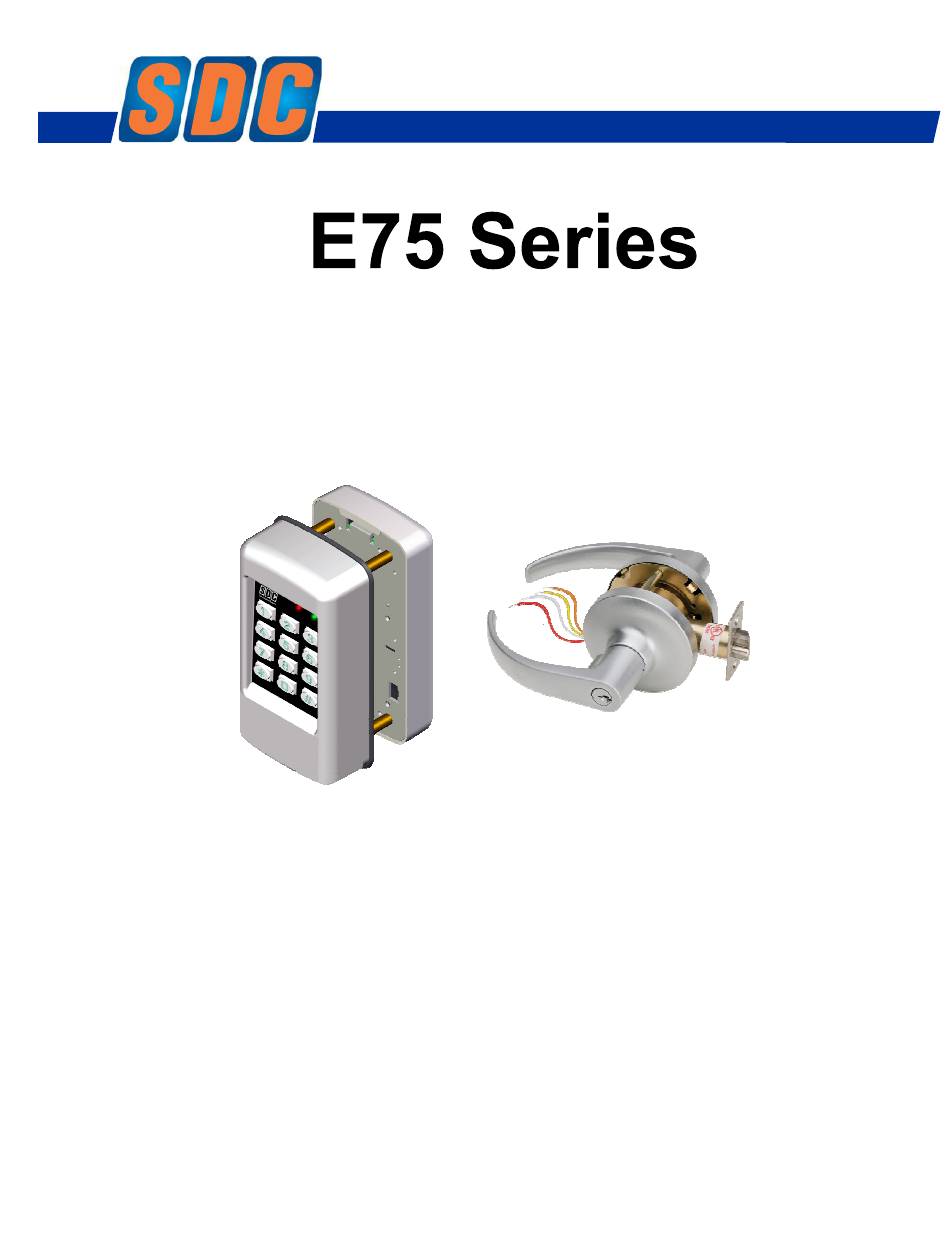

Page Cover
our website or email engineer@sdcsecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E75 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SDC E75 Series

Summary of Contents for SDC E75 Series

  • Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com Stand Alone Electronic Lockset Programming Guide Any suggestions or comments to this instruction or product are welcome. Please contact us through P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75 Prog Guide.vsd REV D 07-15 Page Cover...
  • Page 2 (1) Pre - Initialization: To test lock operation before initialization, 1) Apply Power (Plug in the battery pack) 2) Enter *741. This temporary code will unlock the E75 for testing purposes. Once a lock initialization has been performed, this code is no longer active until a hardware reset is performed which will erase all the users and return the E75 back into the uninitialized factory default condition.
  • Page 3 E75 PROGRAMMING FUNCTIONS INDEX PAGE CODE FUNCTION FUNCTION CODE PAGE SET TEMPORARY USER ACCESS PERIOD ADD SINGLE PIN CODE USER SET DAYLIGHT SAVINGS TIME DELETE SINGLE USER (ALL MODELS) ENABLE DAYLIGHT SAVINGS TIME CHANGE A USER’S PIN CODE FIRST SUPERVISOR TO ARRIVE ADD/CHANGE PIN TO A PROX CARD USER SET HOLIDAYS CHANGE USER’S GROUP (ALL MODELS)

  • Page 4: User Programming

    User Programming Each user must be assigned a 4 to 6 digit PIN code and assigned to one of the 32 available user groups. Group 06 by default has 24/7 access rights but no programming rights. User 01 is the administrator and has all programming and access rights. User 01 is the only administrator and is always assigned to Group 1.

  • Page 5: Group Programming

    Group Programming By default, group 06 is set for Access 24/7 and is automatically enabled. Groups 02 through 32 must have an access schedule or schedules (up to 3) assigned to them. A group that does not have at least one access schedule assigned to it will not be enabled. 4 levels of programming rights and authority are pre-assigned to user groups as follows: Group 01 = Administrator: Full Programming Rights ( User 1 is the only user in this group.
  • Page 6 Access Card Programming (Prox Units Only) New card users will automatically be assigned to Group 6 and no PIN. Group 06 (by default) has 24/7 access rights but no programming rights. PIN codes may be added to Card only users using Function 03 below. You may also add a card to an already existing PIN Only user.
  • Page 7 Manual Passage Programming The E75K can be programmed to automatically unlock for a preset period of time allowing free egress and ingress without using a PIN . This is called the passage mode. Once a schedule has been programmed , the E75 will continue to follow the schedule indefinitely until the schedule is cleared.

  • Page 8: Time And Date Settings

    Time And Date Settings Set the Date: 30# MMDDYY# Example: Press 30# 011513 # MM = 2 digit Month The date is set for January 15 th 2013 DD = 2 digit Day YY = 2 digit Year Set the Time: 31# HH MM# Example: Press 31# 1320 #...

  • Page 9: Timer Settings

    Timer Settings Set Unlock Timer: 21# Seconds# Seconds = 01-100 Example: Press 21# 03 # Unlock timer is set for 03 seconds. (default) Set Door Prop Timer: 47# Seconds# Example: Press 47# 20 # Seconds = 10-255 Door Prop timer is set for 20 seconds. (default) Set Anti-Passback Timer: 63# Seconds# Example: Press 63#...
  • Page 10 Door Status Input Configuration Door Status Input Enable: 43# Status # Status = 0 Disabled (default) 1 Enabled Example 1: Press 43# The Door Status Input is Enabled. Required for Forced Door & Door Prop alarm monitoring. Door Status Input Configuration: 44# Status # Status = 0 Normally Closed (N/C) (default).
  • Page 11 Returning the E75 to Factory Defaults Clear all Programming : 99# 000000 # Example 1: Press 99# 000000 # All user codes, groups, schedules, lock parameters, and audit trail information is set to factory defaults. The lock ID & Administrative PIN are not affected. Hardware Reset to Factory Settings A hardware reset will erase all the data and return the E75 back into the uninitialized factory default condition.
