801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
IMPORTANT: It is highly recommended that installers first view the "E75 STANDALONE
ELECTRONIC KEYPAD" video available online at https://www.sdcsecurity.com/videos.htm
1

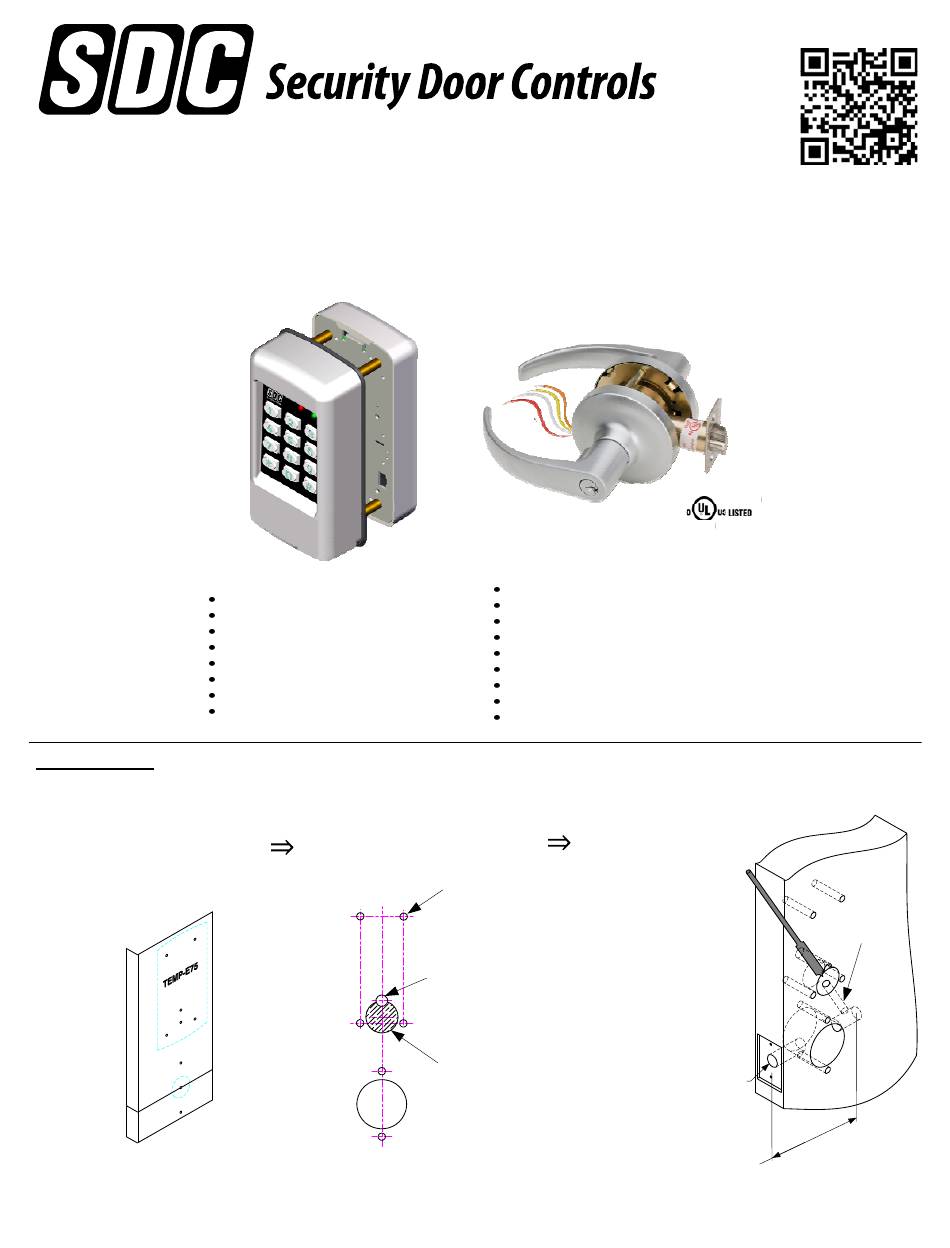

Place provided E75
Template on inside
of door to mark hole
locations.
P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75.vsd
INSTALLATION INSTRUCTIONS
E75 STANDALONE ELECTRONIC LOCKSET
Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 digit PIN Codes
Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
After marking hole
locations, drill as
follows;
REV F
03-20
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit existing Lock Door Prep
Motorized SDC Cylindrical Lockset
Heavy Duty ANSI Grade 1
Vandal resistant Lever Handles
Privacy Mode Option (E75KL & E75PL only)
After drilling
holes in door,
use a 1/4"
4X 11/32"
Butterfly bit, to
Dia. thru
drill the wire
raceway where
shown.
1/2" Dia. thru
1-3/8 Dia.
3/4" deep
Inside of door
Page 1
Electrically Operated Single Point Locks
& Latches, 3hr 'A' Label Fire Doors
INSIDE
Raceway
1.00"
Diameter
5.00"
min depth
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC E75KL
Summary of Contents for SDC E75KL
- Page 1 Heavy Duty ANSI Grade 1 4 Authority Levels Vandal resistant Lever Handles Keypad Tamper Lockout Privacy Mode Option (E75KL & E75PL only) IMPORTANT: It is highly recommended that installers first view the “E75 STANDALONE ELECTRONIC KEYPAD” video available online at https://www.sdcsecurity.com/videos.htm Place provided E75...
- Page 2 Pull Wire Wire Cylindrical Lock Wires FOR E75KL or E75PL Privacy Locks, skip to Steps 8-10 on the next page. For all other models, follow Steps 5-7 below. Install the Keypad and Attach wires from the lockset to the keypad Battery pack to the door using the chart to the right.
- Page 3 Steps 8-10 for E75KL and E75PL Privacy models only, Install the Keypad and Battery pack to the door Carefully route all the wires from the keypad thru the battery pack backplate 2-wire keypad power Gasket 4-wire connector Privacy connector Batter pack backplate...
- Page 4 1.813 4X Ø11/32” 4.448 .681 Ø1/2” 3.365 .279 Ø1-3/8” INSIDE ONLY 2-3/4” E75 TEMPLATE LAYOUT HOLLOW METAL DOOR 161 DOOR PREP 2-3/4” BACKSET P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75.vsd REV F 03-20 Page 3...
- Page 5 Quick Start Programming Instructions E75 EntryCheck For a complete list of lock programming functions, including programming for the E75KL/E75PL Privacy Lock, refer to the E75 Programming Guide included with this lock. Test the Lock Operation To test lock operation before initialization, enter *741. This temporary code will unlock the E75 for testing purposes.
- Page 6 Additional E75 Programming Refer to the E75 Programming Guide for a complete list of lock programming functions. Change a User PIN Code: 03# User No.# New PIN Code # New Pin Code # Example 1: Press 03# 123123# 123123# You have just changed the Administrator’s Pin Code to 123123 NOTE: The Administrator’s PIN code must be 6 digits in length.
