SDC EXCEL EMLOCK E600 Installation Instructions

Download this manual

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

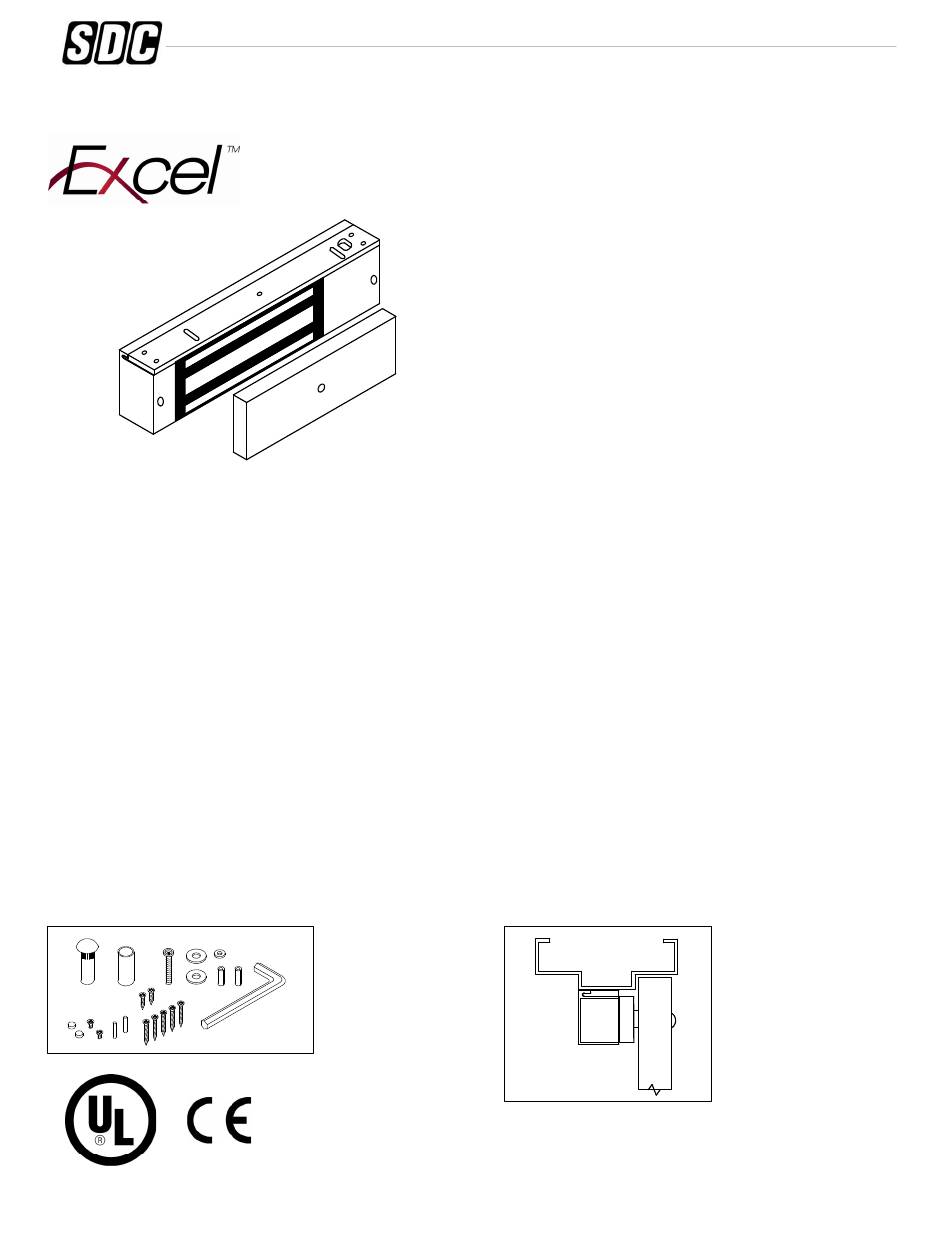

The E600 Series magnetic lock is mounted to the underside of the header, on the stop side of the door. An inswing

mounting kit (optional) can be used when mounting on the hinge side of the door.

Electrical Instructions:

Use properly fused U. L. Listed Power Supply.

Do not install a diode in parallel with any magnetic lock. A diode will cause a delay when releasing the door and

residual magnetism to occur.

Although SDC recommends the use of a DC power supply, a transformer with an adjacent mounted full wave bridge

rectifier may be used. A significant drop will occur when using a full wave bridge rectifier.

Any low voltage condition will cause erratic operation of the optional board sensor.

When using a full wave bridge rectifier all access controls and/or release contacts must be located between the

magnetic lock and rectifier to ensure quick release.

Supplied Mounting Hardware

P:\INSTALLATION INST\EMLOCKS\INST-E600

INSTALLATION INSTRUCTIONS

E600 EXCEL EMLOCK

REV A.5

12-24

Page 1

Electrical Specifications:

Dual Voltage

12 or 24VDC

Power Consumption

500mA@12VDC

250mA@24VDC

DS Door Status Sensor SPDT, 500mA@30VDC

LS Lock Status Sensor SPDT, 2A@30VDC

Outswing

Any suggestions or comments to this instruction or

product are welcome. Please contact us through

our website or email engineer@sdcsecurity.com

Need help?

Do you have a question about the EXCEL EMLOCK E600 and is the answer not in the manual?

Page 1 Do not install a diode in parallel with any magnetic lock. A diode will cause a delay when releasing the door and residual magnetism to occur. Although SDC recommends the use of a DC power supply, a transformer with an adjacent mounted full wave bridge rectifier may be used. A significant drop will occur when using a full wave bridge rectifier.
Page 2 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 1. Inspect the frame header to determine if mounting accessories are required (refer to page 4). 2.
Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 6. Holding the magnet housing at each end, engage the entire length of the interlock detail, by pushing towards the door. Tap with a soft hammer to ensure proper alignment and engagement.
Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 MOUNTING ACCESSORIES: STOP FILLER PLATE ANGLE BRACKET FP04V E12L inches: 1/2" x 1-1/4" x 11" Inches: 1"...
