801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Place E76 Template on inside
of door to mark and drill hole
locations and mortise cut out.
P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E76.vsd
INSTALLATION INSTRUCTIONS

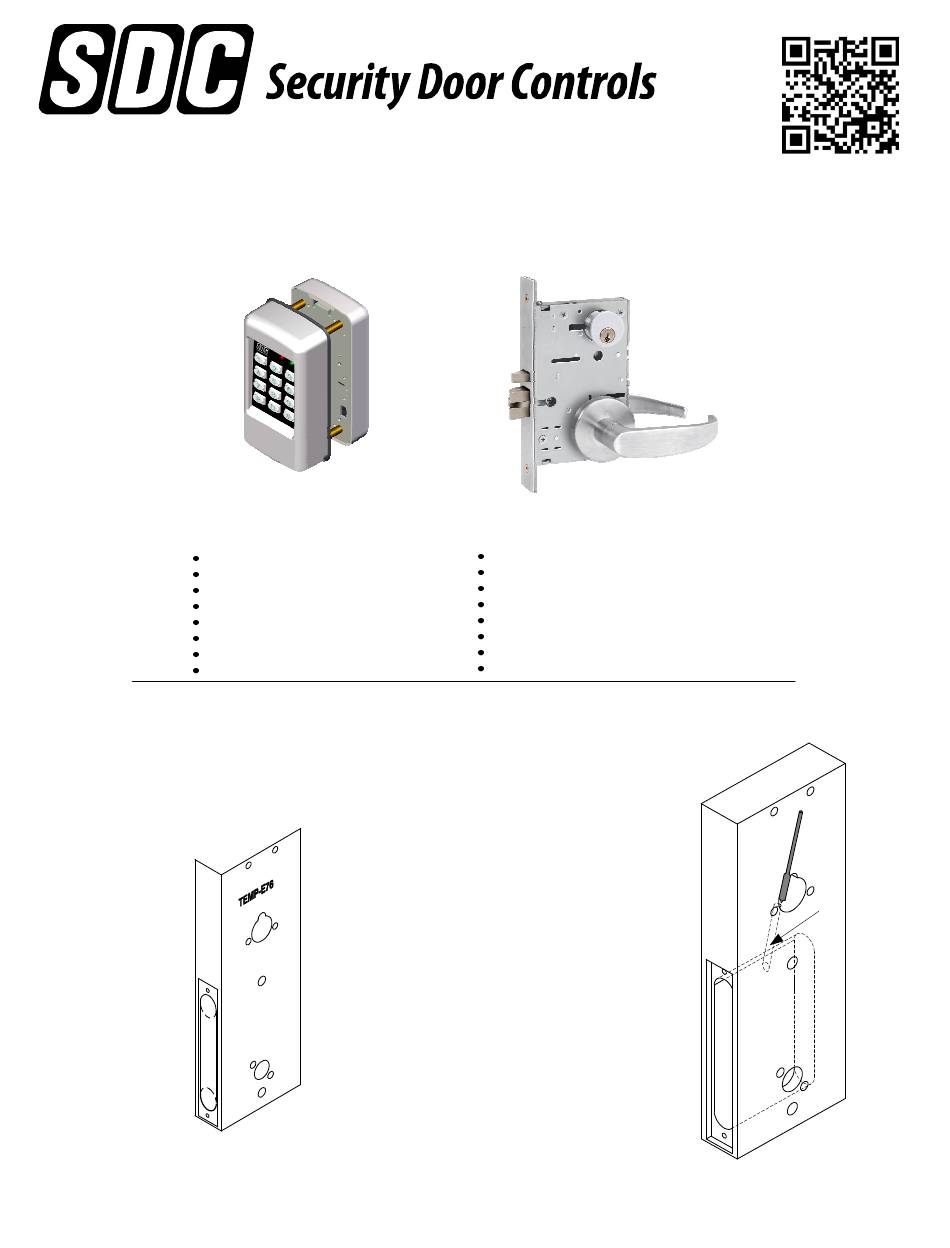

E76 SERIES STANDALONE ELECTRONIC LOCKSET
Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 digit PIN Codes
3 Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
REV A
05-15
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit existing Lock Door Prep
Electrified SDC Mortise Lockcase
Heavy Duty ANSI Grade 1
Vandal resistant Lever Handles
After drilling
holes in door,
use a 1/4"
Butterfly bit, to
drill the wire
raceway where
shown.
Page 1
INSIDE
Raceway
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SDC E76 Series
Summary of Contents for SDC E76 Series
- Page 1 801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS E76 SERIES STANDALONE ELECTRONIC LOCKSET Mechanical Key Override Keypad Programmable Battery Powered (4AA) 3,000 Users, 32 Temporary Users Blue Backlit Cast Metal Keys 4 to 6 digit PIN Codes Weather &...
- Page 2 Pass the wires from the lockcase through the raceway hole. Lightly pull the wires through as you pass the lockcase into the mortise cut out. Install the Mortise lockcase. (Refer to lockset instructions) Install the Keypad and Battery pack to the door Plug in the keypad to the battery pack.
- Page 3 Quick Start Programming Instructions E756 EntryCheck Lock Initiation To Initialize Lock: When the lock is first installed or when after a hard reset has 1) Apply Power (Plug in the battery pack) been performed, the E76K must be initialized and a lock ID must 2) Press #9* 123456# 0001# be entered before you will be allowed to enter the program 3) Press **#...
- Page 4 Additional E76 Programming Change a User Group: 04# User No.# New user Group Example: Press 04# You have just Changed User #05's group to Group 02. Enable a User: 26# User No.# Example: Press 26# You have just re-enabled User #04 . Disable a User: 27# User No.# Example: Press 27#...
- Page 5 User Chart Master Code: Digits PIN Length Group Codes: Name User No. PIN Code Group Group 01 Administrator: Full Programming Rights ( User 01 ) Group 02 Managers: May perform programming functions 1-39 (except Function29) Groups 03-05 Supervisors: May perform programming functions 01,02 &...
