SDC E75 Installation Instructions Manual

Standalone electronic lockset
Hide thumbs Also See for E75:
1
2
3
4
5
6

Advertisement

Table of Contents

801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Place E75 Template
on inside of door to
mark hole locations.
P:\INSTALLATION INST\ACCESS CONTROLS\E75\INST-E75.vsd

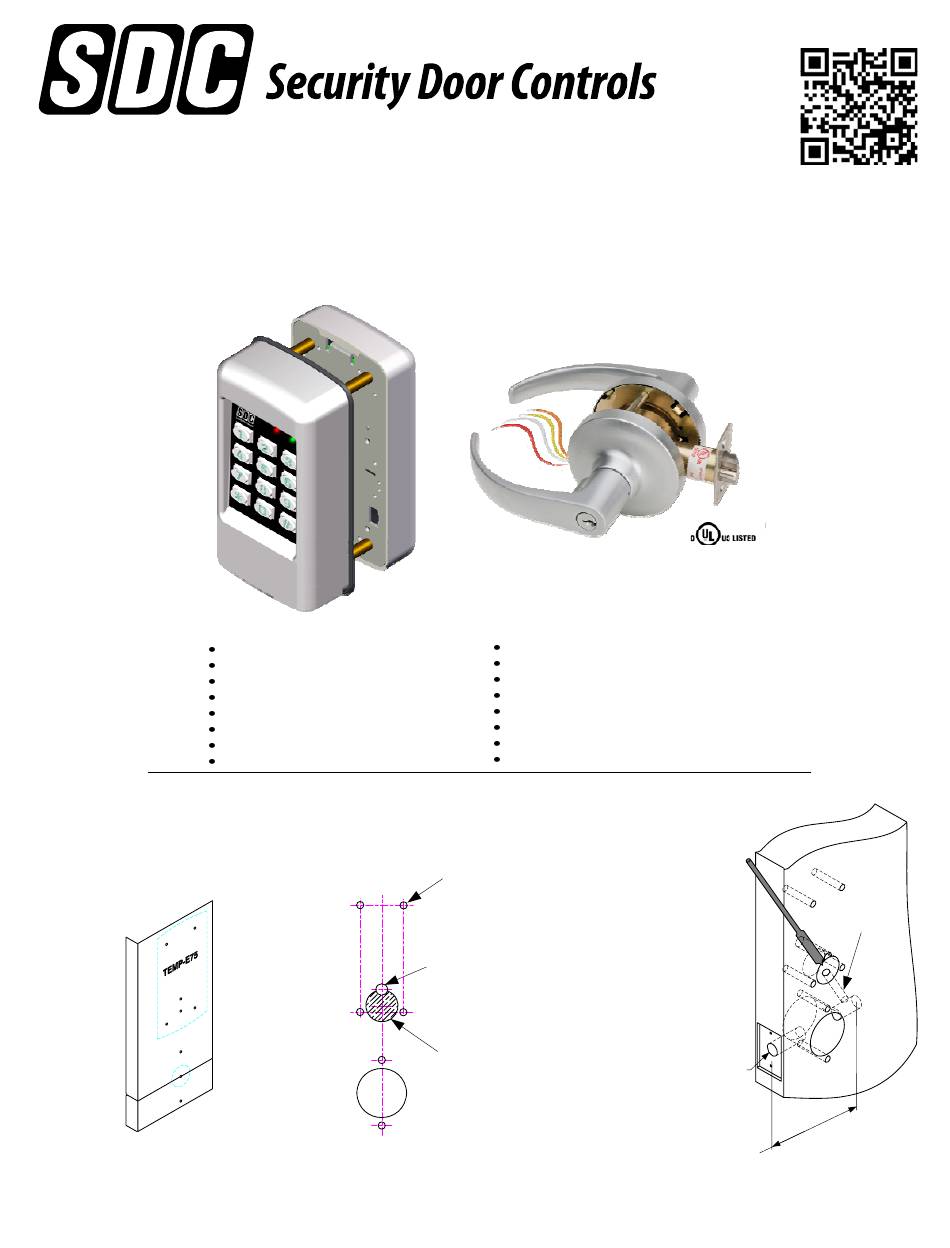

INSTALLATION INSTRUCTIONS
E75 STANDALONE ELECTRONIC LOCKSET
Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 digit PIN Codes
3 Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
After marking hole
locations, drill as
follows;
REV A
05-13
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit existing Lock Door Prep
Motorized SDC Cylindrical Lockset
Heavy Duty ANSI Grade 1
Vandal resistant Lever Handels
After drilling
holes in door,
use a 1/4"
4X 11/32"
Butterfly bit, to
Dia. thru
drill the wire
raceway where
shown.
1/2" Dia. thru
1-3/8 Dia.
3/4" deep
Inside of door
Page 1
Electrically Operated Single Point Locks
& Latches, 3hr 'A' Label Fire Doors
INSIDE
Raceway
1.00"
Diameter
5.00"
min depth
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
