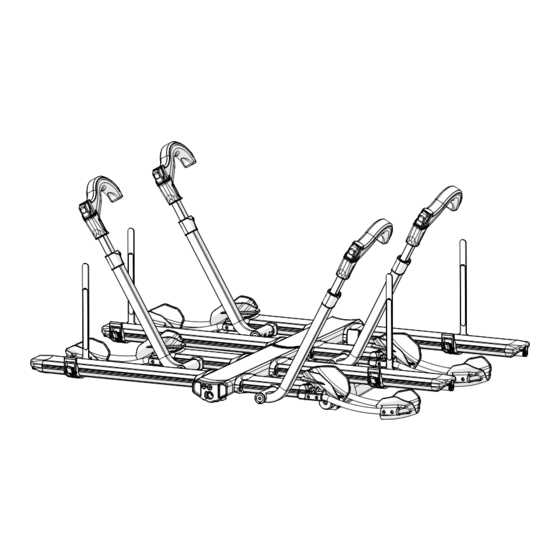

- Page 1 ADD-ON NV 2.0 ADD-ON TWO BIKE USER GUIDE...
- Page 2 Add-on Center Beam Outer Front Tire Tray Inner Front Tire Tray Outer Rear Tire Tray Inner Rear Tire Tray Included in the parts box: 8mm Allen Wrench 6mm Allen Wrench 3x M8x160 Bolts 4x M8 Nut Bottle Opener 2x Keys Bottle Opener 3x Keys Key-chain...
-
Page 3: Parts Needed
STEP 1. Align the trays with the holes on the center Align the trays with the holes on the beam by matching the coordinating labels. center-beam by matching the coordinating labels. Then alternate between bolts to tighten. Parts Needed: 4x M8 Nut 3x M8x160 Bolts The trays with the “..Küat..”... - Page 4 Remove the end cap from your NV 2.0. STEP 4. Connect the Add-On to the NV 2.0 while Connect the Add-on to the NV 2.0 while aligning the bolts with the threaded holes found in aligning the bolts with the threaded holes found in the the center beam on the NV 2.0 center beam on the NV.
- Page 5 STEP 4. Using an 8mm Allen wrench, alternate Using an 8mm allen wrench alternate tightening the bolts. tightening the bolts. Tighten the bolts and check bolt tightness periodically. STEP 5. Reattach the end cap to the rack. Reattach the end cap to the rack.
- Page 6 Using the NV 2.0 Bike Lock If your NV 2.0 uses the side-entry cable lock system, follow Section 1 to ensure proper lock mechanism usage. Side Entry If your NV 2.0 uses the rear-entry cable lock system, follow Section 2 to ensure proper lock mechanism usage. Rear Entry...
- Page 7 Section 1 Using the Side-Entry Lock System Pull the lock and cable out from the rear tire tray. NOTE: When re-inserting the lock cable into the rack there should be a positive engage between the cable and the magnet in the back of the tray. Loop the cable through the rear triangle and insert the lock tip into the lock found on the cable.
- Page 8 Section 2 Using the Rear-Entry NV 2.0 Lock Slide lock assembly out of tray until cable is fully extended. When near full extension cable will catch. Pull again to fully seat cable into lock. Slide dust cover forward to access lock key core.
- Page 9 • Do not take through automatic car wash. • Drive responsibly. If you have questions or problems, please contact Küat Racks directly by calling toll free 1(877)822-KUAT, or by email: info@kuatracks.com ADVERTENCIAS • Siga las instrucciones para un montaje, instalación y uso adecuados.
- Page 10 Küat Racks Limited Lifetime Warranty Küat honors the warranty on all Küat brand products for original owners of the product. Warranty is not transferable. If a Küat rack that is covered by the terms of this warranty and is determined by Küat, to be defective, Küat will repair or replace the defective parts.
- Page 11 Küat RV Compatibility Warning Küat’s receiver hitch-mounted bicycle racks may be used with some recreational vehicles (RVs) as described below. Many types of RVs subject the rack and bicycles on it to high forces and extreme movements. As a result, Küat does not recommend using our receiver hitch-mounted products on RVs that will likely expose the rack to unacceptable conditions.
- Page 12 1.877.822.5828 info@kuat.com kuat.com v.02 kuatracks.com info@kuatracks.com 1.877.822.5828...
