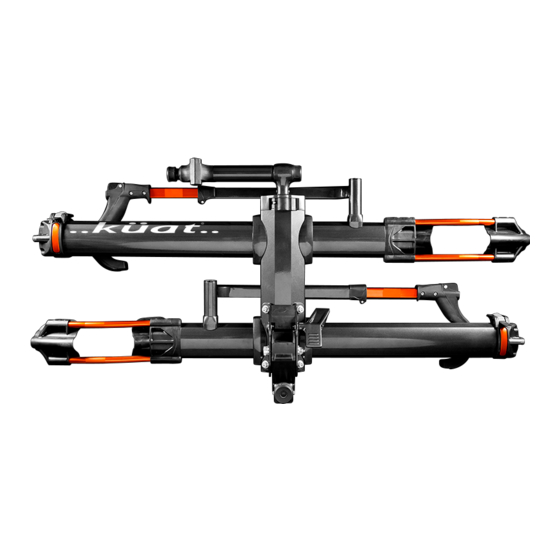

Summary of Contents for Kuat NV 2.0

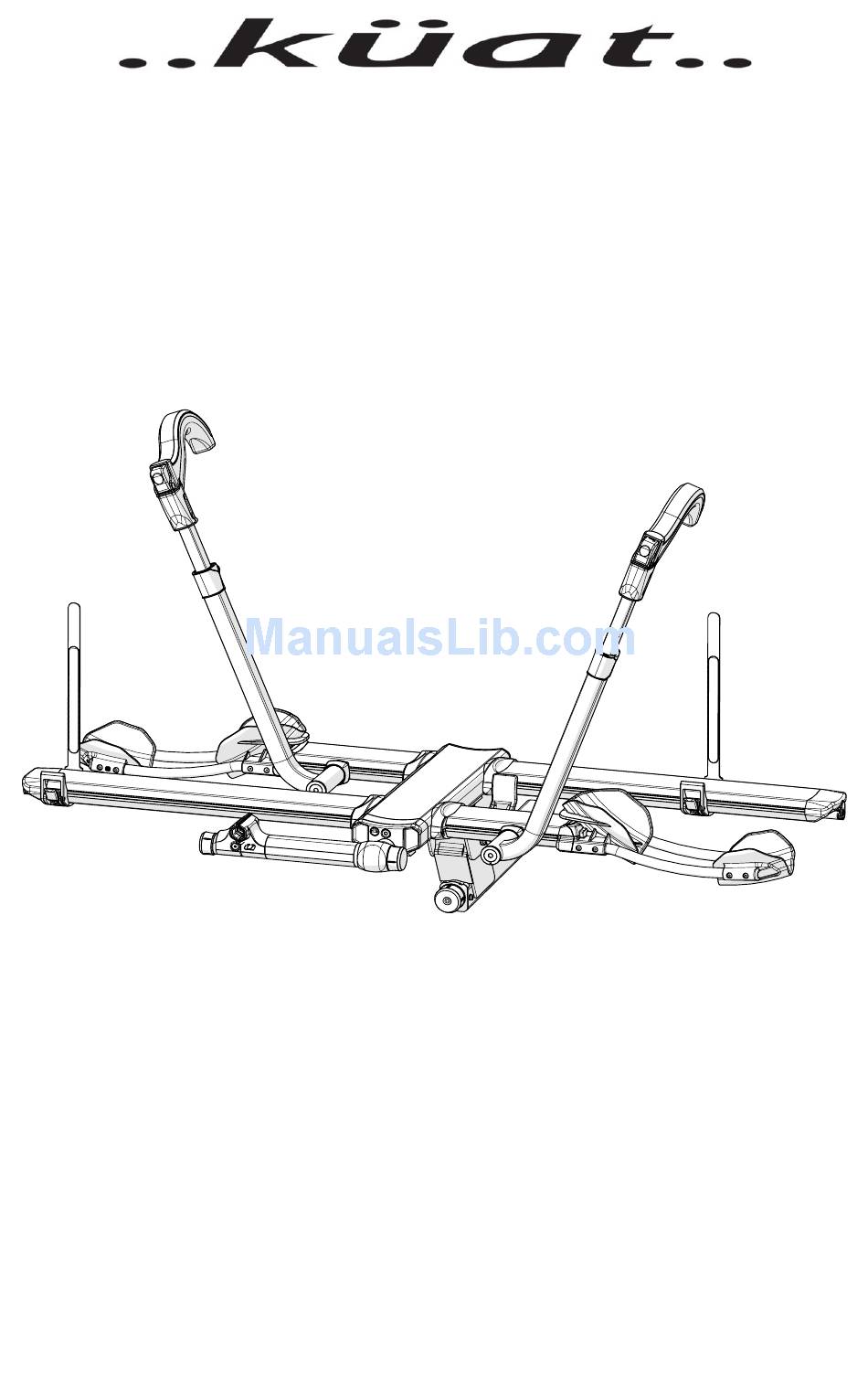

- Page 1 ™...
- Page 2 Parts: Outer Front Tire Tray Inner Front Tire Tray Outer Rear Tire Tray Inner Rear Tire Tray Trail Doc Clamp ™ Pivot Assembly Trail Doc Post ™ Included in the parts box: 6mm Allen Wrench M6 Lock Washer M6x22 Bolt 8mm Allen Wrench 4x M8 Nut 3x Keys...
- Page 3 STEP 1. Throw the end cap lever open to release the Trail Doc Post and pull the Trail Doc Post ™ ™ completely out from the rear of the center-beam. STEP 2. Insert rear end cap. Part Needed: Rear End Cap...
- Page 4 STEP 3. Align the trays with the holes on the cen- ter-beam by matching the coordinating labels. Then alternate between bolts to tighten. Parts Needed: 4x M8 Nut 3x M8x160 Bolts NOTE: The trays with the “..Küat..” Logo will be farthest from the hitch.
- Page 5 STEP 4. Press the pivot lever onto the corre- sponding keyed shaft. Then tighten the bolt with the lock washer to secure the pivot lever. Parts Needed: M6x22 Bolt Pivot Lever M6 Lock Washer NOTE: When positioning the pivot lever there should be about 1in(25.4mm) of space between the lever and the tray.
- Page 6 STEP 5. Thread the Trail Doc clamp onto the ™ Trail Doc post. ™ Parts Needed: Trail Doc Clamp Trail Doc Post ™ ™ STEP 6. Open the lever on the end cap and insert the Trail Doc ™. NOTE: Use the end cap plug to keep debris out when the Trail Doc is not installed.
- Page 7 STEP 7. Insert the rack into the hitch receiver and align the hitch pin holes, then insert the hitch pin and lock. Push or pull the rack in the hitch receiver to remove rattle caused by the hitch pin and turn the knob until tight.
- Page 8 Loading bicycles: STEP 1. Rotate the tire hook outward. Press the button and extend the hook. NOTE: When not in use keep the tire hook rotated inward to avoid damage. STEP 2. Set the bicycle on the rack and place the hook as close to the bicycle’s front fork as possible, then ratchet the hook down onto the tire.
- Page 9 NOTE: To adjust for bicycle fit issues loosen the front cradle bolt with an 8mm allen wrench (Do not fully remove the bolt). Once loose, move the cradle to one of three positions; up, center, or down. Tighten the bolt to secure the cradle in position. Failure to re-tighten bolt can lead to loss of bike.
- Page 10 STEP 4. Pull the lock and cable completely out from the rear tire tray. NOTE: When re-inserting the lock cable into the rack there should be a positive engage between the cable and the magnet in the back of the tray. STEP 5.
- Page 11 STEP 6. When adjusting the pivot position always support the end of the rack before engaging the pivot lever. This will assist with the release of the pivot lever and prevent the rack from falling. NOTE: The rack can tilt down for access to the rear hatch of the vehicle.
- Page 12 Operating the Trail Doc ™ STEP 1. Open the Trail Doc clamp by rotating the ™ knob counterclockwise until the clamp springs open. STEP 2. While holding the bicycle in place rotate the knob 1/4 of a turn clockwise, to engage the ratcheting mechanism, and close the clamp.
- Page 13 Additional Notes: NOTE: When loading bicycles with 20”-24” front tires an adapter must be used. 20”-24” Adapter Kit Tips and Tricks. • Periodically check all nuts and bolts for proper tightness, not doing so can lead to premature wear or rack failure. •...
- Page 14 Our “No Worries Warranty” has you covered like the poncho in your backpack or the winch on your bumper, there when you need it. The goal? To ensure your Kuat product performs as intended, over time, every time, for life.
Need help?
Do you have a question about the NV 2.0 and is the answer not in the manual?
Questions and answers

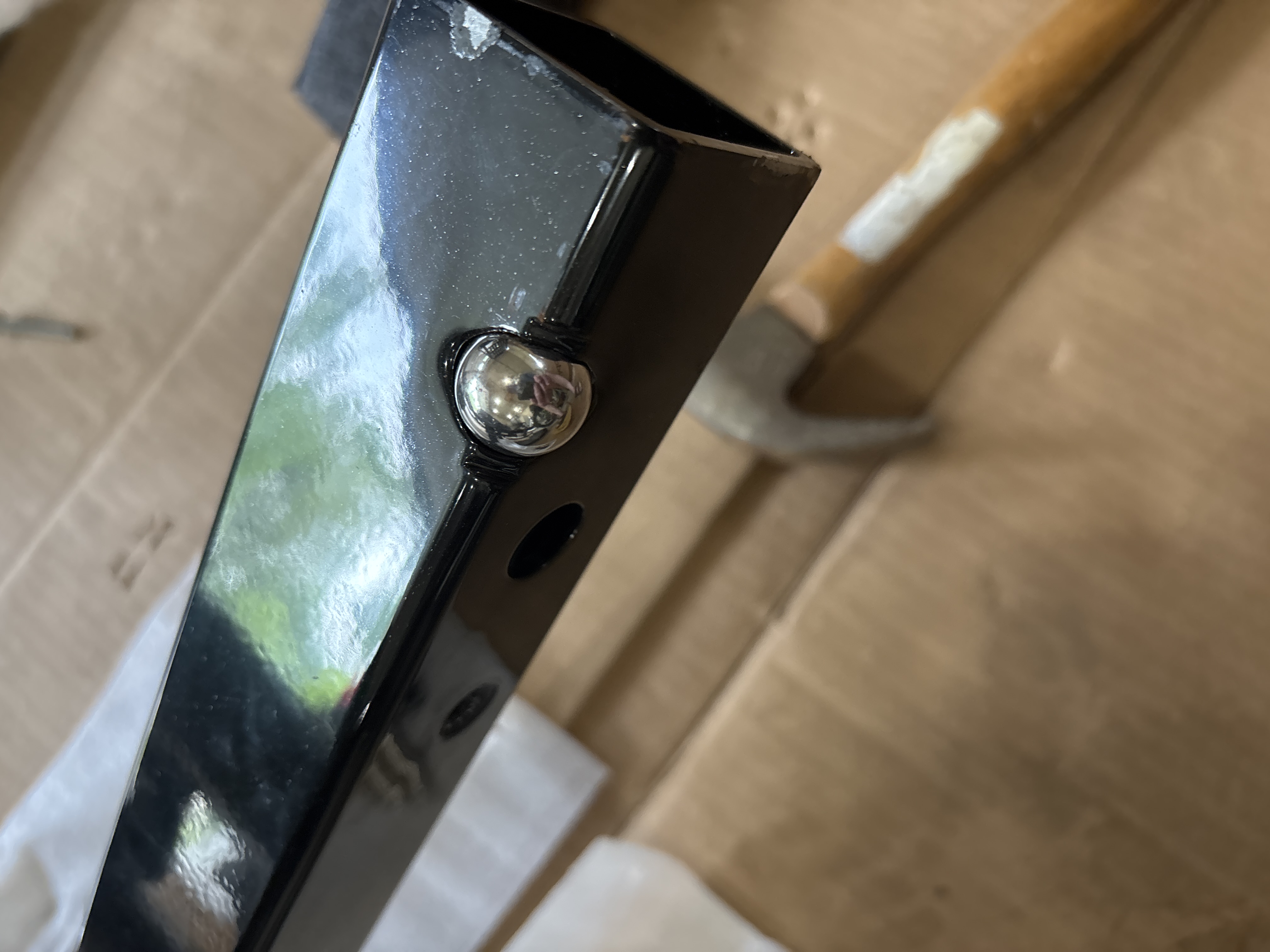

I’m trying to slip the rack into the receiver but the silver ball sticks out to far to slip rack into receiver
