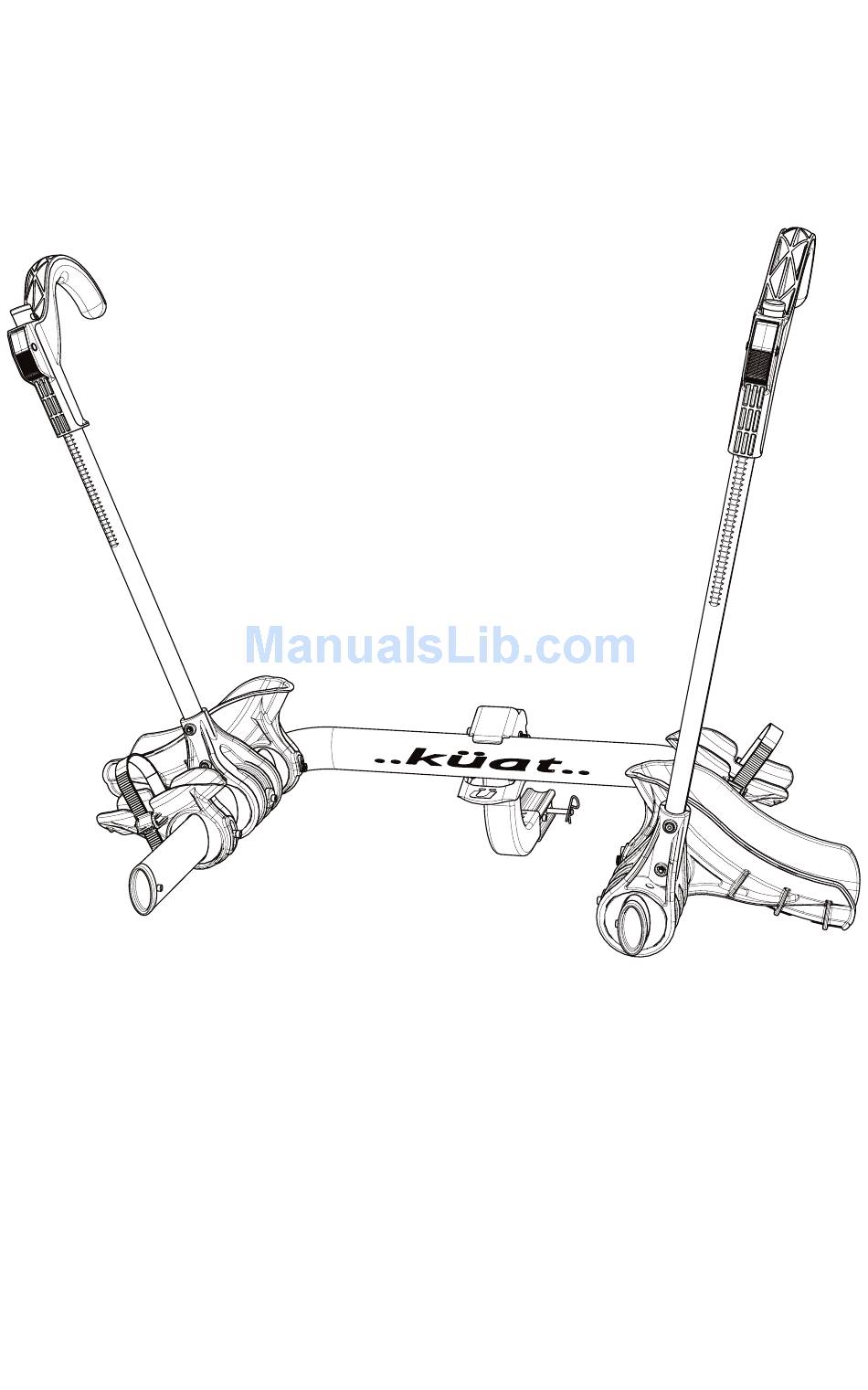

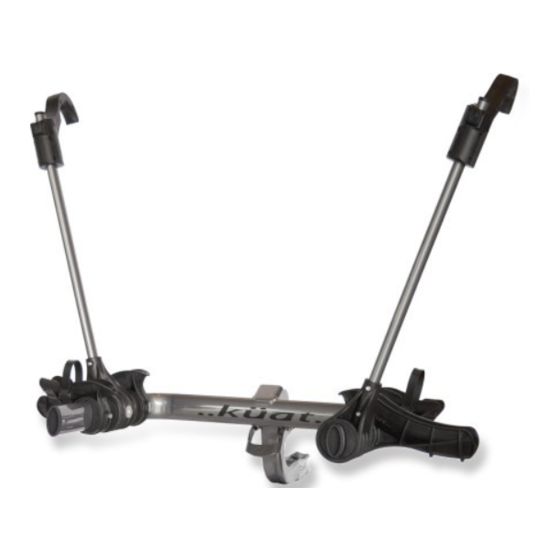

TRANSFER2
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Transfer2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kuat Transfer2

Summary of Contents for Kuat Transfer2

  • Page 1 TRANSFER2 USER GUIDE...

  • Page 2: Parts List

    PARTS LIST HARDWARE INCLUDED PARTS INCLUDED (1) Pivot Nut (1) Pivot Bolt (1) Pivot Washer (4) M6 x 90 (2) Front Tire Cradle (2) Plate (2) Locator Tab Bolt (2) Spacer (4) M6 x 60 (4) M6 Nut (2) Rear Tire Cradle (4) M6 x 60 Low Profile (2) M5 Nut (2) M5 x 30...

  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Front Tire Cradle Locator Tab Bolt Slide front tire cradle into position. Install bolt with locator tab as shown. Reference page information on locator tab functionality.
  • Page 4 Rear Tire Cradle M6 x 90 Spacer Slide rear tire cradle into position. Secure with bolt and spacer.
  • Page 5 Arm Puck M6 x 60 Slide arm puck into position with the pre-installed nuts facing out. Install screws.
  • Page 6 Arm Ratchet Tube Arm Knuckle Ratchet Handle M6 x 60 Low Profile M6 Nut Assemble tire hook arm. NOTE: Use arm without Küat logo.
  • Page 7 Assembled Arm M6 x 90 Plate Slide tire hook arm onto puck. Install arm tensioner plate and bolt.
  • Page 8 Front Tire Cradle Locator Tab Bolt Slide front tire cradle into position. Install bolt with locator tab as shown. Reference page information on locator tab functionality.
  • Page 9 Rear Tire Cradle M6 x 90 Spacer Slide rear tire cradle into position. Secure with bolt and spacer.
  • Page 10 Arm Puck M6 x 60 Slide arm puck into position with the pre-installed nuts facing out. Install screws.
  • Page 11 Arm Ratchet Tube Arm Knuckle Ratchet Handle M6 x 60 Low Profile M6 Nut Assemble tire hook arm. NOTE: Use arm with Küat logo.
  • Page 12 M6 x 90 Plate Slide tire hook arm onto puck. Install arm tensioner plate and bolt.
  • Page 13 M5 x 30 M5 Nut Place nuts into caps, insert caps, attach with screws.
  • Page 14 Pivot Bolt Pivot Nut Pivot Washer Hitch Shank Install hitch shank with pivot bolt, washer and nut. Remove stretch wrap. DO NOT TIGHTEN PEDAL BOLTS Thread tire strap through both ratchets. Open side should face end caps. Tire strap...
  • Page 15 Hitch Bolt Lock Washer Washer Cotter Pin Insert rack into hitch. For 1-1/4” hitches remove 2” hitch adapter by removing 6mm socket bolt. Thread the hitch bolt with washers into the hitch, secure bolt with cotter pin. Tigthen with 8mm allen or 9mm box wrench.

  • Page 16: Using The Rack

    USING THE RACK BEFORE ATTEMPTING TO LOAD A BICYCLE CHECK: • The rack is secured to the hitch. • The pivot lever is fully engaged in position. STEP 2 Adjust rear tire cradle position to fit bicycle. Tighten tire strap evenly.
  • Page 17 STEP 1 Place tire hook as close as possible to fork and then ratchet the tire hook down tightly to the tire.
  • Page 18 The front tire cradle bolts locator tab can be flipped upside- down to adjust the pitch of the bike for a better fit or to eliminate interference between multiple bikes. The Transfer rack pivots upward for travel and pivots down to allow trunk or hatch access.
  • Page 19 ACCESSORIES kuatparts.com/transfer Phat Bike Kit Product #APBK • For use with 2.75-4.25” width tires • Compatible with the Transfer and NV racks Lock Kit Product #ATSCLK12 TRANSFER2 Kit Product #ATSCLK13 TRANSFER3 Kit • Kit includes hitch lock and cable locks...
  • Page 20 1.877.822.5828 info@kuatracks.com KUATRACKS.COM...
