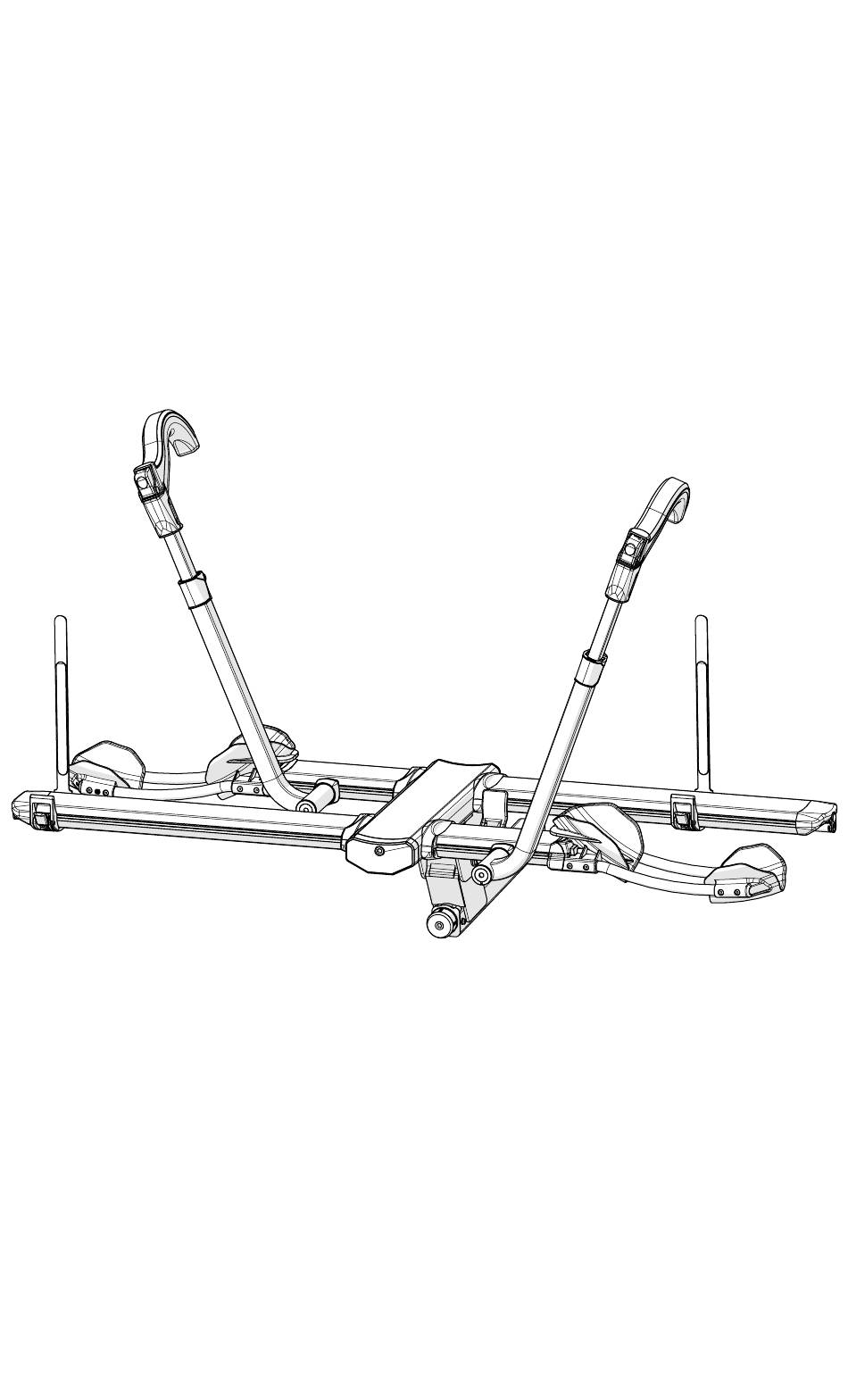

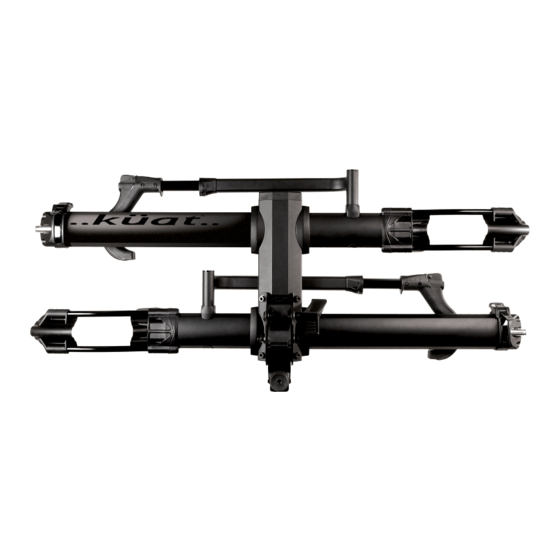

- Page 1 NV BASE ™ NV BASE USER GUIDE...
- Page 2 Parts: Pivot Assembly Outer Rear Tire Tray Inner Rear Tire Tray Outer Front Tire Tray Inner Front Tire Tray...
- Page 3 Included in the parts box: 6mm Allen Wrench M8 Lock Washer M8x45 Bolt 8mm Allen Wrench 4x M8 Nut 3x Keys 2x Keys 3x M8x160 Bolts Bottle Opener Bottle Opener Rear End Cap Key-chain Keychain Hitch Pin and Lock Hitch Pin and Lock Pivot Lever STEP 1.
-
Page 4: Parts Needed
STEP 2. STEP 1. Align the trays with the holes on the center Align the trays with the holes on the cen- beam by matching the coordinating labels. ter-beam by matching the coordinating labels. Then Alternate between bolts to tighten. alternate between bolts to tighten. - Page 5 STEP 3. Press the pivot lever onto the corresponding keyed shaft. Then tighten the bolt with the lock washer to secure the pivot lever. Parts Needed: M8x45 Bolt Pivot Lever M8 Lock Washer NOTE. NOTE: When positioning the When positioning the pivot lever there should be about pivot lever there should be about 1in (25.4mm) of space between...
- Page 6 Section 2 Using the Rear Entry NV Base 2.0 Hitch Lock Insert NV 2.0 into hitch aligning hitch pin holes. Slide hitch pin through hitch, NV Base 2.0, and into new hitch lock. Remove dust cover access lock key core and lock hitch pin.
- Page 7 Loading bicycles: STEP 1. Rotate the tire hook outward. Press the button and extend the hook. NOTE: When not in use keep the tire hook rotated inward to avoid damage. STEP 2. Set the bicycle on the rack and place the hook as close to the bicycle’s front fork as possible, then ratchet the hook down onto the tire.
- Page 8 NOTE. NOTE: To adjust for bicycle fit issues, loosen the front cradle bolt with an 8mm Allen wrench (Do not front cradle bolt with an 8mm allen wrench (Do not fully remove the bolt). Once loose, move the cradle fully remove the bolt). Once loose, move the cradle to to one of three positions;...
-
Page 9: Additional Notes
When loading bicycles with 20”-24” front tires an adapter must be used. Please contact Küat tires an adapter must be used. Please contact Kuat Racks directly by calling toll free 1(877) 822-5828, or Racks directly by calling toll free 1(877)822-5828, or by emailing us at info@kuatracks.com and a 20”-24”... - Page 10 • Do not take through automatic car wash. • Drive responsibly. If you have questions or problems, please contact Küat Racks directly by calling toll free 1(877)822-KUAT, or by email: info@kuatracks.com ADVERTENCIAS • Siga las instrucciones para un montaje, instalación y uso adecuados.
- Page 11 Küat Racks Limited Lifetime Warranty Küat honors the warranty on all Küat brand products for original owners of the product. Warranty is not transferable. If a Küat rack that is covered by the terms of this warranty and is determined by Küat, to be defective, Küat will repair or replace the defective parts.
- Page 12 kuatracks.com info@kuatracks.com 1.877.822.5828...
- Page 13 Slide lock assembly out of tray until cable is fully extended. When near full extension cable will catch. Pull again to fully seat cable into lock. Slide dust cover forward to access lock key core. Feed cable through rear triangle of the bike and secure cable tip into the lock port.
- Page 14 STEP 6. When adjusting the pivot position always support the end of the rack before engaging the pivot lever. This will assist with the release of the pivot lever and prevent the rack from falling. NOTE: The rack can tilt down for access to the rear hatch of the vehicle.
