Blind control system

Solar/twilight sensor, outdoor

Order-No. : 1117 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

These instructions are an integral part of the product, and must remain with the end

customer.

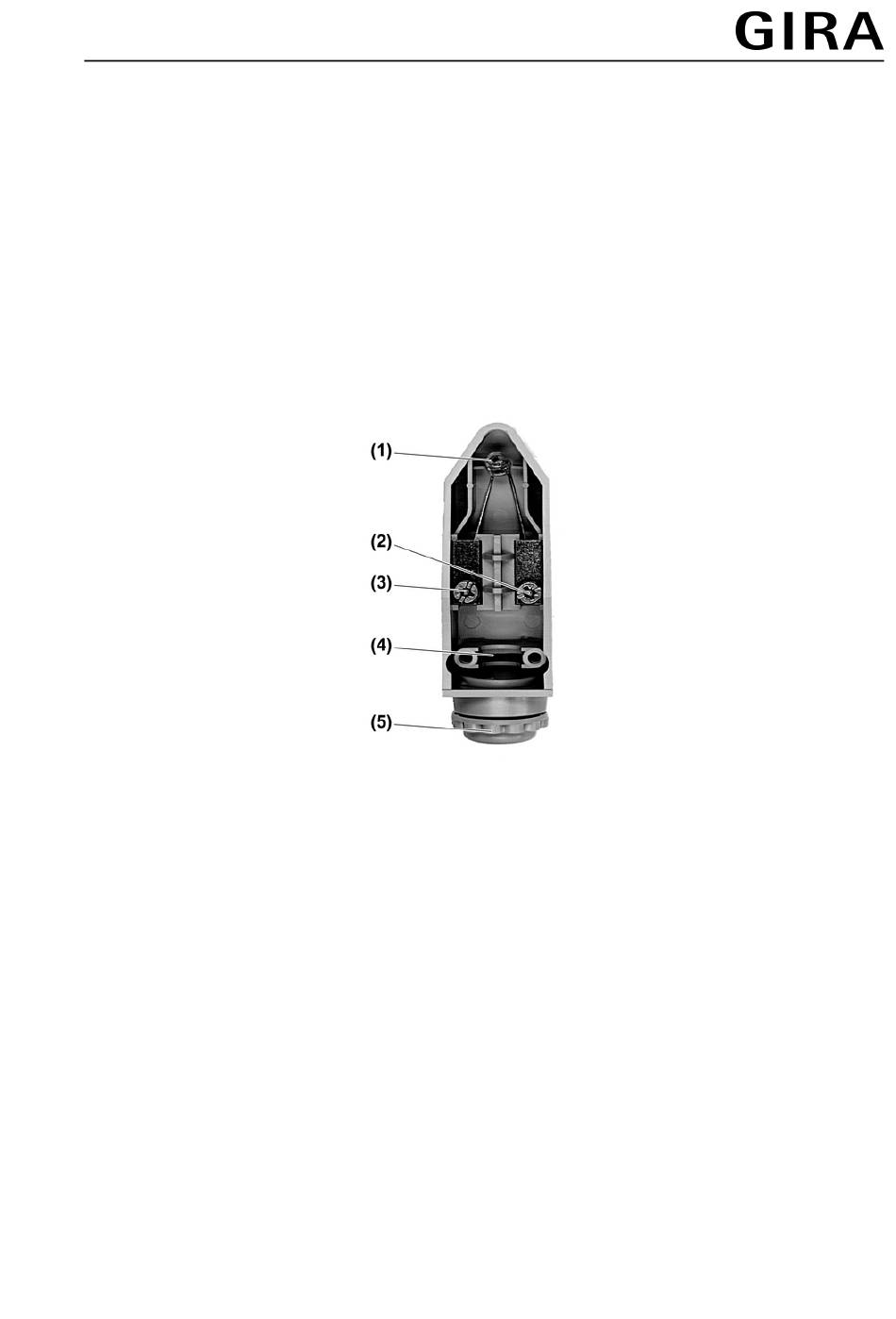

(1) Photodiode

(2) Sun connection terminal

(3) Earth connection terminal

(4) Fastening for strain relief

(5) Sensor cable entry

Intended use

Sensor for brightness detection. Provides a sun protection or twilight function in connection

with covers of the blind system.

Surface-mounted device for outdoor installation.

82534112

Figure 1: Sun sensor front view

17.05.2011

1/4
