2. Front Panel

Menu
select
PHONES
ESCAPE
STANDBY
OFF
1 2 3 4 5 6

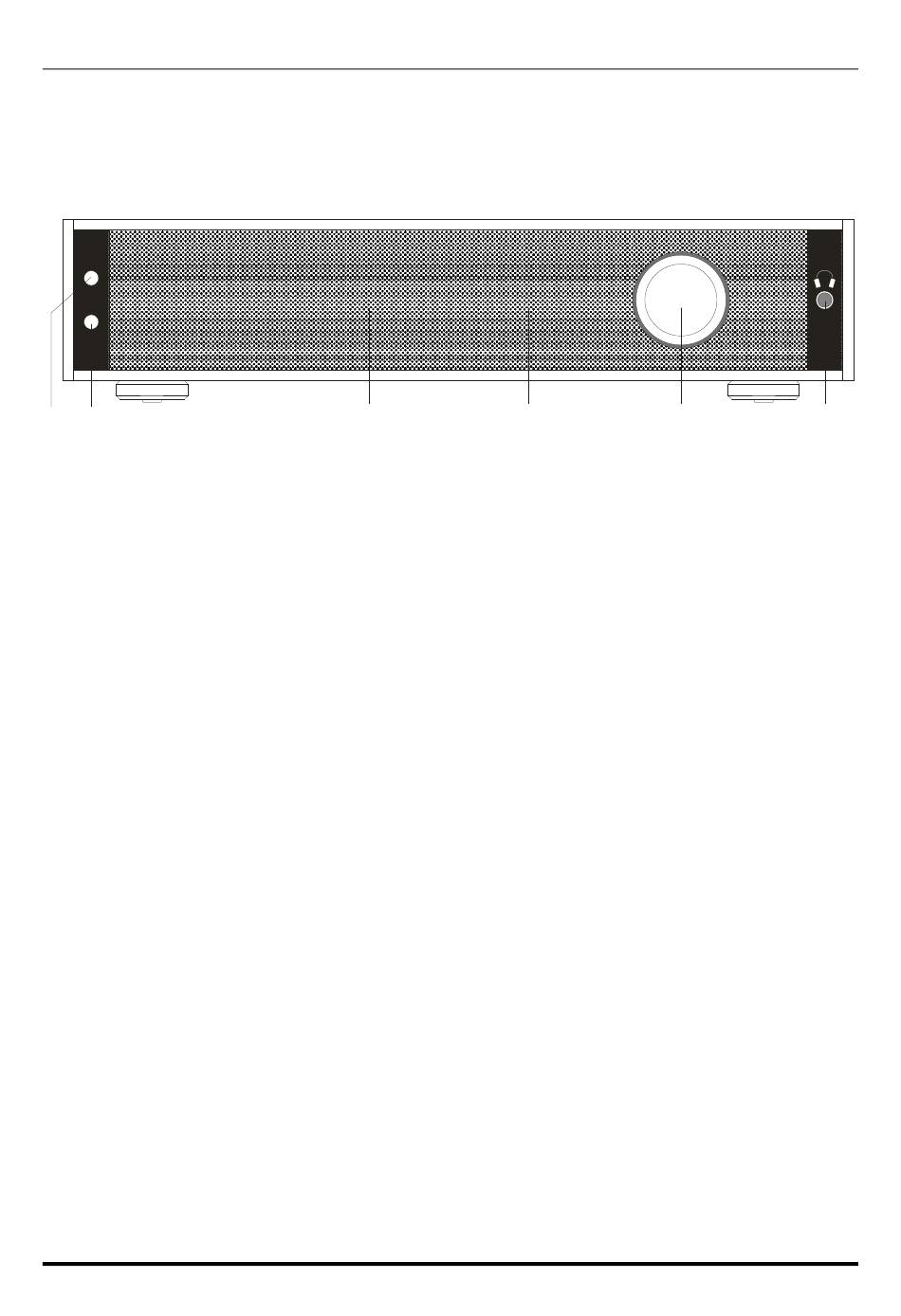

Figure 1
1) Menu/select button. It is used to access the menu and to select a menu option.
2) Escape/standby/off button. It is used to abort a choice in the menu, to put the unit in
standby and to switch the unit off.
3) Left display. Displays the selected input or the menu item.
4) Right display. Displays sampling frequency or the value for the menu item.
5) Encoder. It is used to set the volume or to scan through menu items values.
6) Headphones output. Connect a headphone jack to this output. 6.35mm (1/4") stereo
socket.
