BACnet Server – Modbus Client

7.2.3 Configuration tab

Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in this
window: General (Gateway general parameters), BACnet Server (BACnet interface configuration) and Modbus
Master (Modbus interface parameters).

7.2.4 Signals

All available objects, Object Instances, its corresponding Modbus register and other main parmaters are listed in the
signals tab. More information on each parameter and how to configure it can be found in the Intesis MAPS user
manual.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice

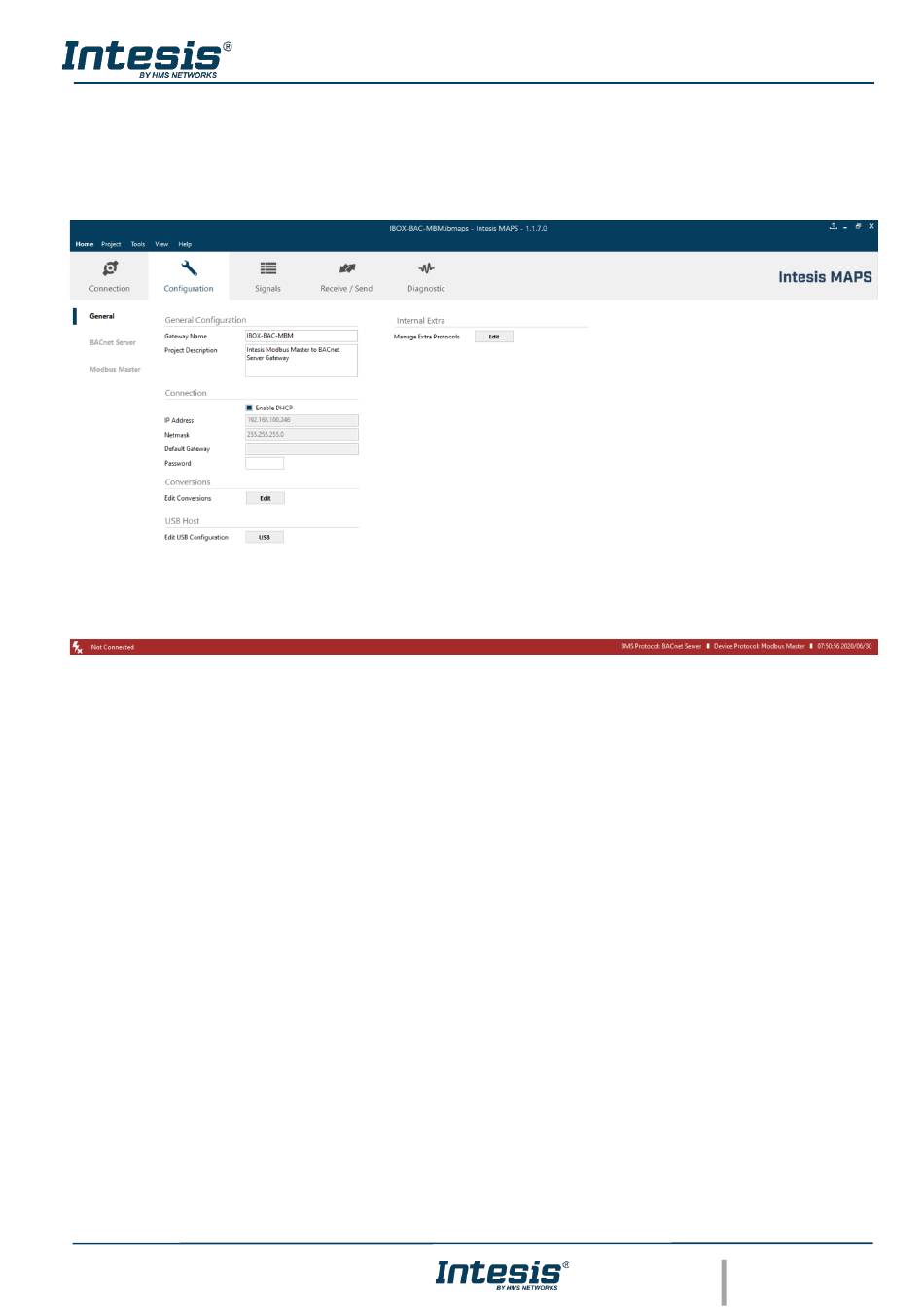

Figure 8.2 Intesis MAPS configuration tab
