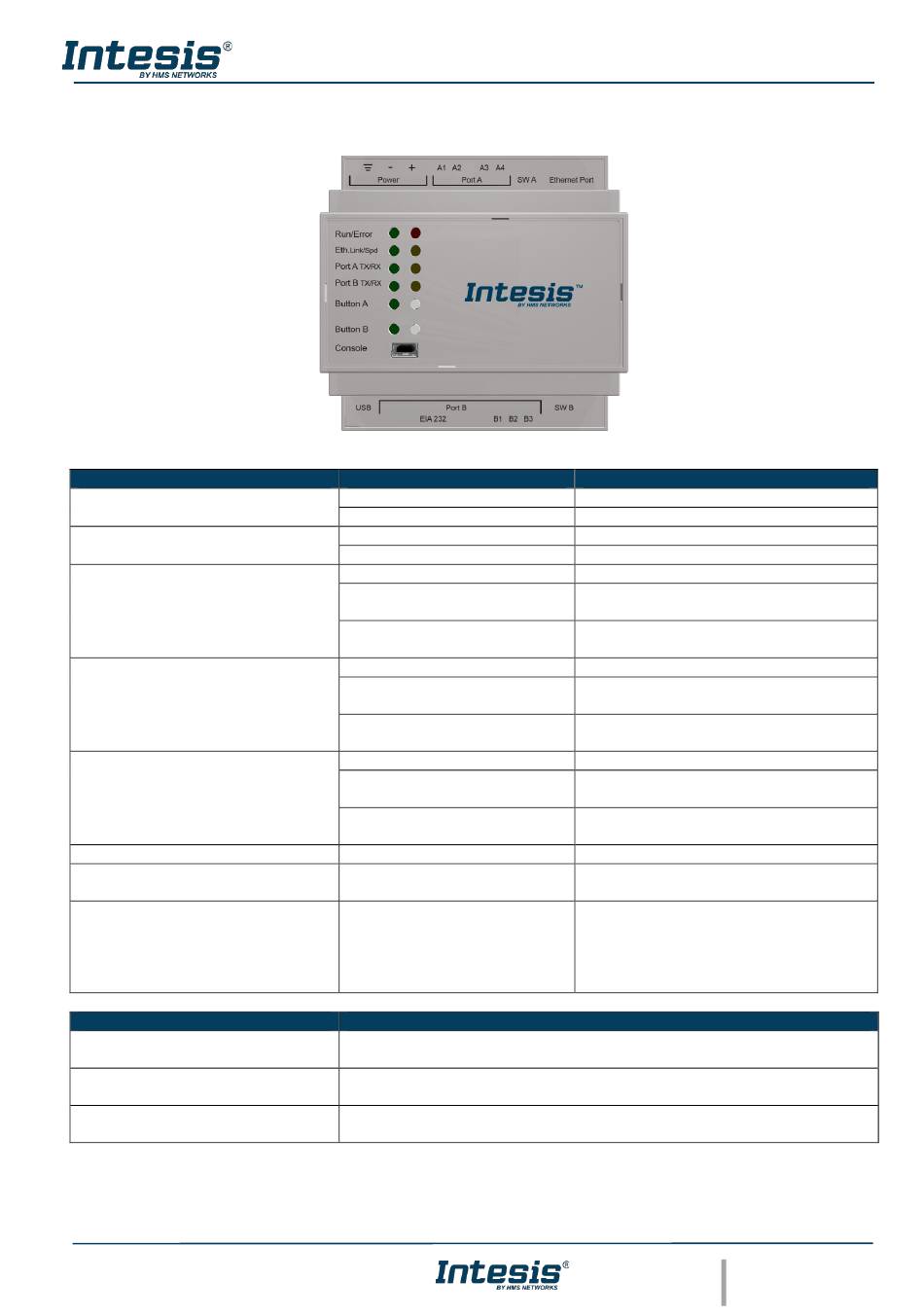

7 Status LEDs and push buttons

LED
Run
Error
Port A (Tx/Rx) – Modbus RTU
Port B (Tx/Rx) – Modbus RTU
(Using BACnet/IP protocol)
Port B (Tx/Rx) – BACnet
(Using BACnet/MSTP protocol)
Button A – Modbus RTU
Button B – Modbus RTU
(Using BACnet/IP protocol)
Button B – BACnet
(Using BACnet/MSTP protocol)
Push button
Button A – Modbus RTU
Button B – Modbus RTU
(Using BACnet/IP protocol)
Button B – BACnet
(Using BACnet/MSTP protocol)
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Colour
Off
Green
Off
Red
Off
Tx - Blinking green
Rx – Blinking yellow
Off
Tx - Blinking green
Rx – Blinking yellow
Off
Tx - Blinking green
Rx – Blinking yellow
Off / Red
Off / Red
Off / Red
Functionality
It doesn't have any functionality to start with but It can be configured from
Intesis MAPS software under configuration/USB host
It doesn't have any functionality to start with but It can be configured from
Intesis MAPS software under configuration/USB host
Sends to Broadcast I-Am message
User Manual r1.10 eng
Indication
No power
Device powered and working.
No error
Error
There is no activity on this port.
Every data packet sent to the network it
blinks
Every data packet received from a slave
device it blinks
There is no activity on this port.
Every data packet sent to the network it
blinks
Every data packet received from a slave
device it blinks
There is no activity on this port.
Every data packet sent to the network it
blinks
Every data packet received from a slave
device it blinks
It doen't have any functionality
It doen't have any functionality
On when link is detected:
- BACnetIP: ethernet is up & running,
the IBOX got an IP
- BACnetMSTP: token passing is
detected
