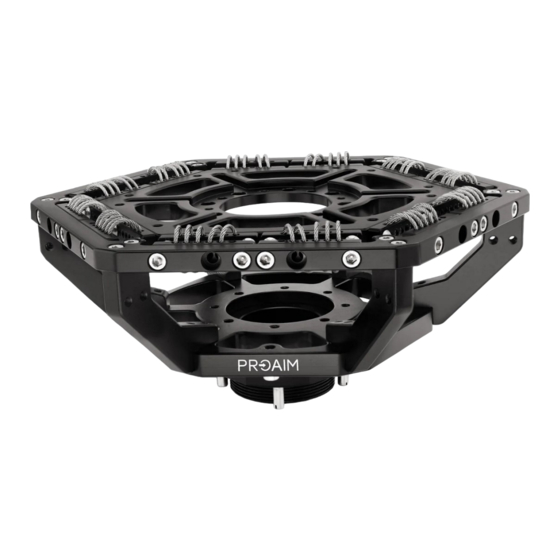

Glide 4-dimensional vibration isolator
Hide thumbs

Advertisement

Table of Contents

1
Glide 4-Dimensional Vibration Isolator
(VI-GLDE-01)
A s s e m b l y M a n u a l

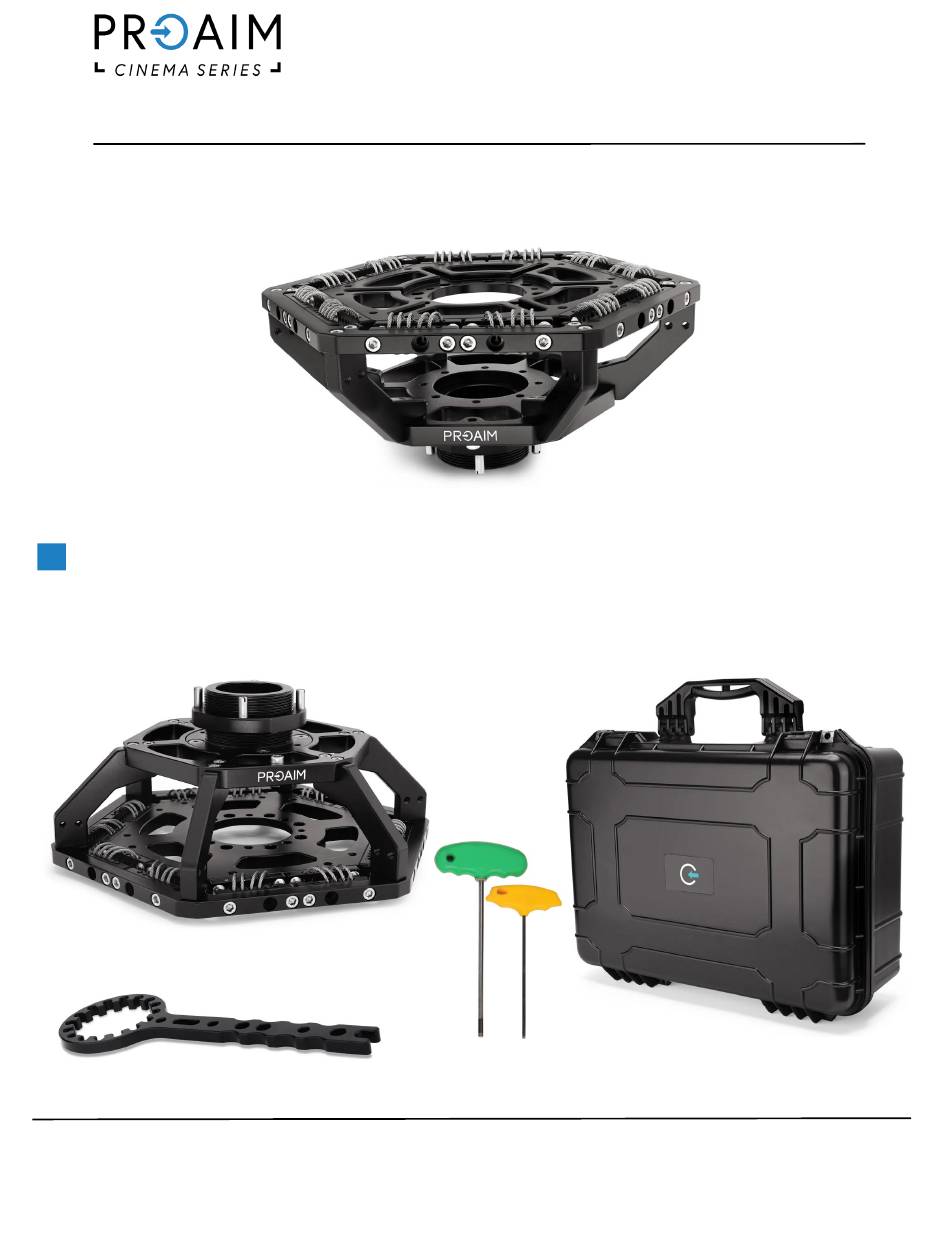

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Proaim Glide Vibration Isolator
Hard Case
2 x T– Type Allen Key
(3/16mm, 3mm)
Castle Nut Wrench
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VI-GLDE-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM VI-GLDE-01

Summary of Contents for PROAIM VI-GLDE-01

  • Page 1 A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Proaim Glide Vibration Isolator Hard Case 2 x T– Type Allen Key (3/16mm, 3mm) Castle Nut Wrench All rights reserved.
  • Page 2 Glide Vibration Isolator Setup  Loosen the Castle ring of the Glide Vibration Isolator with a Castle nut wrench and remove  Then, attach the Glide Vibration Isolator to the arm.  Tighten the castle ring properly with the help of a castle nut wrench.
  • Page 3 Gimbal Mitchell Plate with Castle Lock Mount For Freefly Movi  Loosen and remove the castle ring from the Gimbal Mitchell plate (Not Included).  Then, remove the Mitchell Plate bolts with the help of an Allen key.  Separate the Mitchell plate from the Castle nut and attach it to the Freefly Movi bottom mounting.
  • Page 4  After attaching the Mitchell Plate and the bottom part Freefly Movi (Not Included), match the center hole of the Glide Vibration Isolator and then insert it, as shown in the image.  Attach Gimbal Mitchell Plate (Not Included) to the Vibration Isolator and then manually attach the Castle Nut.
  • Page 5  Gimbal (Not Included) has been properly attached to the Vibration Isolator. Vibration Isolator Setup  Remove the bolt of the Vibration Isolator using the 3/16mm Allen Key.  Then remove the Vibration Isolator with the help of a 3mm Allen key. ...
  • Page 6  Attach the Mitchell Mounting Plate to the Vibration Isolator and properly tighten it using 3/16mm Allen Key. NOTE: The Proaim Glide Shock Absorbing System offers a 5-50 kg / 11-110 heavy payload capacity. CHANGEABLE WIRE BRACKETS NOTE: It has two strategically configured Wire Brackets to support the gimbal & absorb inertial movements.
  • Page 7 YOUR PROAIM GLIDE 4-DIMENSIONAL VIBRATION ISOLATOR ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
