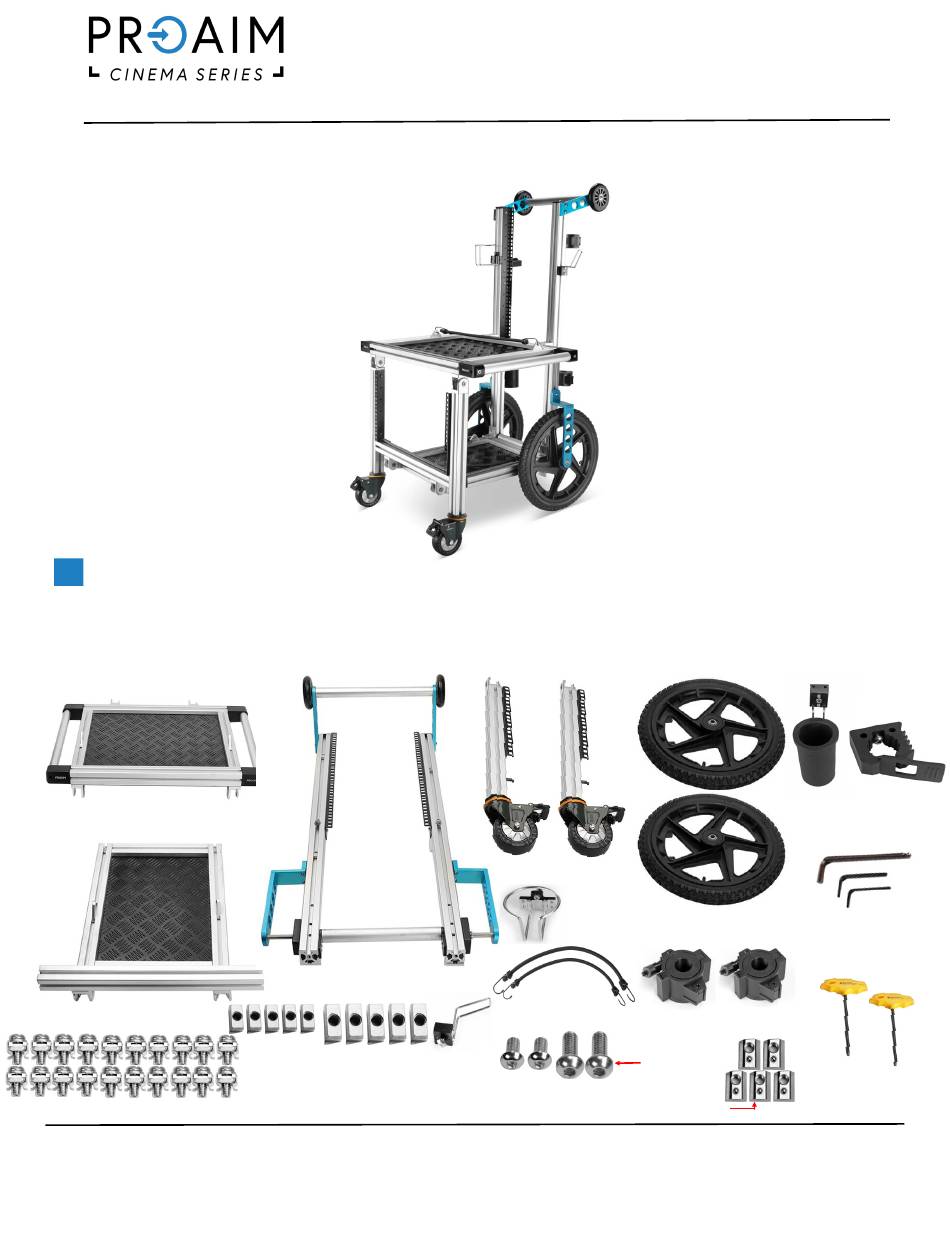

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Top Shelf
Bottom Shelf
20x6mm Nuts with Bolts
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Soundchief V1 Channel Cart - For Sound/Video
Recording & Production
A s s e m b l y M a n u a l
Slider Channel
5x6mm
5x1/4"
Headphone
T Nuts
T Nuts
Holder
All rights reserved.
statutes or in writing by the Publisher.
(CT-CV3-PRO)
2 x Wheel Leg
16" Wheels
Cup Holder
2 x Safety Hook
2 x Antenna Holder
8x20mm
Button Head
8x16mm
Button Head
5x8mm T Nuts
1
Boom Pole Kit
(4mm, 3/16mm, 5/16mm)
3 x Allen Keys
(5mm, 6mm)
2 x Allen Keys
