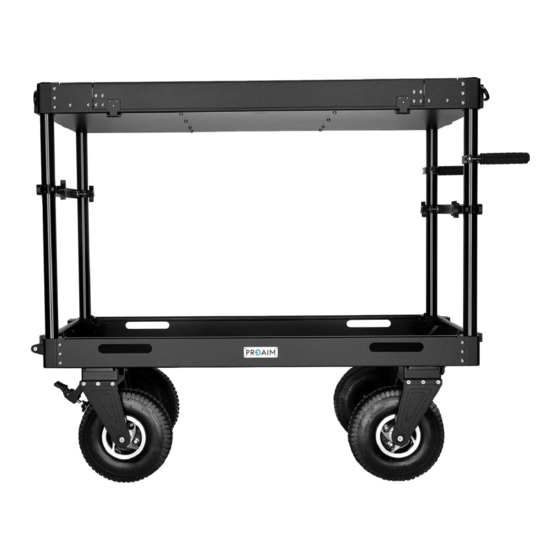

Victor Pro Video Production Camera Cart
(CT-VCTR-PRO-48)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Top Shelf
Lower Shelf
2 x Hinge Handle
2 x Crossbars
4 x Knobs
Allen key L– Type, 4 x Screws
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM Victor Pro
Summary of Contents for PROAIM Victor Pro
- Page 1 Victor Pro Video Production Camera Cart (CT-VCTR-PRO-48) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 2 x Pneumatic Tires Without Break With Packing Pouch Break With Packing Pouch 4 x (31” Length) Rods With Packing Victor Pro Camera Cart Setup NOTE: Two peoples are needed to assemble the cart. • Open all the 4 locks which are on both sides end of the cart.
- Page 3 • Attach the unlocked tire (With break) on lower shelf’s dovetail bracket by sliding on it as shown in the image. • Flip the knobs to secure the attached tire As shown in image. • The cart would look like this after attaching both the tires (With break).
- Page 4 • Loose all the 4 knobs of lower shelf’s corner hole and insert rod into it, as shown in image. • Tighten all the knobs provided at each corner of the lower cart. So that all the rods are properly attached to the cart as shown in the image.
- Page 5 • Follow same steps for all screws to check whether they are properly set. Upper Shelf • Now mount the upper shelf on the top of the rods by aligning it in the corners. • Tighten all the 4 corner knobs of upper shelf so that upper shelf doesn't fall down.
- Page 6 • The crossbar would look like this after attaching both clamps, as shown in image. Hinge Handle • Loosen the handle to open clamp of hinge handle. • Place handle clamp on the rod and adjust the hinge handle accordingly. •...
- Page 7 • The cart would look like this after following all the steps correctly. YOUR PROAIM VICTOR PRO VIDEO PRODUCTION CAMERA CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
