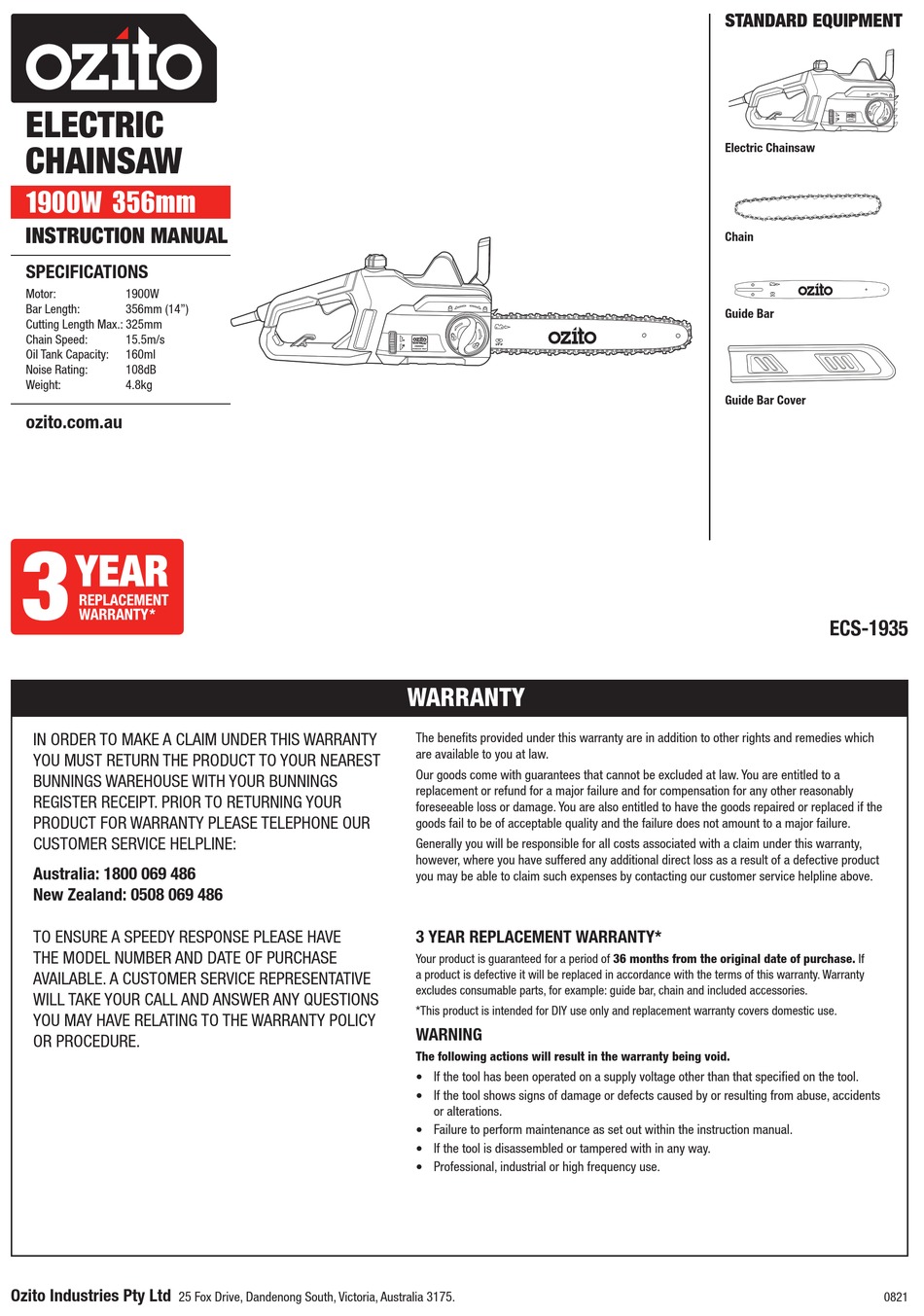

ELECTRIC
CHAINSAW
1900W 356mm
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
1900W
Bar Length:
356mm (14")
Cutting Length Max.: 325mm
Chain Speed:
15.5m/s
Oil Tank Capacity:
160ml
Noise Rating:
108dB
Weight:
4.8kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
Ozito Industries Pty Ltd
25 Fox Drive, Dandenong South, Victoria, Australia 3175.
52
3/8" LP
WARRANTY
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: guide bar, chain and included accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT
Electric Chainsaw
Chain
52
3/8" LP
Guide Bar
52
3/8" LP
52
3/8" LP
Guide Bar Cover
ECS-1935
0821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECS-1935 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito ECS-1935

  • Page 1 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. Ozito Industries Pty Ltd 25 Fox Drive, Dandenong South, Victoria, Australia 3175. 0821...
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT ASSEMBLY ELECTRIC CHAINSAW 1. GUIDE BAR & CHAIN 1. Power cord 10. Guide bar 2. Cord retainer 11. Chain 3. Oil level window 12. Lock-off switch WARNING! ENSURE THE TOOL IS TURNED OFF AND 4. Oil tank cap 13.
  • Page 3: Setup & Preparation

    SETUP & PREPARATION 2. CHAIN TENSION 3. LUBRICATION 3/8” LP 3/8” LP WARNING! ONLY USE OIL THAT IS EXPRESSLY WARNING! ENSURE THE TOOL IS TURNED OFF AND LABELLED “CHAIN BAR OIL” DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS. Filling with Oil Tensioning the Chain Use a funnel (not supplied) and fill the tank slowly to prevent spilling the...
  • Page 4: Operation

    OPERATION 4. CORD RETAINER 5. CHAIN BRAKE The cord retainer is used to “anchor” an extension lead (not included) The chain brake operates automatically in the event of when it is connected to the power cord of the tool. It prevents the BRAKE IS ON kick back.
  • Page 5: Switching On/Off

    INADVERTENTLY STARTING THE CHAINSAW. uncontrollably, it goes over your right shoulder, never stand in the cutting line of the saw. – Keep a firm grip with your left hand on the front handle, with your thumb securely below the handle. ECS-1935...
  • Page 6: Cutting Applications

    APPLICATIONS Pruning 8. CUTTING APPLICATIONS WARNING! DO NOT USE AN UNSTABLE FOOT-HOLD OR LADDER. DO NOT OVERREACH. DO NOT SAW ABOVE SHOULDER HEIGHT. ALWAYS USE BOTH HANDS TO HOLD WARNING! KICKBACK MAY OCCUR WHEN THE NOSE THE SAW. FIRST CUT UP FROM THE BOTTOM AND FINISH OR TIP OF THE GUIDE BAR TOUCHES AN OBJECT, OR DOWN FROM THE TOP.
  • Page 7: Troubleshooting

    Ozito Industries will not be responsible for any damage or injuries caused by Power extension Check the cable and 30º repair of the tool by an unauthorised person or mishandling or mistreatment...
  • Page 8: Electrical Safety

    ELECTRICAL SAFETY WARNING! If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard. When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use...
