Ozito CSE-355 Instruction Manual

Ozito CSE-355 Instruction Manual

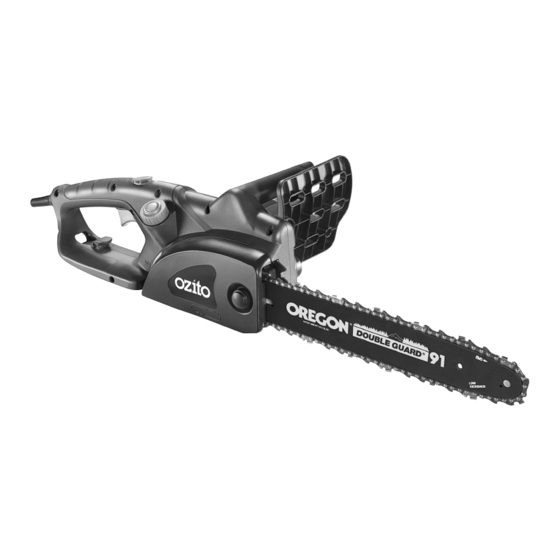

Electric chainsaw 1800w

Advertisement

Electric
Chainsaw
1800W
Instruction Manual
2 Year Replacement Warranty
CSE-355
CAUTION: Read this instruction manual before using this tool.
1010
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSE-355 and is the answer not in the manual?

Questions and answers

Malcolm
April 28, 2025

my ozito cse 355 chainsaw oil tank is leaking badly when i fill the tank the oil immediately runs out inside the casing.

1 comments:
Mr. Anderson
May 15, 2025

The oil tank on the Ozito CSE-355 chainsaw could be leaking due to the following reasons:

1. The chain oiling filler cap (10) may not be properly tightened or could be damaged, allowing oil to escape.
2. Dirt or debris may have entered the oil tank during filling, preventing a proper seal.
3. The oil tank may be overfilled, leading to leakage.
4. There could be a crack or damage in the oil tank or oil lines.

Proper care during filling and regular inspection can help prevent leaks.

This answer is automatically generated

Col Ellis
March 16, 2025

How to put the chain on and adjust

1 comments:
Mr. Anderson
March 16, 2025

To put the chain on and adjust the Ozito CSE-355:

1. Remove the bar securing nut (8) and the side panel (9).
2. Fit the chain (6) over the guide bar (7), ensuring the cutters face the direction of rotation.
3. Place the guide bar (7) and chain (6) onto the chainsaw, ensuring the chain is around the sprocket wheel (B).
4. Adjust the chain tensioning screw (C) using the flat end of the spanner/chain tension adjustor (14) until the bolt (A) fits into the hole in the guide bar (7).
5. Reattach the side panel (9) and replace the bar securing nut (8), tightening it finger tight only.
6. Adjust the chain tension using the chain tensioning screw (C) until the chain can be pulled 3mm away from the guide bar (7) with your finger and thumb.
7. Finally, tighten the bar securing nut (8) using the spanner/chain tension adjustor (14).

This answer is automatically generated

YAPING XU
March 8, 2025

There were some smoke and fire spray out from the motor

1 comments:
Mr. Anderson
March 8, 2025

If your Ozito CSE-355 is smoking and spraying fire from the motor, the carbon brushes may be worn out. When the brushes wear out, the chainsaw may spark or stop working. You should stop using the chainsaw immediately and contact Ozito customer service for replacement brushes. Always replace both brushes at the same time.

This answer is automatically generated

YAPING XU
March 8, 2025

How to replace the chainsaw motor

Summary of Contents for Ozito CSE-355

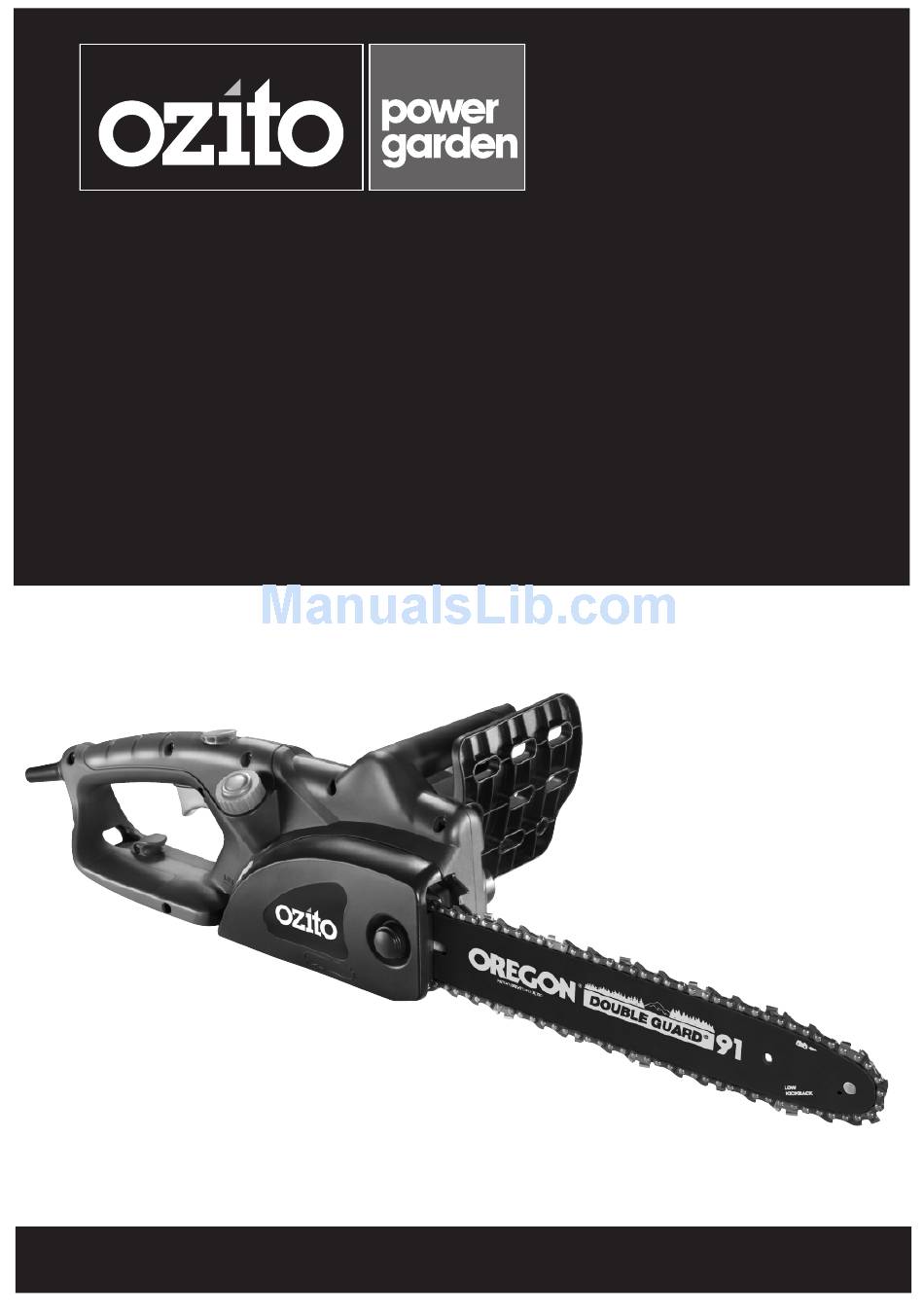

  • Page 1 Electric Chainsaw 1800W Instruction Manual 2 Year Replacement Warranty CSE-355 CAUTION: Read this instruction manual before using this tool. 1010 www.ozito.com.au To view the full range visit:...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS………………………………………. Page 2 PACK CONTENTS……………………………………… Page 2 KNOW YOUR PRODUCT……………………………… Page 3 INTRODUCTION……………………………………….. Page 4 ELECTRICAL SAFETY………………………………….. Page 4 GENERAL SAFETY INSTRUCTIONS…………………. Page 5 ADDITIONAL SAFETY INSTRUCTIONS FOR CHAINSAWS……………………………………………. Page 7 OPERATION…………………………………………….. Page 9 USING THE CHAINSAW………………………………. Page 13 MAINTENANCE…………………………………………...
  • Page 3: Specifications

    SPECIFICATIONS - MODEL NO. CSE-355 Power: 1800W Bar Length: 355mm (14”) Chain Speed: 15m/s Chain Type: Oregon® 91PJ052X Chain Pitch: 9.5mm (3/8”) Sharpening File: 5/32” Chain Oiling: Automatic Oil Tank Capacity: 140ml Tool Weight: 4.55kg PACK CONTENTS 1 x Chainsaw CSE-355...
  • Page 4: Know Your Product

    KNOW YOUR PRODUCT 1. Rear handle 8. Bar securing nut 2. On/off switch 9. Side panel 3. Lock-off switch 10. Chain oiling filler cap 4. Front handle 11. Oil level window 5. Hand guard/chain brake 12. Cord retainer 6. Chain 13.
  • Page 5: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 6: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 7 GENERAL SAFETY INSTRUCTIONS (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
  • Page 8: Additional Safety Instructions For Chainsaws

    ADDITIONAL SAFETY INSTRUCTIONS FOR CHAINSAWS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Recommendations for the use of a residual current device with a rated residual current of 30mA or less.
  • Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR CHAINSAWS (cont.) Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury.
  • Page 10: Operation

    OPERATION BEFORE ASSEMBLING OR DISASSEMBLING THE CHAIN (6) BE SURE TO DISCONNECT THE CHAINSAW FROM THE POWER SUPPLY. ALWAYS WEAR GLOVES WHEN HANDLING THE CHAIN (6), THE CHAIN (6) IS VERY SHARP AND CAN CUT YOU WHEN IT IS NOT MOVING. Fitting the Guide Bar and Chain Fig.
  • Page 11 OPERATION (cont.) Adjust the chain tensioning screw (C) using the flat end of Fig. 5 the spanner/chain tension adjustor (14) until the bolt (A) fits into the hole in the guide bar (7) (Fig. 5). Fit the side panel (9) back onto the chainsaw, then replace the bar securing nut (8).
  • Page 12 OPERATION (cont.) Chain Oiling The guide bar (7) and chain (6) require lubrication Fig. 7 to reduce friction, the automatic oiler provides lubrication to the chain (6) and guide bar (7) while the chainsaw is operating. Always fill the oil tank prior to using the chainsaw (Fig.
  • Page 13 OPERATION (cont.) Re-tensioning the Chain When working with the chainsaw, the chain (6) expands as a result of the heat generated. With the chain (6) expanding, the tension slackens and the chain (6) can slip off the guide bar (7). If the chain (6) is tensioned in this condition, it is very important to release the tension once cutting is completed, otherwise the chain (6) may contract so much on cooling, it will be excessively tight.
  • Page 14: Using The Chainsaw

    USING THE CHAINSAW When cutting timber resting on the ground, never allow the chainsaw chain (6) to cut into the soil, this will dull the chain (6) immediately. The chainsaw chain (6) is not covered under warranty. When cutting trunks resting on a slope the operator should always stand uphill of the trunk.
  • Page 15 USING THE CHAINSAW (cont.) Guide Bar The guide bar (7) should be checked and cleaned of saw chips and dust after each use, clean the groove in the guide bar (7) and add oil to the oil holes at the drive sprocket end of the guide bar (7).
  • Page 16: Maintenance

    MAINTENANCE Chain Sharpening The chain (6) on the CSE-355 chainsaw can be sharpened using a 5/32" size file. A sharp chain generates wood chips during the cut, a dull chain generates sawdust powder and produces a slow cut. Chain sharpening requires special tools. Chain sharpening tools can be purchased at your local Bunnings Warehouse.
  • Page 17: Description Of Symbols

    DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Regulator compliance mark Double insulated ø Diameter Warning Read instructions Do not expose to rain Wear safety glasses Wear muffs Always hold the saw with Beware of kickback both hands Disconnect and discontinue use should the power cord be damaged...
  • Page 18 Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...
  • Page 19: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, trade or high frequency use will VOID this warranty.
