C C C C ONCRETE EQUIPMENT
ONCRETE EQUIPMENT
ONCRETE EQUIPMENT
ONCRETE EQUIPMENT

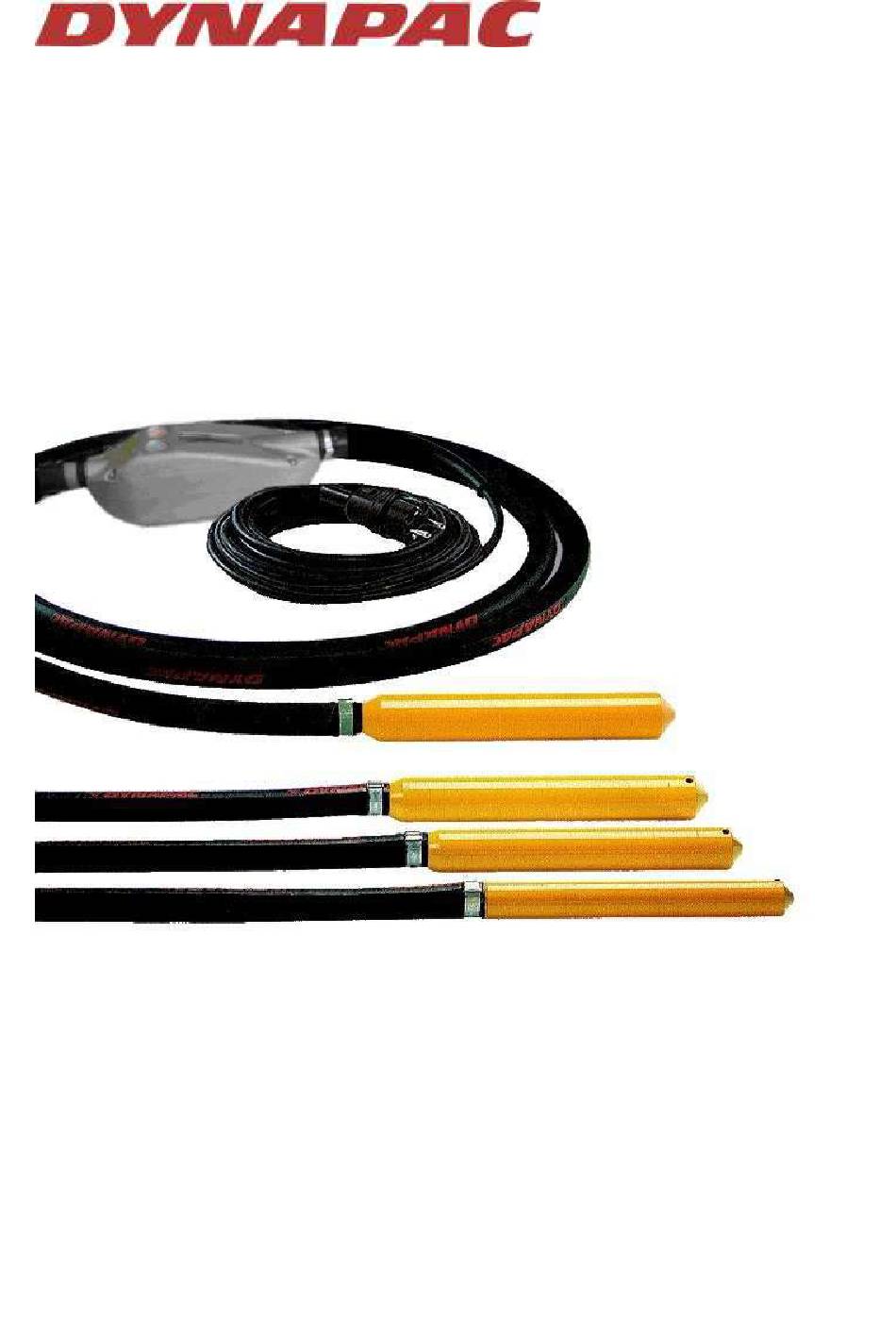

SMART Poker with built-in Frequency
Instructions and spare parts
Instructions and spare parts
Instructions and spare parts
Instructions and spare parts
Manual number : 4700368698_ENG_NO.DOC
Revision : 2
Converter
catalogue
catalogue
catalogue
catalogue
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynapac SMART Poker SMART28
Summary of Contents for Dynapac SMART Poker SMART28
- Page 1 C C C C ONCRETE EQUIPMENT ONCRETE EQUIPMENT ONCRETE EQUIPMENT ONCRETE EQUIPMENT SMART Poker with built-in Frequency Converter Instructions and spare parts Instructions and spare parts Instructions and spare parts Instructions and spare parts catalogue catalogue catalogue catalogue Manual number : 4700368698_ENG_NO.DOC Revision : 2...
-
Page 2: Table Of Contents
INSTRUCTIONS MANUAL – SMART SUMMARY GENERAL SAFETY RULES ....................3 GENERAL ...........................5 DESIGN ..........................5 TECHNICAL DATA SMART....................5 TECHNICAL DATA SMART-E ....................6 OPERATION ........................7 CHECK BEFORE OPERATION........................7 STARTING OPERATION..........................7 TROUBLE SHOOTING .......................8 MAINTENANCE ........................8 WORKSHOP TOOLS .............................8 ELECTRONIC UNIT CONVERTER........................8 VIBRATING ELEMENT AN ....................9 LUBRICATION ..............................9 LOCKING TORQUE............................9 DISCONNECTING ALL VIBRATING ELEMENTS FROM THE ELECTRONIC UNIT CONVERTER ..10... -
Page 3: General Safety Rules
INSTRUCTIONS MANUAL – SMART GENERAL SAFETY RULES Read all safety warnings designated by the symbol WARNING all instructions SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. General Power Tool Safety Warnings WORK AREA Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as presence of flammable liquids, gases or dust. - Page 4 INSTRUCTIONS MANUAL – SMART General Power Tool Safety Warnings TOOL USE AND CARE Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off.
-
Page 5: General
INSTRUCTIONS MANUAL – SMART GENERAL The poker with built-in frequency converter SMART is a combination of an electric poker AN and a built-in electronic frequency converter. Small size and light weight make the SMART one of the most ergonomic poker on the market. The electronic and electric devices may contain potentially hazardous substances. -
Page 6: Technical Data Smart-E
INSTRUCTIONS MANUAL – SMART 310x105x110 Dimensions of the converter L x W x H mm - (in) (12.2x4.13x4.33) 14.1 15.7 16.9 19.5 Total weight of the SMART kg (lb) (22) (31.05) (34.58) (37.22) (42.95) IP67 Protection index * Noise level measured in air at 1m from the poker , according to ISO 6081. ** Weighted effective acceleration measured in air at 1m from the end of the poker , according to ISO 5349 . -
Page 7: Operation
INSTRUCTIONS MANUAL – SMART 230V-1-50/60Hz 115V-1-50/60HZ 115V-1-50/60HZ 115V-1-50/60HZ CANADA SMART65 4700368692 SMART-E40 4700368764 SMART-E48 4700368765 SMART-E56 4700368766 Operating electronical 4700368767 4700368768 4700368783 4700368784 converter SMART OPERATION SAFETY RULES, READ CAREFULLY BEFORE OPERATION !! - The machine must be used for defined applications by qualified people. - Observe and follow all operation and maintenance instructions. -
Page 8: Trouble Shooting
INSTRUCTIONS MANUAL – SMART TROUBLE SHOOTING If the SMART stops during operation, it means that the SMART microprocessor, or the primary safety protection of the customer have detected a trouble : Primary safety protection releasing: Caused by: Primary cable defect or converter defect No primary safety protection releasing: The microprocessor has detected one of the following incidents: Short circuit between phases on AN side. -
Page 9: Vibrating Element An
INSTRUCTIONS MANUAL – SMART SMART28 SMART40 SMART48 SMART56 SMART65 SMART- SMART-E40 SMART-E48 SMART-E56 230V 230V 115V 230V 115V 230V 115V 230V Stator resistance 26.50 9.30 (Ohm) Input current (A) (Out of concrete) VIBRATING ELEMENT AN The vibrating elements are maintenance free. The vibrating elements are lubricated with oil (see «Maintenance/Lubrication»). -
Page 10: Disconnecting All Vibrating Elements From The Electronic Unit Converter
INSTRUCTIONS MANUAL – SMART Vibrating element Tightening torque / Gluing End cap 1 : 520Nm + Loctite 638 Nipple 3 : 250Nm + Loctite 243 AN56 Screw 11 : 8Nm Trustscrew 15 : Loctite 243 Screw 22 : Loctite 243 End cap 1 : 750Nm + Loctite 638 Nipple 3 : 250Nm + Loctite 243 AN65... -
Page 11: Vibrating Element An40/An48/An56/An65
INSTRUCTIONS MANUAL – SMART VIBRATING ELEMENT AN40/AN48/AN56/AN65 DISASSEMBLY 1. Unscrew the end cap (1) from the stator tube (2) (right hand thread ). The stator is glued inside the tube. 2. Unscrew the nut (15) and remove (14) and (18). 3. -
Page 12: Spare Parts Catalogue
INSTRUCTIONS MANUAL – SMART SPARE PARTS CATALOGUE RESERVDELSTÄLLNING ORDERING SPARE PARTS Följande uppgifter ska lämmas vid beställning av To avoid errors in delivery, please give the following reservdelar för att undvika leveransfel : information when ordering spare parts : 1. Maskintyp. 1. -
Page 13: Smart28, 40, 48 - 230V-1-50/60Hz
INSTRUCTIONS MANUAL – SMART SPARE PARTS Note : To place spare parts order, use : The serial number of the machine The description and part number SMART28, 40, 48 – 230V-1-50/60H SMART28 SMART40 SMART48 P/N 4700368782 P/N 4700368694 P/N 4700368690 Ref. -
Page 14: Smart40, 48, 56 - 115V-1-50/60Hz Canada
INSTRUCTIONS MANUAL – SMART SMART40, 48, 56 – 115V-1-50/60H CANADA SMART40 SMART48 SMART56 P/N 4700368770 P/N 4700368772 P/N 4700368774 Ref. Description Vibrating element 4700187260 4700187261 4700187262 Hose* 4700366152 4700366152 4700366152 Clamp* 4700184354 4700184354 4700184354 Electronical converter 4700368783 4700368783 4700368783 Wire (3x)* 4700186523 4700186523 4700186523... - Page 15 INSTRUCTIONS MANUAL – SMART File: 4700368698_ENG_NO.doc Page 15 / 28...
-
Page 16: Operating Electronical Converter Complete
INSTRUCTIONS MANUAL – SMART PERATING ELECTRONICAL CONVERTER COMPLETE 230V 115V – UK 115V - CANADA 115V -USA P/N 4700368767 P/N 4700368768 P/N 4700368783 P/N 4700368784 Ref Description 1 Converter cpl 4700368380 4700368380 4700368380 4700368380 *Converter 4700368715 4700368715 4700368715 4700368715 *Green switch 4700368708 4700368708 4700368708... - Page 17 INSTRUCTIONS MANUAL – SMART File: 4700368698_ENG_NO.doc Page 17 / 28...
-
Page 18: Smart-E (230V-1-50/60Hz)
INSTRUCTIONS MANUAL – SMART -E (230V-1-50/60H MART SMART-E40 SMART-E48 SMART-E56 P/N 4700368764 P/N 4700368765 P/N 4700368766 Ref. Description Screw 4700541539 4700541539 4700541539 “On” green switch 4700368968 4700368968 4700368968 Rubber 4700701840 4700701840 4700701840 O ring 4700160231 4700160231 4700160231 Clamp plate 4700701842 4700701842 4700701842 Screw... - Page 19 INSTRUCTIONS MANUAL – SMART SMART-E40 SMART-E48 SMART-E56 P/N 4700368764 P/N 4700368765 P/N 4700368766 Ref. Description Clamp 4700100190 4700100190 4700100190 Parts * marked are included in above subassembly File: 4700368698_ENG_NO.doc Page 19 / 28...
-
Page 20: Vibrating Element Smart28 -230V (P/N 4700364674)
INSTRUCTIONS MANUAL – SMART 28 -230V (P/N 4700364674) IBRATING ELEMENT SMART Ref. Description End cap 4700364560 O Ring 4700160306 Tube 4700364561 Reducer 4700364562 Excenter 4700364563 Rotor 4700117323 Nipple 4700364565 Stator tube (230V) 4700117339 Bearing holder 4700364529 Ring 4700181659 Needle bearing 4700181657 Ring 4700186680... - Page 21 INSTRUCTIONS MANUAL – SMART File: 4700368698_ENG_NO.doc Page 21 / 28...
-
Page 22: Vibrating Elements Smart40, Smart48, Smart56 And Smart65
INSTRUCTIONS MANUAL – SMART IBRATING ELEMENTS SMART SMART SMART AND SMART SMART40 SMART48 SMART56 SMART65 Ref. Description End cap 4700186833 4700186812 4700186802 4700186823 Stator tube (230V) 4700117342 4700137632 4700364663 4700364664 Stator tube (115V) 4700117343 4700137631 4700187259 Nipple 4700364526 4700137627 4700364538 4700364544 Excenter 4700364527... - Page 23 INSTRUCTIONS MANUAL – SMART File: 4700368698_ENG_NO.doc Page 23 / 28...
-
Page 24: Vibrating Elements Smart-E40, Smart-E48, Smart-E56
INSTRUCTIONS MANUAL – SMART -E40, -E48, -E56 IBRATING ELEMENTS SMART SMART SMART SMART-E40 (230V) SMART-E48 (230V) SMART-E56 (230V) P/N 4700366627 P/N 4700366126 P/N 4700366904 Ref. Description 4700186833 4700186812 4700186802 Stator tube 4700117342 4700137632 4700364663 Nipple 4700364526 4700137627 4700364538 Excenter 4700364527 4700364533 4700364539 Rotor... - Page 25 INSTRUCTIONS MANUAL – SMART File: 4700368698_ENG_NO.doc Page 25 / 28...
- Page 26 EO СЕРТИФИКАТ ЗА СЪОТВЕТСТВИЕ / PROHLÁŠENÍ O SHODĚ EU / EU-OVERENSSTEMMELSESRKLÆRING / CONFORMITEITSVERKLARIN EC / CERTIFICATE OF CONFORMITY EC / EUROOPA ÜHENDUSE TÜÜBIVASTAVUSE TUNNISTUS / VAATIMUSTENMUKAISUUSTODISTUS (EU) / CERTIFICAT DE CONFORMITE CE / KONFORMITÄTSBESCHEINIGUNG EG / ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦ ΣΗΣ ΕΚ / CE MEGFELELİSÉGI NYILATKOZAT / DICHIARAZIONE CE DI CONFORMITA’...
- Page 27 Também fabricado conformidade DIRECTIVAS Ari atbilst Eiropas standartu EN12100-1, EN12100-2, EN12649. LIEFERANTENERKLÄRUNG EUROPEIAS 2006/95, 2004/108, 2002/95 & 2002/96, se são do tipo Taip pat atitinka Europos standartus EN12100-1, EN12100-2, eléctrico. EN12649. Je současně vyroben ve shodě s EVROPSKÝM NAŘÍZENÍM 2006/95, Ook voldoet aan de Europese norm EN12100-1, EN12100-2, 2004/108, 2002/95 &...
