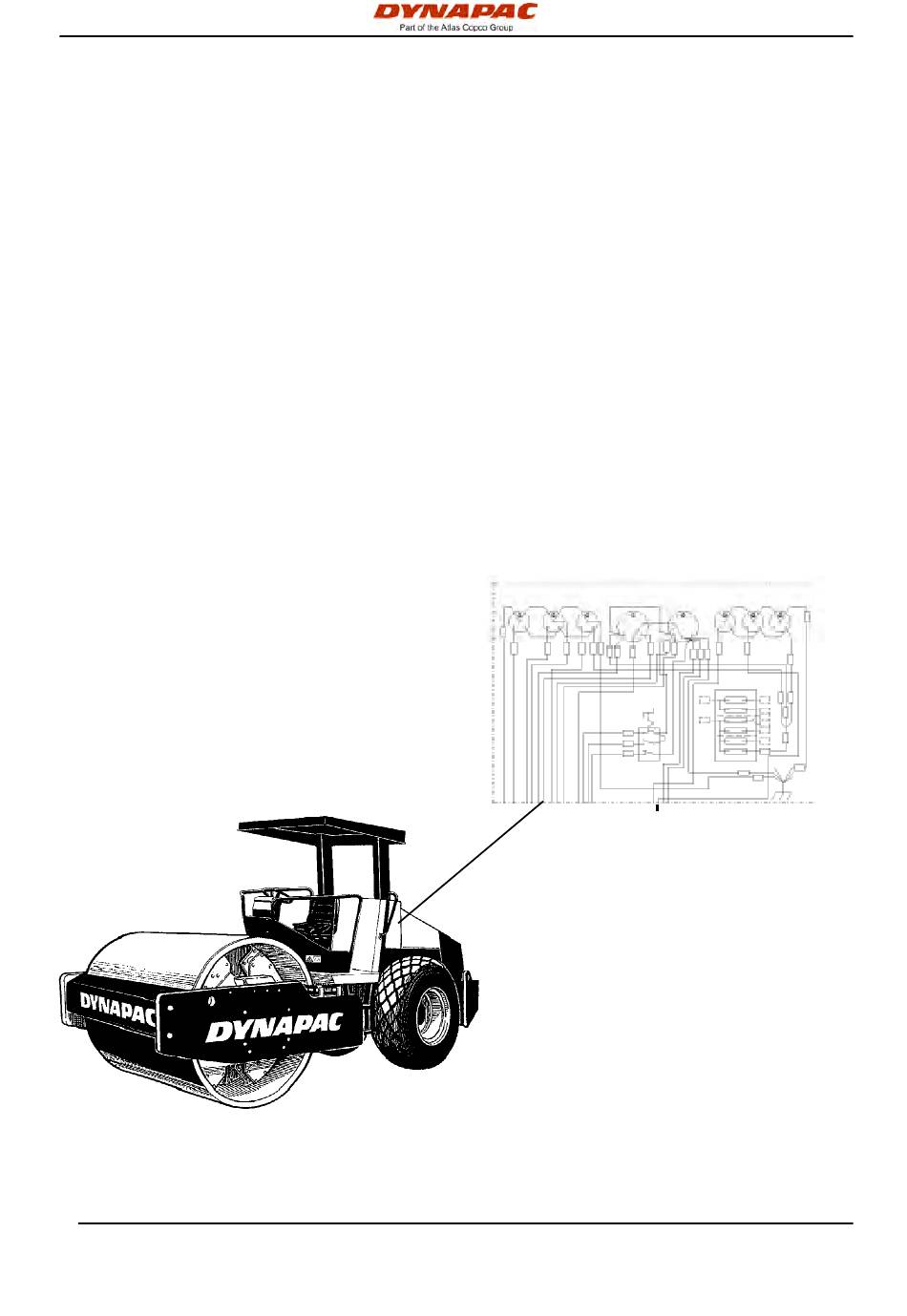

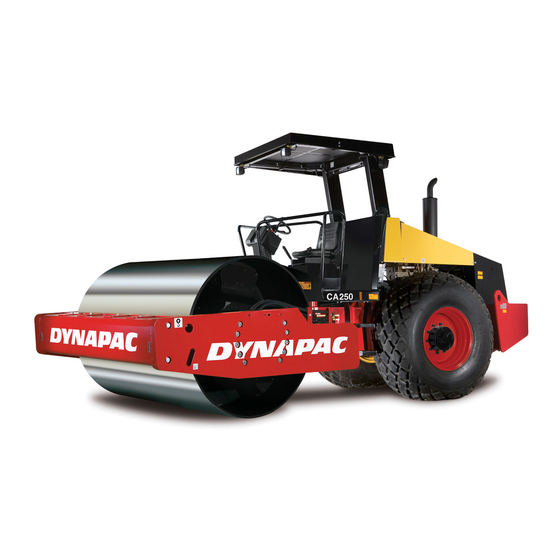

  • Page 1 Workshop manual Workshop manual W3023EN3.pdf W3023EN3.pdf Electric circuit diagrams Electric circuit diagrams Vibratory roller Vibratory roller CA250/280/300 Tier I CA250/280/300 Tier I CA250/260/280 Tier III CA250/260/280 Tier III From serial number: From serial number: CA250/280/300 Tier I CA250/280/300 Tier I...

  • Page 3: Table Of Contents

    Before start....................3 Start......................3 Jump starting....................3 Electrical and hydraulic equipment ............. 4 Type of Electrical circuit diagram ..................... 5 DYNAPAC electric wiring standard ................5 Wiring system....................5 Electrical circuit diagrams ......................9 2010-04-16 W3023EN3.pdf s t l...
  • Page 4 W3023EN3.pdf 2010-04-16 s t l...

  • Page 5: Introduction

    Introduction Introduction Warning symbols WARNING ! Marks a danger or a hazardous WARNING ! Marks a danger or a hazardous procedure that can result in life threatening or procedure that can result in life threatening or serious injury if the warning is ignored. serious injury if the warning is ignored.
  • Page 6 Introduction W3023EN3.pdf 2010-04-16...

  • Page 7: Safety Regulations

    Safety regulations Safety regulations Before start - Study and understand the operating instructions before start. - Study and understand the operating instructions before start. - Check the machine for any serious faults. - Check the machine for any serious faults. - Do not operate the machine with defective instruments, warning lights or control elements.

  • Page 8: Electrical And Hydraulic Equipment

    Safety regulations Electrical and hydraulic equipment Personal safety must be observed when batteries are handled or tested. Personal safety must be observed when batteries are handled or tested. A fully equipped medical kit, including eye-wash facilities, should be available and A fully equipped medical kit, including eye-wash facilities, should be available and protective clothing, including eye protection, should be worn.

  • Page 9: Type Of Electrical Circuit Diagram

    The benefits of this way of displaying an electrical system are that it´s easier to follow the cables and troubleshoot the system. DYNAPAC electric wiring standard Wiring system Cable colours and number marking 1. Cable types and cable colours For wiring systems in rollers cable types RKUB and RK shall be used.
  • Page 10 Type of Electrical circuit diagram The groups are as follows: Group 1 Group 1 LIGHTNING LIGHTNING Group 2 Group 2 BATTERY BATTERY Cable colour: Cable colour: WHITE WHITE Cable colour: Cable colour: Cable marking: Cable marking: 101-199 101-199 Cable marking: Cable marking: 201-299 201-299...
  • Page 11 Type of Electrical circuit diagram 3. Explanation of electrical circuit diagram The circuit diagram contains 6 pages and some lines on one page may be connected to a component on another page. In top of the pages, figures 1 to 6 are found and on right of pages, letters A to D are found.
  • Page 12 Type of Electrical circuit diagram W3023EN3.pdf 2010-04-16...

  • Page 13: Electrical Circuit Diagrams

    Rev. Pls. Issued by Checked Change No. Date ­F11 ­K11.X1:30 205 RD ­X.40 205 RD ­F11.X1 /5.B1 15.18 6.00 mm² ­X40 6.00 mm² ­F11.X1 30.3 15.2 243 BK =Batteriswitch 16.00 mm² 202 RD ­X.9 202 RD =Main fuse ­Q1 ­X9 6.00 mm² 6.00 mm² ­F10 ­A7 219 RD 4.00 mm²...
  • Page 14 Rev. Pls. Issued by Checked Change No. Date ­A7 601 YE ­X4 601 YE c1.p17 ­X.4 ­A1.X1 0.75 mm² 0.75 mm² =Buzzer ­H10 ­H10.X­ 31.29 223 RD ­H10.X+ /4.B2 ­X.508 275.3 222 RD /1.C1 =Seat switch ­X.507 ­S5 2.50 mm² ­S5.X1 217 RD ­S5.X1 ­S5.X1 313 VT 0.75 mm²...
  • Page 15 Rev. Pls. Issued by Checked Change No. Date ­A1 801 BN #2066.2 /1.B5 ­V1:A 0.75 mm² 802 BN 0.75 mm² c1.p24 ­A1.X1 ­X.6 802 BN 0.75 mm² c1.p25 ­X6 ­A1.X1 c1.p26 c1.p35 ­A1.X1 ­A1 802 BN 229 RD 0.75 mm² Hour Meter 0.75 mm² V + Enable 31.31 228 RD ­A8.X34 /4.B2 Fuel sender...
  • Page 16 Rev. Pls. Issued by Checked Change No. Date =Horn switch ­S3 =Horn ­H11 604 YE ­H11.X2 ­S3.X1 ­F1.1­2 226 RD ­S3.X1 ­F1.2 ­F1.1­2 227 RD #1730.1 /8.C1 ­X70 932 BK Horn ­31B.X5 ­X.508 ­X71 /8.D1 #1731.1 =Back­up alarm ­H13 ­A1.X1 603 YE 0.75 mm² ­H13.X1 ­X246 ­A7 c1.p18...
  • Page 17 Rev. Pls. Issued by Checked Change No. Date =Rotating beacon switch ­S18 #1724.1 /7.C2 ­X.7.1:1 =Rotating beacon ­H14 ­S18.X1 610 YE ­X4 610 YE ­X7 610 YE ­F1.3­4 224 RD ­S18.X1 ­F1.4 ­X.4 ­X.7 ­H14.X1 Rotating beacon 927 BK ­X.7 927 BK ­S18.X1 ­S18.X1 0.75 mm² ­X7 ­31A.X15 ­X.7.1:2...
  • Page 18 Rev. Pls. Issued by Checked Change No. Date =Head light switch ­S16 =Headlight right ­E10 ­F2.2­B1 ­F2.2 ­S16.X1 120 WH 2.50 mm² ­X.11 120 WH 2.50 mm² Headlight 241 RD ­E10.X1 968 BK 2.50 mm² ­X11 ­E10.X1 ­S16.X1 ­31A.X18 Right/ front ­F2.1­2 ­F2.2­B2 4.00 mm² 969 BK ­S16.X1 =Headlight left Headlight ­E9 ­S16.X1 ­S16.X1...
  • Page 19 Rev. Pls. Issued by Checked Change No. Date =Working light rear left ­E6.1 31.22 31.20 110 WH 2.50 mm² ­E6.X2 950 BK 2.50 mm² ­X13.3 ­E6.X2 =Working light rear right ­E8.1 ­E8.X2 ­E8.X2 =Working light Front.Left Cab ­E20 #477.1 ­X13.4 101 WH ­X.41 ­X.519 ­X.519 /5.B4 ­X.13:1 ­X.13.1 ­X41 =Working light Rear.Right Cab ­E22 ­X.41 ­X.520 ­X.520 ­X41 =Working light Front.Right Cab...
  • Page 20 Rev. Pls. Issued by Checked Change No. Date 30.4 15.5 ­S38 =Heater blower ­M2 ­F12 ­F22.1 255 RD ­F12.X1 254 RD ­X60 ­K30.X1 ­K30.X1 ­X.524 ­X.524 ­X.60 974 BK ­31C.X1 6.00 mm² ­F12.X1 ­X.60 ­X60 6.00 mm² 6.00 mm² #2686.1 570 GN ­X.58 570 GN ­X61 ­K30.X1 /1.B1 ­X.35...
