Summary of Contents for Keeler 1964-P-2001

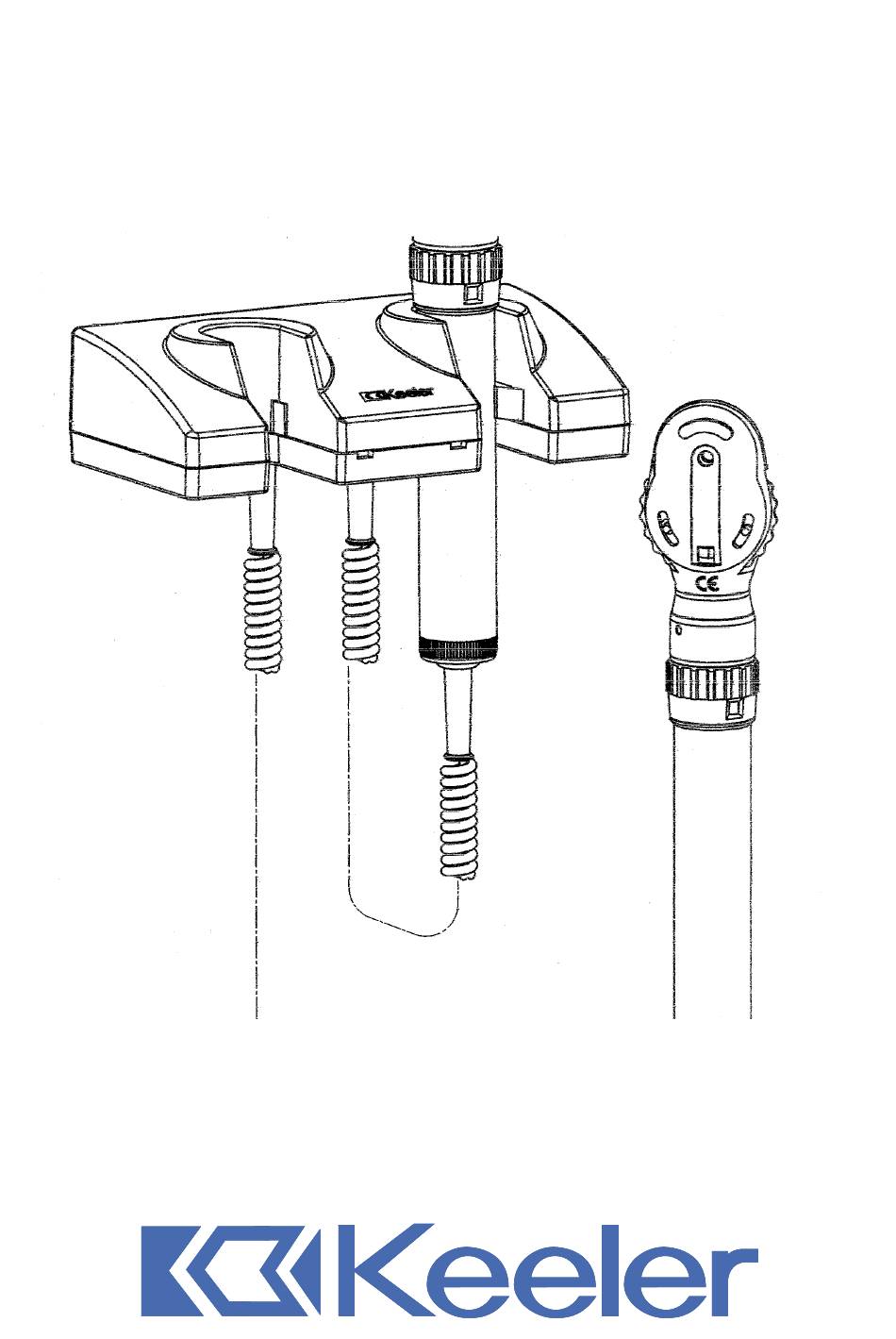

- Page 1 1964-P-2001 1964-P-2000 PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY...
- Page 2 Do not use unit if damaged and periodically visually inspect for signs of dam- age. Keeler cord handles attached to a mains unit provide a 3.6v output to the instru- ment head. Care must be taken to ensure that only instrument heads fitted with a 3.6V bulb are connected.
- Page 3 Power Supply Replace the blanking plate with the appropriate mains plug adapter, or use IEC 60320 TYPE 7 connector (not supplied) See fig. 1. Connect power supply to unit and plug in mains. CHECK fig. 1 Wall Mounting For the Gen Med Unit Dispenser Units drill two holes Ø6mm x 55mm deep and 110mm apart.
- Page 4 WALL UNIT & DISPENSER TEMPLATE Scale 1:1 . Do not scale...
- Page 5 CAUTION fig. 3 Ø6mm 55mm Ø6mm fig. 4 fig. 5...
- Page 6 The instrument head should be screwed positively onto the handle as shown in fig 6. As an additional security measure, instrument heads may be locked onto Keeler cord handles by tightening the built in screw with the hexagonal key provided see fig 7.
- Page 7 No user serviceable parts - all preventative maintenance and servicing must only be performed by an authorised Keeler representative. Your Keeler wall unit is guaranteed for 3 years and will be replaced or repaired free of charge subject to the following:-...
- Page 8 Cleaning Instructions Only manual non-immersion cleaning as described below should be used for the instrument: Wipe the external surface with a clean absorbent, non shedding cloth dampened with a water / detergent solution (2% by volume) or water / isopropyl alcohol solution (70% by volume). Ensure that excess solution does not enter the instrument.
- Page 9 Berkshire SL4 4AA England Tel: +44 (0)1753 857177 Fax: +44 (0)1753 827145 FREEPHONE: 0800 521 251 DISTRIBUTED BY: Keeler Instruments Inc 456 Parkway Broomall PA 19008, USA Toll Free: 1 800 523 5620 Tel: 610 353 4350 Fax: 610 353 7814...
