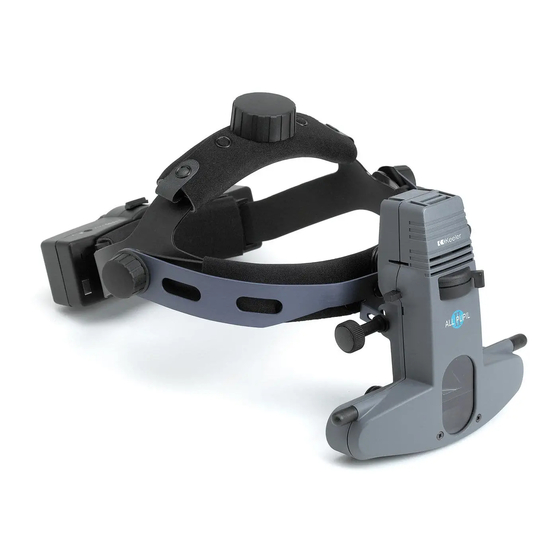

Keeler All Pupil 2 Instructions For Use Manual

Indirect ophthalmoscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

All Pupil II
Indirect Ophthalmoscope
INSTRUCTIONS FOR USE
A world without vision loss

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All Pupil 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Keeler All Pupil 2

Summary of Contents for Keeler All Pupil 2

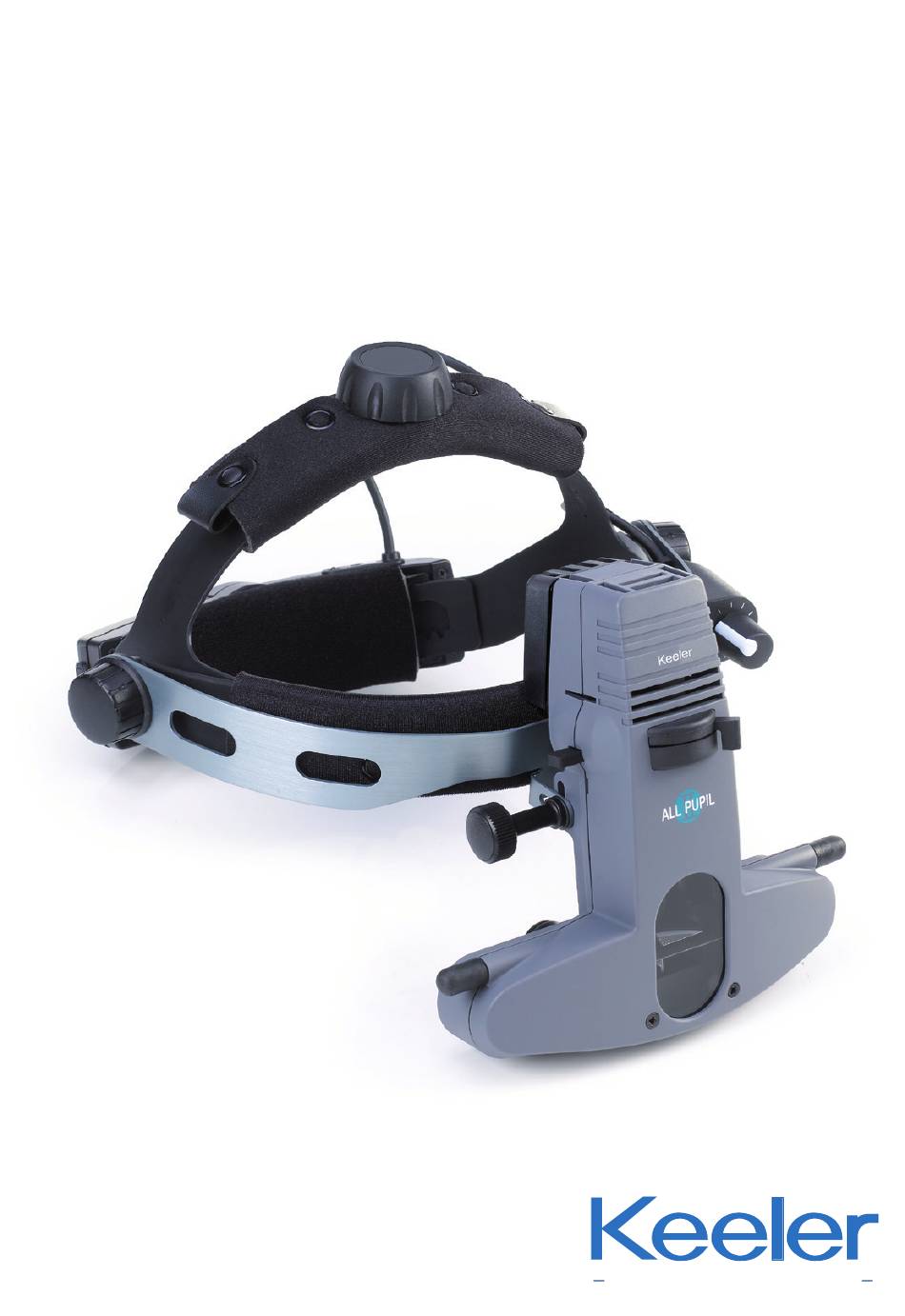

  • Page 1 All Pupil II Indirect Ophthalmoscope INSTRUCTIONS FOR USE A world without vision loss...

  • Page 3: Table Of Contents

    ALL PUPIL II by KEELER CONTENTS INDICATIONS FOR USE ..................3 SAFETY ......................... 3 PHOTOTOXICITY ..........................3 WARNINGS AND CAUTIONS ......................3 CONTRAINDICATION ........................5 CLEANING AND DISINFECTION INSTRUCTIONS ............ 6 SETTING UP AND USING THE VANTAGE PLUS ............7 DESCRIPTION OF THE PRODUCT ....................7 HEADBAND ADJUSTMENT ......................8...
  • Page 4 Catalogue number Serial number Translation Medical device The Keeler All Pupil II Instruments are designed and built in conformity with Directive 93/42/EEC, Regulation (EU) 2017/745 and ISO 13485 Medical Devices Quality Management Systems. Classifi cation: CE: Class I FDA: Class II The information contained within this manual must not be reproduced in whole or part without the manufacturer’s...

  • Page 5: Indications For Use

    Please note that the proper and safe functioning of our instruments is only guaranteed if both the instruments and their accessories are exclusively from Keeler Ltd. The use of other accessories may result in increased electromagnetic emissions or reduced electromagnetic...
  • Page 6 Never use the instrument if visibly damaged and periodically inspect it for signs of damage or misuse. • Check your Keeler product for signs of transport / storage damage prior to use. • Do not use in the presence of fl ammable gases / liquids, or in an oxygen rich environment.

  • Page 7: Contraindication

    ALL PUPIL II by KEELER • Use only genuine Keeler approved parts and accessories or device safety and performance may be compromised. • Use only Keeler approved batteries, chargers and power supplies as per the accessories listed in Accessories and Spares page •...

  • Page 8: Cleaning And Disinfection Instructions

    ALL PUPIL II by KEELER 3. CLEANING AND DISINFECTION INSTRUCTIONS Before any cleaning of the instrument or the base unit, ensure the power lead is disconnected. Only manual non-immersion cleaning as described should be used for this instrument. Do not autoclave or immerse in cleaning fl uids.

  • Page 9: Setting Up And Using The Vantage Plus

    ALL PUPIL II by KEELER 4. SETTING UP AND USING THE VANTAGE PLUS 4.1 DESCRIPTION OF THE PRODUCT A Headband Size Adjuster B Headband Height Adjuster C Cushioned Padded Liners D Aperture Control Lever E Headband Dimmer Switch F Brow Bar Adjuster...

  • Page 10: Headband Adjustment

    ALL PUPIL II by KEELER 4.2 HEADBAND ADJUSTMENT Comfortable Fit Adjust the Height and Size Adjusters (A and B) so that the Indirect is supported comfortably, as shown in figs 1 and 2. Ophthalmoscope Angle Alignment Position the Brow Bar (I) such that the Binocular Block (H) is set on the optical axis.
  • Page 11 ALL PUPIL II by KEELER Obtaining a fused image Ensure that a singular, fused image is obtained as follows: √ Separate images Fused image Overlapping images Mirror Angle Control (K) The light is positioned vertically into the upper two thirds of the fi eld of view by rotating the spindle (K) located on either side of the Binocular Block.

  • Page 12: Wireless Chargers

    ALL PUPIL II by KEELER Filter Selector Bar (M) The All Pupil II has three selectable fi lters built into the head unit. Select the appropriate fi lter by sliding the Filter Selector Bar (M) either left or right from its mid position, using the marked dots to indicate in which direction to slide for each fi lter.

  • Page 13: Standard Slimline Lithium-Ion

    ALL PUPIL II by KEELER 5.3 STANDARD SLIMLINE LITHIUM-ION Inserting / replacing the Battery Pack 1. Release the battery by pressing release button and lift Battery Pack from cradle. 2. To insert new Battery Pack, place in the cradle until fully engaged.
  • Page 14 ALL PUPIL II by KEELER 2. Place your spare Battery Pack or Headset into your Lithium Charger. Spare Battery Press release Charging button and / Docking push up Station Spare Battery Power Supply Inlet Charging / Docking Station Headband Battery Holder Flashing LED –...

  • Page 15: Charging Cycle

    ALL PUPIL II by KEELER 5.5 CHARGING CYCLE Slimline Lithium-Ion The Battery attached to the Indirect will take approximately 2 hours to fully charge. The Battery will last approximately 1 hour on full power. The Spare Battery will take 2 hours to charge.

  • Page 16: Smartpack And Wallpack

    ALL PUPIL II by KEELER Caution 7. SMARTPACK AND WALLPACK 7.1 PARTS LIST A Hex Key B Screws C Screws D Wall Plugs E Base Cap F Wall Mount G Adhesive Pads H Rechargeable battery Part No. EP39-22079 I Body...

  • Page 17: Power Conversion

    ALL PUPIL II by KEELER J Power Supply K Australian Plug L UK Plug M Euro Plug N USA Plug 7.2 POWER CONVERSION Convert to either WallPack or SmartPack by following the illustration below. 7.3 FIXING THE WALL MOUNT Use the wall plugs and screws to mount the WallPack unit, attach the adhesive pads to the side of the case.
  • Page 18 ALL PUPIL II by KEELER Connection Insert the connectors into the sockets as shown. Before connecting ensure that both the dimmer control and mains outlet are switched off. Charge Time Charge the battery for 12-14 hours before initial use. Note: The unit becomes warm when charging, this is normal.

  • Page 19: Bulb / Led Replacement

    ALL PUPIL II by KEELER 8. BULB / LED REPLACEMENT Caution: Bulbs / LEDs can reach high temperatures in use – allow to cool before handling. Disconnect the instrument from the electrical supply. Remove the bulb / LED from the back of the instrument and insert the replacement, ensuring that the bulb / LED key is aligned with the aperture and securely pushed in.

  • Page 20: Teaching Mirror

    ALL PUPIL II by KEELER 9. TEACHING MIRROR 1. Remove the screws from the panel 2. Fit the mounting bar with the pin pointing beneath the front window with the to the right and secure with the screws screwdriver supplied.

  • Page 21: Plano Lenses

    ALL PUPIL II by KEELER 9.2 PLANO LENSES The Keeler All Pupil II is supplied with +2D lenses as standard. Plano lenses, if preferred, are also available from the distributor. These are included in certain API II kits. 10. SPECIFICATIONS AND ELECTRICAL RATINGS The Keeler All Pupil II BIO is a medical electrical instrument.
  • Page 22 – guidance Test level Portable and mobile RF communications equipment should be used no closer to any part of the Keeler All Pupil II, including cables, than the recommended separation distances calculated from the equation applicable to the frequency of the transmitter.

  • Page 23: Recommended Safe Distances

    To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Keeler All Pupil II is used exceeds the applicable RF compliance level above, the Keeler All Pupil II should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orientating or relocating the Keeler All Pupil II.

  • Page 24: Technical Specifications

    ALL PUPIL II by KEELER For transmitters rated at a maximum output power not listed above, the recommended separation distance din metres (m) can be determined using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

  • Page 25: Accessories And Spares

    ALL PUPIL II by KEELER TRANSPORT CONDITIONS 1060 hPa °C °C 500 hPa Vibration, sinusoidal 10 Hz to 500 Hz: 0.5g Shock 30 g, duration 6 ms Bump 10 g, duration 6 ms 11. ACCESSORIES AND SPARES Item Part Number...

  • Page 26: Warranty

    ALL PUPIL II by KEELER 12. WARRANTY The Keeler All Pupil II product is guaranteed for 3 years and will be replaced, or repaired free of charge subject to the following: • Any fault due to faulty manufacture • The instrument and accessories have been used in compliance with these instructions.
  • Page 28 Contact Manufacturer Keeler Limited Clewer Hill Road Windsor Berkshire SL4 4AA UK Freephone 0800 521251 Tel +44 (0) 1753 857177 Fax +44 (0) 1753 827145 USA Sales Office China Office Keeler USA China Office 3222 Phoenixville Pike Halma China Group Building #50 名称：沃迈（上海）机电有限公司...
