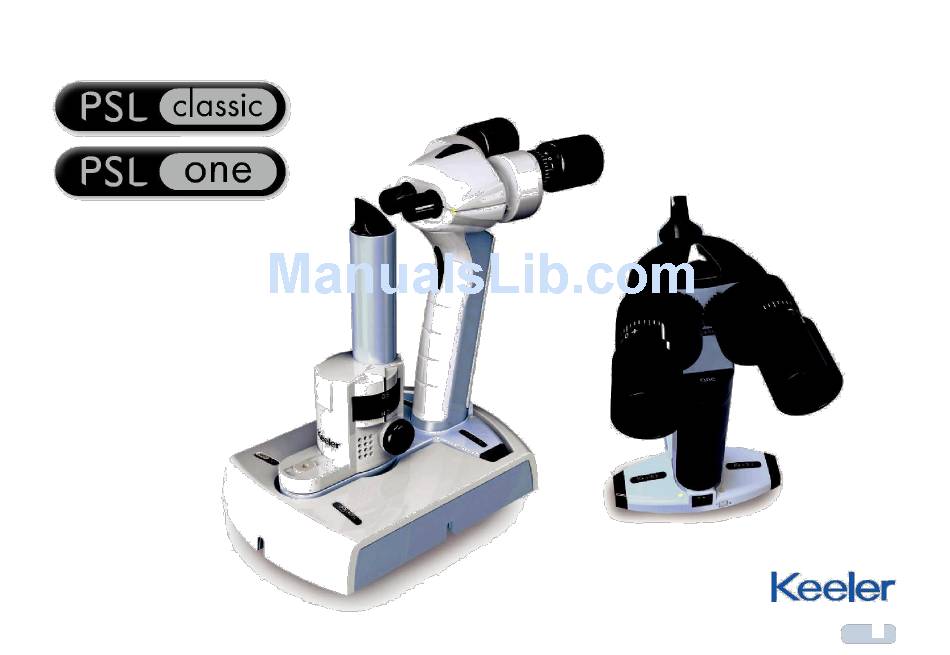

- Page 1 Instructions for use Home Back Next...
- Page 2 Contents Introduction 11. Instructions for use Preparing the power supply and the base unit Symbols Preparing the Portable Slit Lamp prior to use Indications for use Preparing the patient Intended use / purpose of instrument 12. Problem solving Brief description of the instrument 13.
- Page 3 1. Introduction Thank you for choosing this Keeler product. Please read this manual carefully before using your rechargeable Keeler Portable Slit Lamp, this will ensure the safety of the patient and ensu you get the best performance from this precision optical device.
- Page 4 2. Symbols Read user instructions for Warnings, Cautions Keep dry and additional information Power input port Double insulated Fragile Type B protections against shock This way up Consult instructions for use Material suitable for recycling Manufacturers name and address This Symbol on the Product or on its Packaging and instructions indicates that it was put on the market place after August 2005 and that this product shall not be treated as Household Waste.
-
Page 5: Indications For Use
3. Indications for use The Keeler Portable Slit Lamp (PSL) is an AC-powered Slit Lamp biomicroscope intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment. - Page 6 4. Intended use / purpose of instrument The Slit Lamp is an instrument consisting of a light source that can be focused to shine a thin sheet (slit) of light into the eye. It is used in conjunction with a biomicroscope. The lamp facilitates an examination of the anterior segment, or frontal structures and posterior segment, of the human eye, which includes the eyelid, sclera, conjunctiva, iris, natural crystalline...

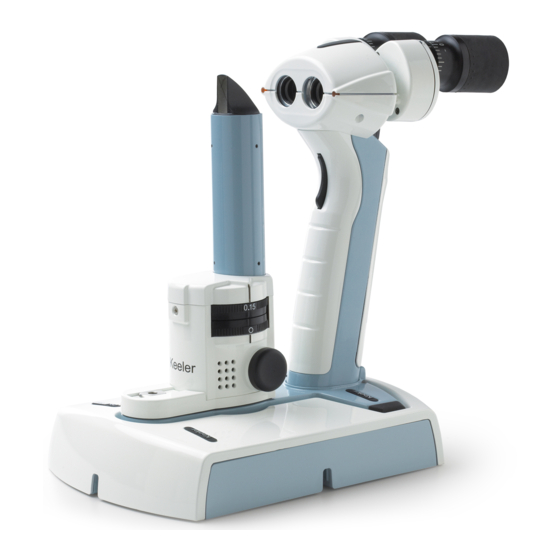

- Page 7 5. Brief description of the instrument The Keeler Portable Slit Lamp comprises a rechargeable hand held portable illuminated biomicroscope system and a desk mounted base charger unit that is powered from a low voltage (12V) power supply. The hand held unit incorporates a lithium ion rechargeable battery powering the illumination system.
- Page 8 6. Safety The Keeler Portable Slit Lamp is designed and built in conformity with EC Directive 93/42/EEC and the ISO 9000 and EN 46000 series quality standards. (European Community) mark attests that the Slit Lamp complies with the provisions of Annexes I, VI, and VII of EC Directive 93/42/EEC.
- Page 9 Many ophthalmic instruments illuminate the eye with intense light. The light levels on the Keeler Slit Lamp is continuously adjustable from maximum to zero. In addition there is an infra red filter incorporated in the illumination system to reduce IR light levels.
- Page 10 6. Safety The following statement is provided for US customers and references FDA Slit Lamp Guidance. Because prolonged intense light exposure can damage the retina, the use of the device for ocular examination should not be unnecessarily prolonged, and the brightness setting should not exceed what is needed to provide clear visualization of the target structures.
- Page 11 7. Cleaning and disinfection instructions Only manual non-immersion cleaning as described should be used for this instrument. Do not autoclave or immerse in cleaning fluids. Always disconnect power supply from source before cleaning. a Wipe the external surface with a clean absorbent, non- shedding cloth dampened with a water / detergent solution (2% detergent by volume) or water / isopropyl alcohol solution (70% IPA by volume).
- Page 12 8. Transport, storage and working conditions The following ambient condition limits are recommended for the Keeler Portable Slit Lamp, for transport and storage it is recommended that the Slit Lamp is kept in its original manufacturers packaging. Before use the Slit Lamp should be allowed to adjust to the ambient room temperature for several hours.
-
Page 13: Warnings And Cautions
• After removal of the bulb, do not touch bulb contacts and manufacturer. The manufacturer declines any and all patient simultaneously. responsibility for loss and/or damages resulting from • Only use approved Keeler power supply unauthorised repairs; furthermore, any such actions will 1941-P-7778 or instrument may invalidate the warranty. - Page 14 10. Names of controls and components Portable Slit Lamp illumination body and magnification optics 1. Trigger Click and hold the trigger to turn the lamp illumination on. Double click (similarly to a computer mouse button) to turn both the illumination lamp and fixation targets on. 2.
- Page 15 10. Names of controls and componen Portable Slit Lamp illumination body and magnification opti 10. Magnification change lever (PSL Classic only) Push this lever to the right to set the magnification at 10x and to the left to set the magnifi at 16x.
-
Page 16: Instructions For Use
11. Instructions for use 3. Place the Portable Slit Lamp on the base charger unit, the Preparing the power supply and the base unit yellow LED will illuminate to indicate the unit is being 1. Attach the appropriate mains plug adapter to the transformer after charged. - Page 17 3. Set the magnification to either x10 or x16 using the magnification change lever (PSL Classic only). 4. Select your preferred slit width and filter by rotating the slit and the filter wheels. Home...
-
Page 18: Preparing The Patient
The patient should be as comfortable as possible and positioned to allow easy access to the eye to be examined. The Keeler portable Slit Lamp is designed to be ambidextrous, hold the Slit Lamp in your preferred hand simultaneously squeezing the trigger on/off switch. - Page 19 12. Problem solving Problem Solution Check the unit is fully charged No illumination, Check the position of the filters and or low slits to ensure they are set correctly illumination Check and if necessary change the bulb Check the position of the slit disc, it Slit slanted at an may not be located correctly at a slit angle...
- Page 20 13. Changing the bulb Warning the bulb may be hot if the Slit Lamp has been in continuous use, take care when removing the bulb. Make sure the power is disconnected before changing the bulb. To change the bulb, first allow 5 minutes for it to cool down if the Slit Lamp has been in use.
- Page 21 Caution Keeler Slit Lamps should be cleaned and serviced regularly. Any servicing or repairs should only be carried out by Keeler Ltd. or by suitably trained and authorised distributors. There are no user serviceable parts in this instrument. Service manuals will be available to authorised Keeler service centres and Keeler trained service personnel.
- Page 22 15. Specifications and electrical ratings Guidance and manufacturer’s declaration – electromagnetic immunity The Keeler Portable Slit Lamp is intended for use in the electromagnetic environment specified below. The customer or user should assure that it is used in such an environment.
- Page 23 Guidance and manufacturer’s declaration – electromagnetic emissions The Keeler Portable Slit Lamp is intended for use in the electromagnetic environment specified below. The customer or user should assure that it is used in such an environment.
- Page 24 If the measured field strength in the location in which the Keeler Portable Slit Lamp is used exceeds the applicable RF compliance level above, the Keeler Portable Slit Lamp should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orientating or relocating the Keeler Portable Slit Lamp.
- Page 25 Recommended separation distances between portable and mobile RF communications equipment and the Keeler Portable Slit Lamp The Keeler Portable Slit Lamp is intended for the use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Keeler Portable Slit Lamp can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Keeler Portable Slit Lamp as recommended below, according to the maximum output power of the communications equipment.
-
Page 26: Technical Specifications
Binocular Hand held Biomicroscope Slit Lamp Optics Converging binoculars at 13˚ Magnification PSL One: 10x fixed PSL Classic: 10x and 16x, lever change Objective lens working distance @ 10x 100mm PSL One, PSL Classic Objective lens working distance @ 16x... -
Page 27: Power Supply
16. Technical specifications Slit and filter system Slit type Rotating Slit wheel selection Slit Lamp Slit length 12mm Slit widths 0.15mm, 0.5mm, 0.8mm and 1.6mm slits, 12mm circle and a 1mm square Filters Red free, Blue, Neutral density 0.8 and Clear IR protection Inbuilt IR cut filter Slit angle... - Page 28 17. Accessories Accessories Aluminium Carry Case Part Number 3010-P-7000 Test Bar Part Number EP39-70737 Power Supply Part Number 1941-P-7778 2x Rubber Eye Caps Part Number 3010-P-7004 iPhone 4 Adapter Part Number 3010-P-7010 Consumables Slit Lamp 6V 15W Bulb Part Number 1030-P-7187 Home Back Next...
- Page 29 18. Contact, packaging and disposal Information Manufacturer USA Sales Office Keeler Limited Keeler USA Clewer Hill Road 456 Parkway Windsor Broomall Berkshire PA 19008 SL4 4AA Freephone: 0800 521251 Toll Free: 1 800 523 5620 Tel: +44 (0) 1753 857177...
