Keeler Vantage Plus Digital Instructions For Use

Vantage
Instructions

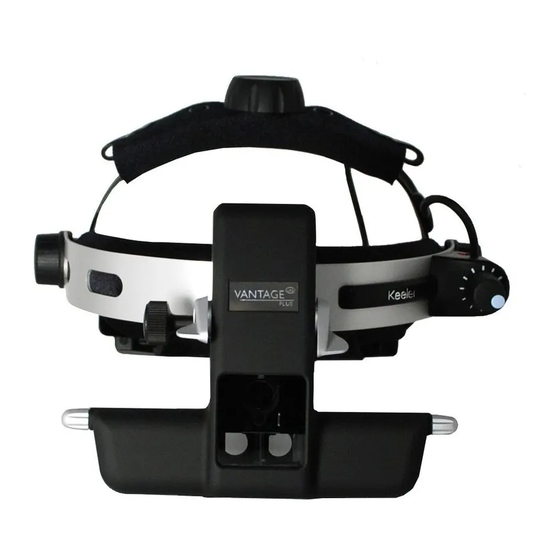

The Keeler Vantage Plus Digital is an indirect ophthalmoscope that captures
images as seen by the user, primarily for teaching purposes.
Keeler does not recommend the use of the digital data for diagnostic purposes.
List of contents List of contents
1
Vantage Plus binocular indirect ophthalmoscope
•
Vantage Plus instructions
•
Software driver and application
•
USB Cable (5m)
•
Remote hand switch
•
Set up Set up Set up
2
Set up your Vantage Plus Digital as you would normally
set up your indirect (for full instructions see instruction CD
2415-P-7001). The unit should be set up before starting
examination procedures and not adjusted over patient.
Install the software Install the software
3
Refer to Software Setup and Quick Start Guide - EP59-09871 (Paper)
or Installation Disc 2415-P-7003
Plug in the USB cable Plug in the USB cable Plug in the USB cable
4
When the software has been installed, plug in the
cable to the mini USB port – see example below
Plug in USB cable to your computer
Follow the remote hand switch instructions Follow the remote hand switch instructions
5
Follow the remote hand switch / foot switch instructions in Software Setup
& Quick Start Guide, EP59-09871 or Vantage Plus Digital Installation CD, 2415-P-7003.
Please see overleaf for further
instructions and contact details
Digital
Plus
Cable to USB port
