Manual version: 6PW101-20141219
H3C SR6600 SPE-FWM-200 Card Manual
1 Card identifier
The card identifier SPE-FWM-200 is at the right corner of the front panel.
2 Introduction

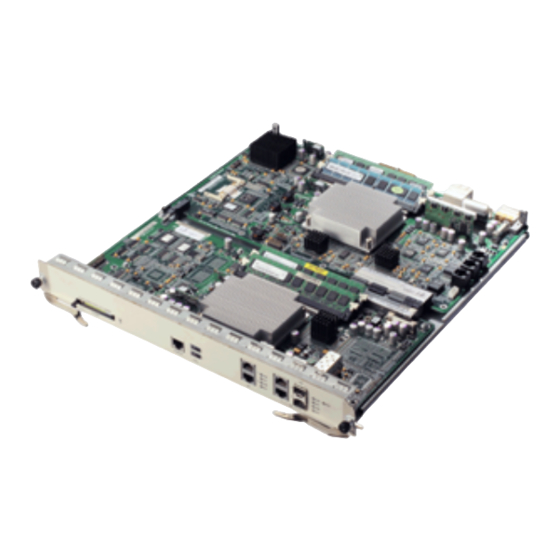

The SPE-FWM-200 card provides one console port, one CF card interface, two USB interfaces, two
10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
You can use a GE port or combo interface to provide the following functions:
In-band management.
•
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
3 Specifications

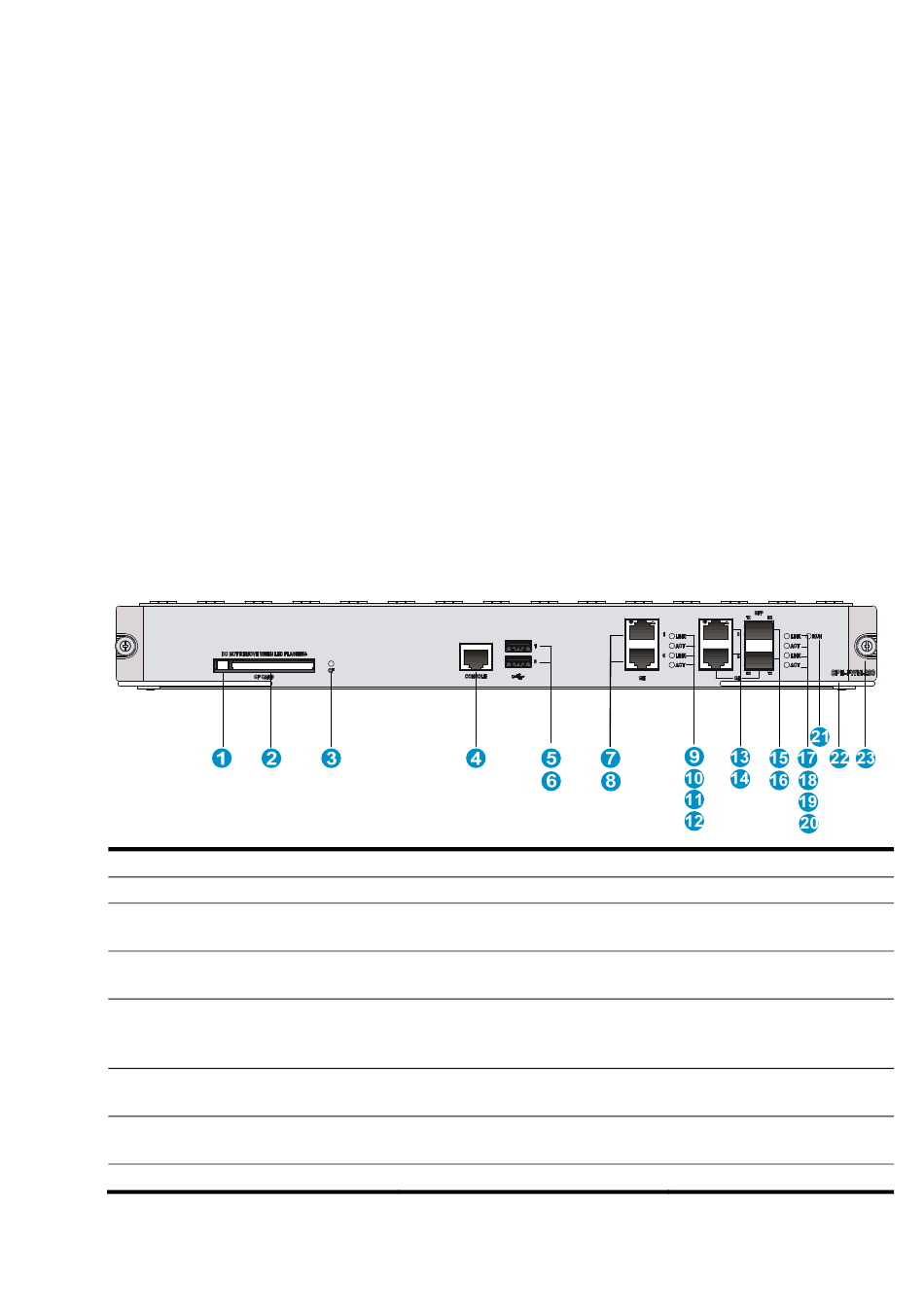

Figure 1 Front panel
(1) CF card eject button
(4) Console port (CONSOLE)
(7) Management Ethernet interface 1
(10/100/1000BASE-T)
(10) Management Ethernet interface 1
LED (ACT)
(13) Management interface 3
(Electrical port of combo interface
10/100/1000BASE-T)
(16) Management interface 2 (Optical
port of combo interface 1000BASE-X)
(19) Management interface 2 LED
(LINK)
(22) Ejector lever
(2) CF card slot (CF CARD)
(5) USB interface 1 (reserved)
(8) Management Ethernet interface
0 (10/100/1000BASE-T)
(11) Management Ethernet interface
0 LED (LINK)
(14) Management interface 2
(Electrical port of combo interface
10/100/1000BASE-T)
(17) Management interface 3 LED
(LINK)
(20) Management interface 2 LED
(ACT)
(23) Captive screw
i
BOM: 3123A0DY
(3) CF LED (CF)
(6) USB interface 0 (reserved)
(9) Management Ethernet
interface 1 LED (LINK)
(12) Management Ethernet
interface 0 LED (ACT)
(15) Management interface 3
(Optical port of combo
interface 1000BASE-X)
(18) Management interface 3
LED (ACT)
(21) RUN LED (RUN)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for H3C SR6600 SPE-FWM-200
Summary of Contents for H3C SR6600 SPE-FWM-200
- Page 1 Manual version: 6PW101-20141219 BOM: 3123A0DY H3C SR6600 SPE-FWM-200 Card Manual 1 Card identifier The card identifier SPE-FWM-200 is at the right corner of the front panel. 2 Introduction The SPE-FWM-200 card provides one console port, one CF card interface, two USB interfaces, two 10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
- Page 2 • Operating: 10% to 95%, noncondensing Ambient relative humidity • Non-operating: 5% to 95%, noncondensing Compatible device models H3C SR6600 routers System software version See the release notes that come with the card. Table 2 Console port specifications Item Specification...
- Page 3 Manual version: 6PW101-20141219 BOM: 3123A0DY Item Specification Transmission distance 100 m (328.08 ft) • 10 Mbps, half/full duplex • 100 Mbps, half/full duplex Operating mode • 1000 Mbps, full duplex Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module Connector Interface standard 802.3, 802.3u, and 802.3ab...
-
Page 4: Installing The Card
Manual version: 6PW101-20141219 BOM: 3123A0DY Status Description No link is present on the port. GE/Combo copper port Steady green A link is present on the port. (LINK/ACT) Flashing yellow The port is sending or receiving data. No power is input, or the card is faulty. Steady green The system is not operating correctly. -
Page 5: Software Upgrade
Log in through the card's Web interface, console port, Telnet, or SSH. • H3C recommends that you log in to the card from the router's CLI the first time you access the card. This section includes a procedure for logging in from the router's CLI. For more information about other login methods, see H3C SecBlade II Firewall Cards Configuration Guide.
