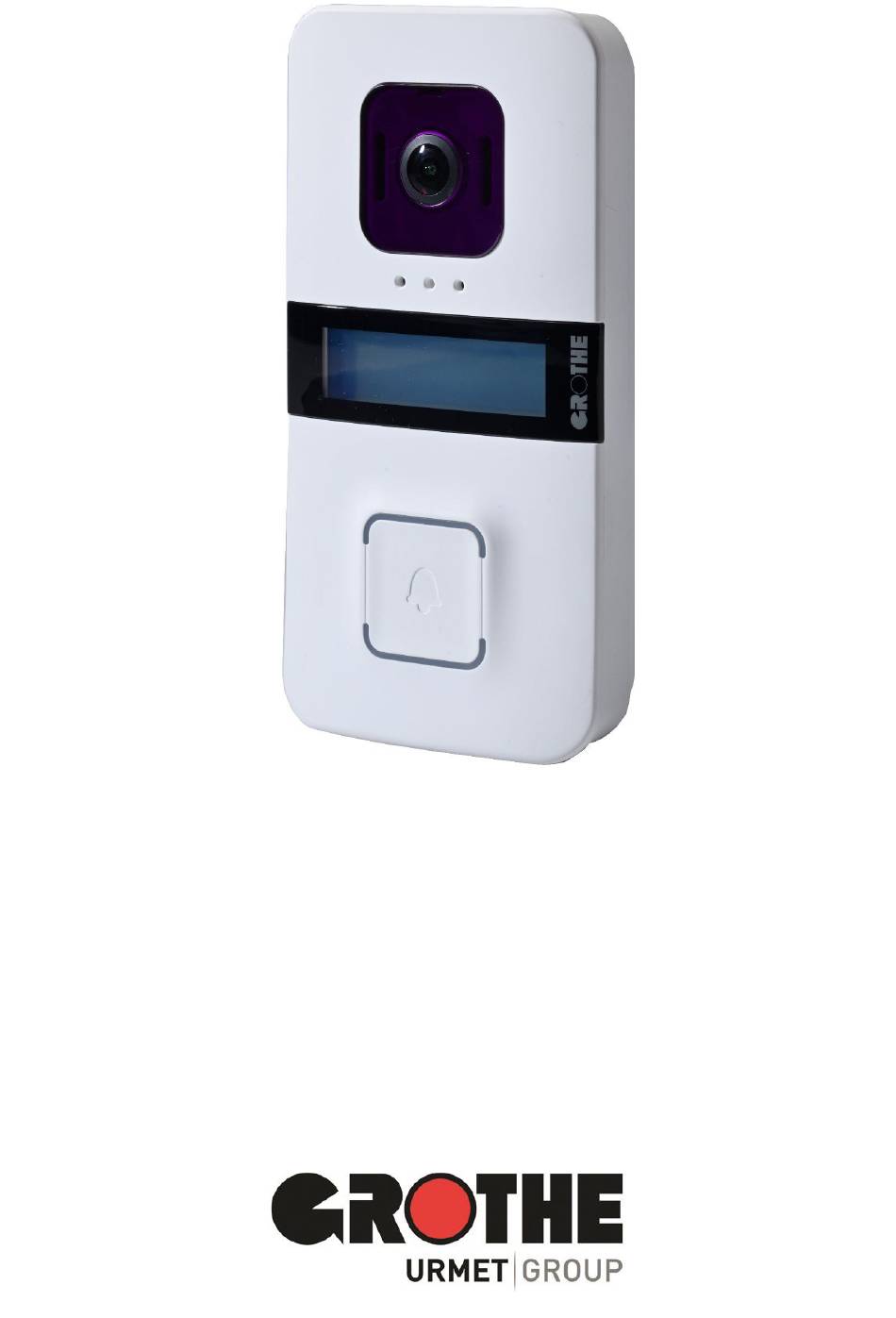

- Page 1 WiFi door station VIDOORA Item number 7540x Installation and operating instructions...
-
Page 2: Table Of Contents
Content Introduction ................................3 Scope of delivery ................................3 Verify delivery ................................3 Description of the components ..........................4 3 B M ounting ................................... 8 Wall mounting ..............................8 Mounting on flush-mounted box ........................9 4 C C o nfiguration ................................11 Register or create a user account on sip.urmet.com .................. -
Page 3: Introduction
1 Introduction Thank you for purchasing our WLAN door station VIDOORA. We ask you to read this manual carefully before installation and commissioning. Please also refer to the relevant sections (see table of contents / glossary) before making any changes to the device. Since the software may be updated at any time, the contents of this manual are subject to change without notice. -
Page 4: Description Of The Components
2 Description of the components View of the front side Figure 1: Front view View of the back Figure 2: Rear view VIDOORA Installation and Operating Instructions Page | 4... - Page 5 View of the underside Figure 3: Bottom view View circuit board Figure 4: Overview circuit board Electrical connections (power supply / relay) 1. Power supply 12 V DC or 8 - 12 V AC 1 B D oor opener re lay relay for connection of an 2 B S e cond electromechanical gong...
- Page 6 Sabotage contact SD card • The SD card slot is located at the top edge of the door On the board of the VIDOORA door station there is a sabotage contact which sends an alarm message as a station on the circuit board at the rear. push message to the CallMe App as soon as a •...
- Page 7 Viewing angle of the camera Figure 8: Camera viewing angle Accessible communication on system status The VIDOORA door station offers functions that provide great support in everyday life, especially for people with hearing or visual impairments. The door station informs the user about the system status 1.
-
Page 8: M Ounting
M ounting The VIDOORA door station can be mounted on the Wall mounting house wall in two ways. Select the mounting type The back of the enclosure is mounted directly to the wall. that suits you and follow the instructions in the Mounting on flush-mounted box corresponding subchapter. -
Page 9: Mounting On Flush-Mounted Box
9Connect power suppl y Connect the door station to the power supply. Observe the connections and voltage ranges as shown in the table. MPORTANT Connection to the upper terminal ~ (+) Connection to the lower terminal ~ (-) Voltage ranges for DC voltage 12 V DC Voltage ranges for AC voltage 8 - 12 V AC, 50 Hz... - Page 10 Placement and mounting on the flush-mounted box • Select a location in the entrance area with an unobstructed view of the desired camera image section (see also illustrations Viewing angle). Important: The wall should be flat. • Mounting 150 to 155cm from the floor. (lower edge of the VIDOORA door station Please adhere to this specification as far as possible so that the camera's viewing angle is optimally utilised.
-
Page 11: C O Nfiguration
Configure doorstation Check and adjust Configure the door station in the app CallMe Check that the integrated camera correctly detects app (see chapter 4). people in the entrance area. Good to know: If the result is not satisfactory, you can change the viewing area by using the mounting brackets, which are optionally available. - Page 12 Select “Register” from the menu and the following window will appear for you to enter your registration data. Figure 21: Registration page Urmet CallMe App 1. You are a new user, please enter your personal data including your e-mail address here. 2.
- Page 13 Password for new user account When creating a new user account for the CallMe app, keep Afterwards: the following guidelines in mind when assigning a • tick the boxes next to "Terms of use" and password: "Privacy policy regulations" to confirm your •...
-
Page 14: Configuration In The Callme App
Manage user account In this menu you can check the account settings and change your password. Figure 26: Password change Figure 24: User settings Figure 25: User profile 4.2 Configuration in the CallMe app You must be registered in the CallMe app to be able to configure your door station in the app. Please refer to chapter 4.1 on how to create a user account or log in to the CallMe app. - Page 15 At the door station Switch on the power supply of the door station. ATTENTION: When the device is switched on for the first time, it is already in configuration mode (after approx. 30 seconds, the blue LED border of the bell push button starts to flash and you will see "Configuration" on the display.
- Page 16 WLAN password Enter the WLAN password if it is requested. The password consists of the last four characters of the WLAN name, repeated after the separator "-". Example (see Figure 33): 008D-008D Go back to the already open app if the connection was successful. Figure 33: Hotspot VIDOORA Set names Now define the name of the door station to be displayed on the smartphone for an...
- Page 17 Define WLAN time periods Set IP Addressing Option You can define up to two time Default: The device obtains its IP address via DHCP periods in which the WLAN Advanced: You assign the IP address manually. connection is automatically Continue with "Continue“ deactivated and reactivated, e.g.
- Page 18 Set relevant door station parameters You can define various additional parameters for the VIDOORA door station. Name tag Name that appears in the display (Two lines, max. 14 characters per line) Loudspeaker Volume of the loudspeaker in the door station DDA function Display and voice output for the system status (barrier-free communication)
-
Page 19: Allme App
C allMe App Urmet's CallMe app (version 3.0 and above) gives you multiple options as a registered user. You can: • receive a video call (picture and sound) or an audio-only call from a door station to see and hear or, in the case of an audio call, to hear only who rang. -
Page 20: Call Input
5.1 Call input On devices with Android system version 9 or lower On devices with IOS/Android system version 10 or • Your smartphone rings for one minute when you higher • Your smartphone rings when you receive a call receive a call. •... -
Page 21: Conduct A Conversation
Conduct a conversation As soon as you accept the call, communication with the visitor takes place via the smartphone's loudspeakers and microphone. In the call view you will see various selection options. Figure 44: Conversation Sound/voice quality Audio output Hands-free or via telephone handset Button for switching between hands-free and Voice quality indicator handset mode... -
Page 22: Display Camera Images
Mute Open door Button to mute the own audio channel. Open door button opens the front door • The microphone is active by default. Tap Button to open the gate at the entrance the icon to mute the microphone on your smartphone. -
Page 23: Missed Calls
Door station selection Self-activation If you have activated the "Self-activation" function, you will see the following Select which door station is to be view when the call used for the automatic switch- forwarding device has sent an image. Figure 47: Device selection Figure 48: Device selection Self-activation Once displayed, it is no longer possible to switch to the display of the next door station and the "Cameras"... -
Page 24: Alarm History
The list shows the last call that was not answered. • Using the drop down menu (" " for Android and ">" for IOS) you • you can display the chronology of missed calls from the door station. • A maximum of 30 missed calls are displayed. •... -
Page 25: Intercom Function Between Smartphones
5.6 Intercom function between smartphones Figure 54: Intercom "Intercom" Select the button in the app to use the intercom function. • Calls are forwarded to smartphones that are logged into the CallMe app with the same user account. • The call is also forwarded in broadcast mode to all smartphones that are logged in with the same user account. - Page 26 Receive calls and notifications only on the Wifi Manually disable / enable calls and notifications network To conserve the data • Position the slider on "Disable" to stop receiving volume of your calls and notifications. smartphone, set calls and • Position the slider on "Activate" to receive calls and notifications from your notifications again.
-
Page 27: Logging Out Of The User Account (Logout)
5.8 Logging out of the user account (Logout) • Tap the "Exit" button in the settings menu to log out of your user account. • This ends the connection with the CallMe app. • When you are logged out, you can no longer answer calls and receive notifications. - Page 28 We hope you enjoy using your VIDOORA door station! If you have any questions about the product, please contact our customer service. The manufacturer is not liable in any way for damage caused by improper use of the equipment described in this manual. Furthermore, the manufacturer reserves the right to change the contents of this manual without prior notice.
