- Page 1 QUICK GUIDE Installation and commissioning Wi-Fi door station...
-
Page 2: Table Of Contents
Contents Product data Technical data Preparing for assembly and configuration Registration and logging in Device configuration in CallMe app Calls in the CallMe app Barrier-free communication for system status Introduction Please read this quick guide thoroughly before installation and commissioning. Before making any changes to the door station, read the relevant sections of the quick guide. - Page 3 Checking the delivery Before anything else, please check the packaging and the contents for any visible damage. If you notice any damage on the packaging, please document it before opening the packaging. Open the packaging carefully, so that you can reuse it for a potential return shipment.
-
Page 4: Product Data

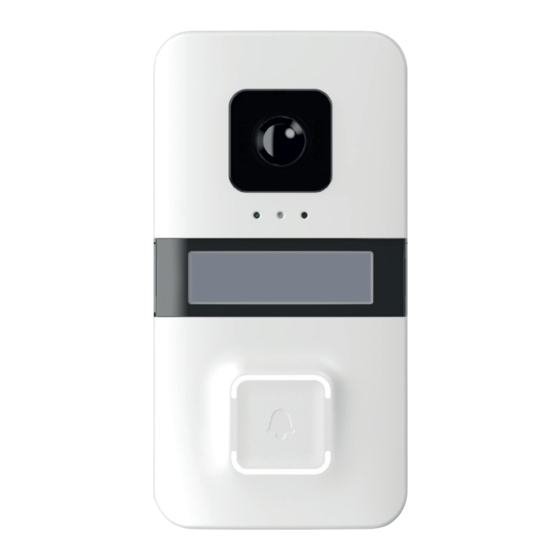

Product data Infrared LEDs (behind Camera the protective cover) Microphone Microphone Display Motion sensor Doorbell button LED border with blue lighting Housing screw and Housing screw Programming button Loudspeaker... - Page 5 Locking device Angle adapter Mounting hole (for wall assembly or Angle adapter) Mounting hole (for wall assembly) Mounting hole (for wall assembly or Locking device Angle adapter) Angle adapter QR code to scan in the app (e.g. #28B77C500009#) Power supply 12 ...
-
Page 6: Technical Data
Technical data Camera resolution HD 720 p ; 1280 x 720 px Compression standard H.264 Camera perspective 120° (H), 93° (V), 160° (D) Display size 128 x 32 pixels Wi-Fi frequency 2,4 GHz Wi-Fi standard 802.11 b/g/n Transmission frequency of 868.35 MHz transmitter MISTRAL / CALIMA Transmitter range... -
Page 7: Preparing For Assembly And Configuration
Preparing for assembly and configuration Positioning Select a position that enables the camera to capture all visitors at face-height. The perspective of the camera must also be taken into account. Horizontal perspective Vertical perspective 1 meter 120° 1 meter Recommended installation height (bottom edge of the door station, measured from the ground up): 1.50 ... - Page 8 Installation 1. While de-energized, connect the wires for the power supply. Upper terminal connection ~ (+) Lower terminal connection ~ (-) DC voltage range 12 V DC AC voltage range 8 – 12 V AC (50 Hz) 2. Switch on the power supply via the upstream fuse element. VIDOORA will switch to configuration mode after switching on for the first time (after approx.
-
Page 9: Registration And Logging In
Registration and logging in 1. Download the Urmet CallMe app from the Apple Store (iOS) or Play Store (Android) and create a new user account in the CallMe app. 2. Create a password with the following minimum requirement: At least 6 characters At least 1 uppercase letter At least 1 lowercase letter At least 1 number... -
Page 10: Device Configuration In Callme App
Device configuration in the CallMe app Make sure to use the end user’s account during the configuration! When the door station is ready, it sends all calls to the user account used in the configuration. Start configuration 1. Make sure the doorbell’ s border flashes blue and the word “Configuration”... - Page 11 Connecting 1. Connect your smartphone and the door station via Wi-Fi. To do so, exit the app (but do not close it) and go to the Wi-Fi settings on your smartphone. Select the hotspot of the door station (name: call_CFW_xxxx). Enter the password when prompted.
- Page 12 Define relevant door station parameters Name plate Name of the door station that appears in the display (Two lines, max. 14 characters per line) Loudspeaker Volume of the loudspeaker in the door station Display and voice output of the system status function (barrier-free communication) When the doorbell rings, an alpha tone sounds at...
- Page 13 To transfer all configured parameters to the door station, complete the settings with “Save” and in the next window with “Next”. After the data transfer, VIDOORA restarts and then connects to the specified network. The door station is ready for use with the CallMe app as soon as the name entered appears on the door station display.
-
Page 14: Calls In The Callme App
Incoming call Calls in the CallMe app Accept call For information on additional functions of the CallMe app and detailed instructions on the installation Show image steps, please refer to the installation and operating instructions. Reject call Accepted call Mute caller Open gate Bluetooth Wi-Fi signal quality... -
Page 15: Barrier-Free Communication For System Status
Barrier-free communication for system status System status information for people with hearing or visual impairments: Easily audible and understandable voice output Easily identifiable symbols on the display Ringing Prompt to Door active speak opens Indication on the display Speech “Calling “The door announce- now”... - Page 16 The manufacturer is in no way liable for damage caused by improper use of the devices described in these operating instructions. The manufacturer also reserves the right to change the contents of these instructions without prior notification. The information provided in these operating instructions was meticulously compiled and checked.
