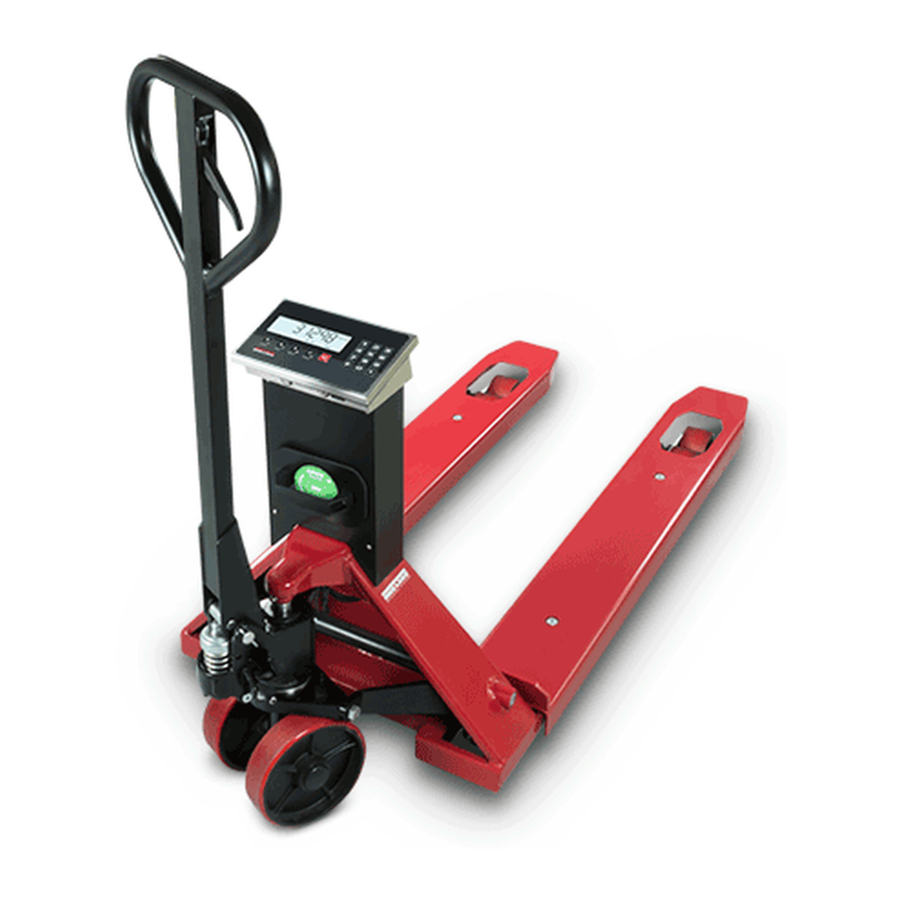

RL-HPJ Hand Pallet Jack Scale
Assembly Procedure
After unpacking, visually inspect to ensure all of the components in are included and undamaged. If any parts were damaged in
shipment, notify Rice Lake Weighing Systems and the shipper immediately.
For additional information, see RL-HPJ Hand Pallet Jack Scale Technical Manual (PN 183812).

Recommended Tools (Not Provided)

• 2.5 mm hex key
• 8 mm hex key
• Pliers

Indicator Stand Assembly

1. Cut the red zip tie holding the wire sleeve to the pallet jack chassis.
2. Place the indicator stand on the fork assembly, being careful not to pull or pinch the load cell wires
*The load cells of the pallet jack come wired to the indicator
3. Make sure the stand is properly supported and seated correctly.
4. Feed excess wire sleeve up into the indicator stand.
5. Remove the four screws that secure the front plate to the indicator stand using a 2.5 mm hex key
6. Secure indicator stand with four M10 x 15 mm screws and M10 washers using an 8 mm hex key
7. Reattach the front plate to the indicator stand, using the four previously removed screws
A

Battery Installation

1. Connect the wire connector inside the column to the battery.
2. Slide the battery into the indicator stand at a slight angle and turn counterclockwise to lock it in place.
November 11, 2020
B

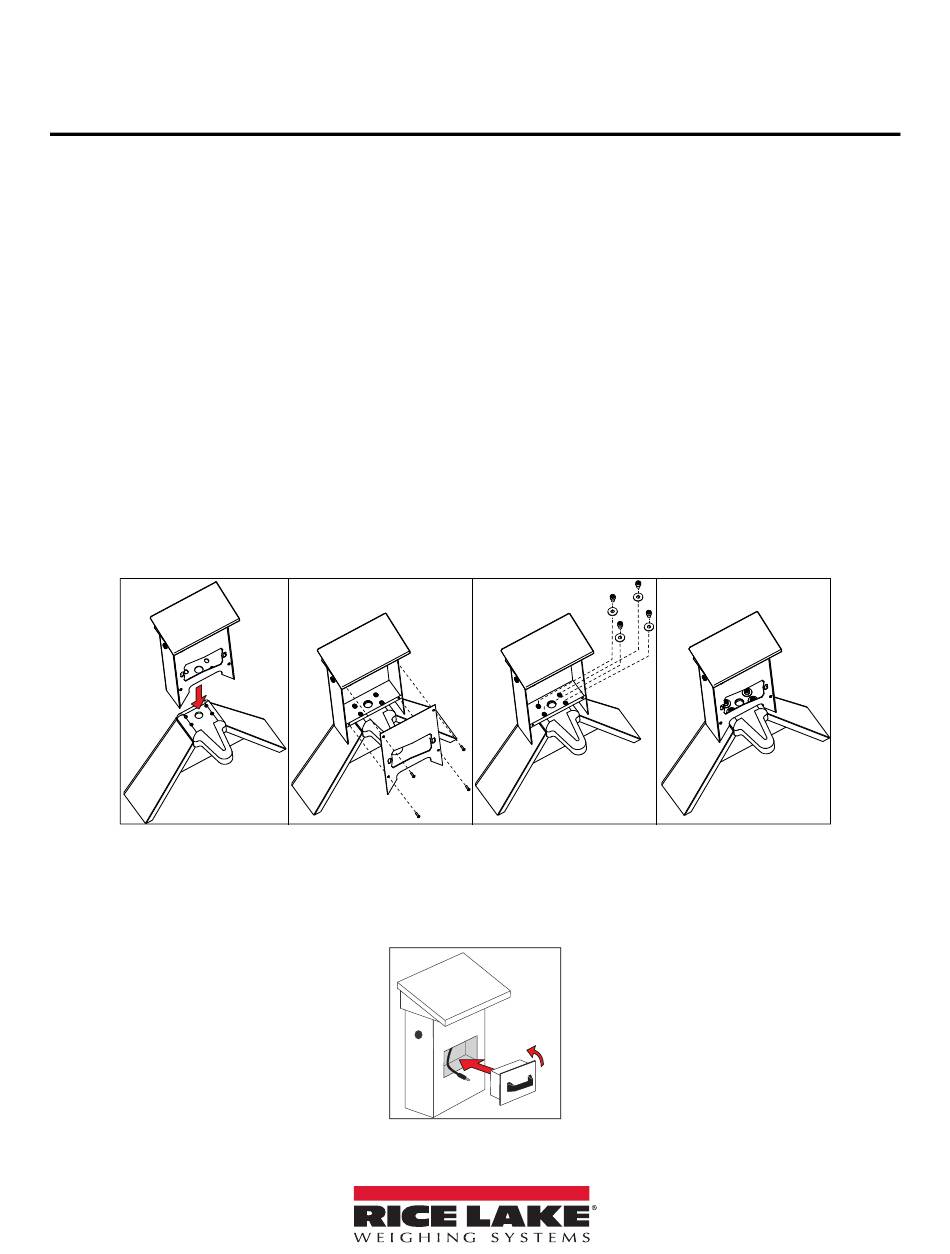

Figure 1. Indicator Stand Assembly
Figure 2. Battery Installation
C
(Figure 1–A).
(Figure 1–B).
(Figure 1–C).
(Figure 1–D).
D
PN 203698 Rev A
