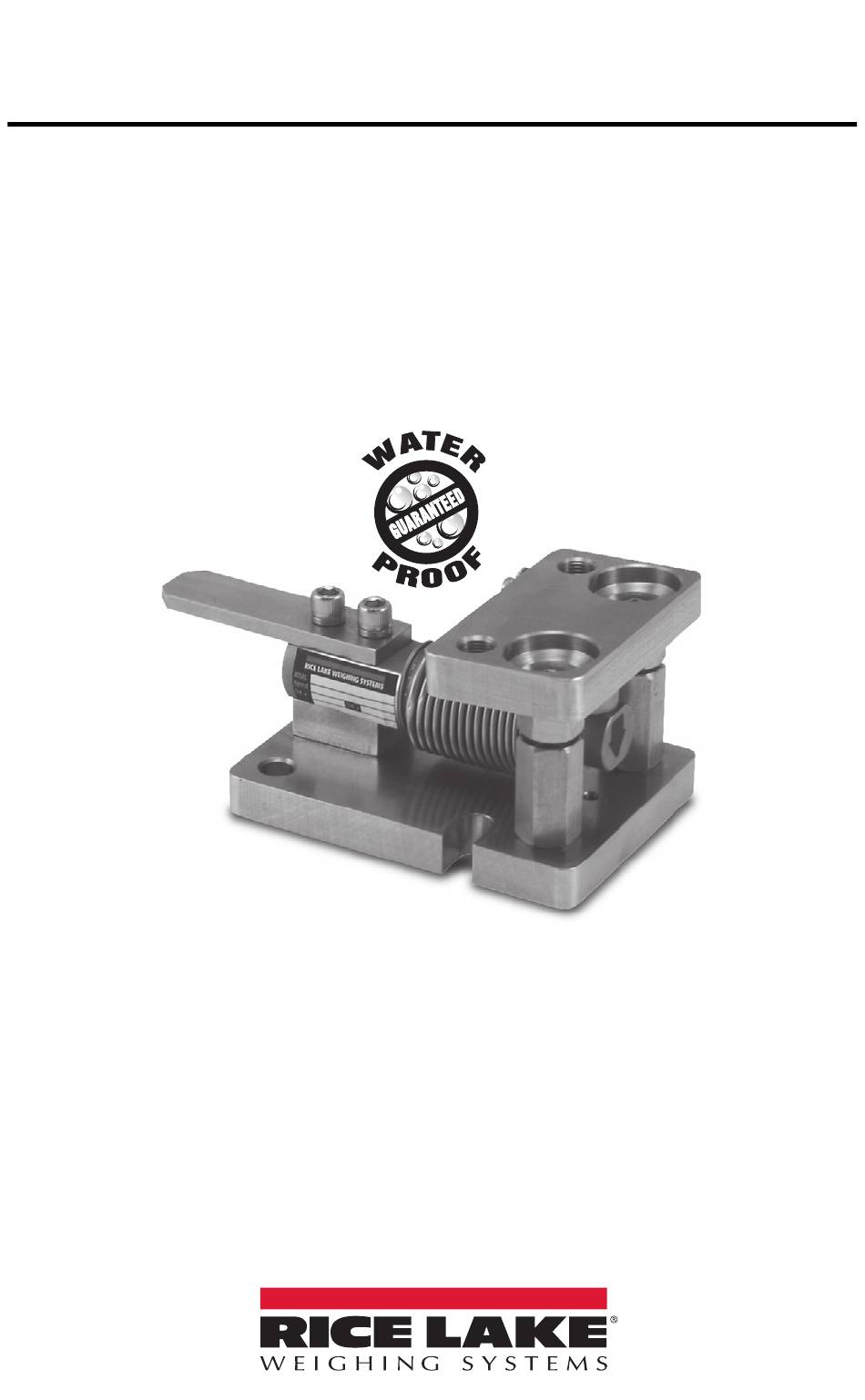

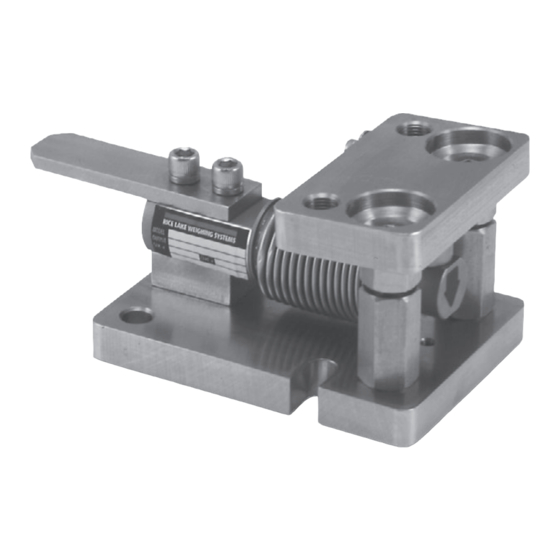

- Page 1 SURVIVOR RL1700 HE ® Weigh Module Kit Installation Manual May 8, 2020 PN 33318 Rev C...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Junction Box Connections, Adjustments & Calibration..8 Troubleshooting ................. 9 Maintenance and Replacement Parts........10 Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. - Page 4 SURVIVOR RL1700 HE Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Visit our website www.RiceLake.com...
-
Page 5: Introduction
The installation should be planned by a qualified structural engineer. Each installation is unique, and this manual is meant to serve only as a general guideline for installation. Manuals and additional resources are available on the Rice Lake Weighing Systems website at www.ricelake.com... -
Page 6: Safety
DO NOT use this product if any of the components are cracked. DO NOT exceed the rated load limit of the unit. DO NOT make alterations or modifications to the unit. Contact Rice Lake Weighing Systems for replacement manuals. Proper care is your responsibility. Visit our website www.RiceLake.com... -
Page 7: Mechanical Installation
The arrow on the load cell should point in the direction of the load. 6. All support points should be equally stiff so that they deflect by the same amount as the vessel is loaded. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Installing The Rl1700 He Module
SURVIVOR RL1700 HE Installing the RL1700 HE Module 0-250 kg Ground Strap Load Cell Bolt op Plate Cable Guard Plate Jacking Nuts Jacking Spacer Load Cell Load Cell Spacer Base Plate Side View Load Button Front View 500-5000 kg Load Cell Bolt... - Page 9 The threads in the top plate of the 5-250kg modules are 1/2”-20 N.F. threads. The Note threads in the top plate of the 500-5000kg modules are 3/4”-10 N.C. threads. © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 10 SURVIVOR RL1700 HE 8. Repeat steps 4, 5, and 6 for the remaining mounts. The vessel should now be supported on the mounts alone. 9. If necessary, move the vessel to its final position. Verify that there is no initial misalignment between the base plate and top plate.
-
Page 11: Load Cell Wiring
Blue +EXC Blue +EXC Black –EXC Black –EXC White +SIG White +SIG –SIG –SIG Bare SHIELD Bare SHIELD Green +Sen Green +Sen Yellow -Sen Gray -Sen Table 3-1. Load Cell Wiring © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Junction Box Connections, Adjustments & Calibration
4.0 Junction Box Connections, Adjustments & Calibration 1. Refer to Junction Box manual for trimming details. 2. Refer to indicator manual or “Technical Information” section in Rice Lake Weighing Systems’ Load Cell Product Selection Guide (PN 22054) for system calibration details. Visit our website... -
Page 13: Troubleshooting
Replace load cell with a load cell simulator. Alternate so that each load cell is individually disconnected and replaced with a simulator. If there is a problem with a particular load cell, the symptom should disappear when that load cell is disconnected and replaced with simulator. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Maintenance And Replacement Parts
SURVIVOR RL1700 HE Maintenance and Replacement Parts 2 plcs Item No. Part No. Description Rated Capacity: 5 - 250 kg 33036 Top Plate, Stainless Steel 125661 Coupling Nut, Stainless Steel 33035 Base Plate, Stainless Steel 33037 Load Cell Spacer, Stainless Steel... - Page 15 31252 Load cell, RLHTO-5000 kg, OIML C3 33045 Cable guard plate, stainless steel 33047 Load cell bolt set, stainless steel 33046 Ground strap (includes fasteners) Table 6-1. Repair Parts List (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 16 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
