Eventide H90 Harmonizer Quick Reference Manual page 4

I/O
Line Lvl Indicators
LED grid indicates which
Inputs or Outputs are set
for line level signals.

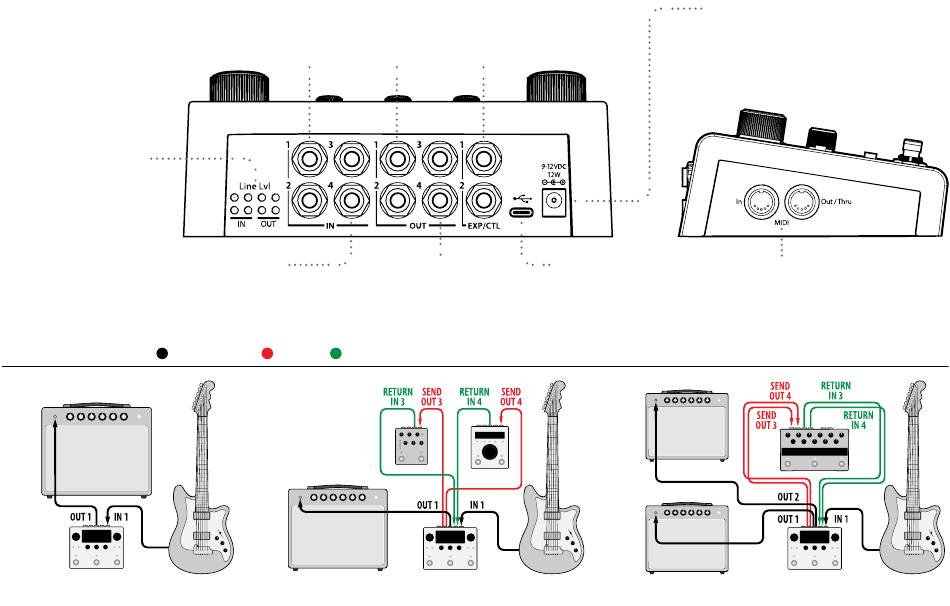

INSERT ROUTING Main Path
Simple Effects Pedal Setup
2
Inputs 1/2 Outputs 1/2
Main mono or Main mono or
stereo Inputs. stereo Outputs.
Inputs 3/4 Outputs 3/4
External Insert return, External Insert send, or
or Input for Dual Path 2. Output for Dual Path 2.
Send Return
Exp/Ctl 1/2
Inputs for expression
pedals or aux switches.
USB-C
Connect to your
computer for control,
updates and MIDI.
Two Mono Inserts
Power
Power requirement is 9–12VDC, 12W,
center positive (+), 5.5mm/2.5mm jack.
MIDI In and Out/Thru
Receive, transmit and pass through
MIDI program changes, control
changes and clock.
One Stereo Insert
