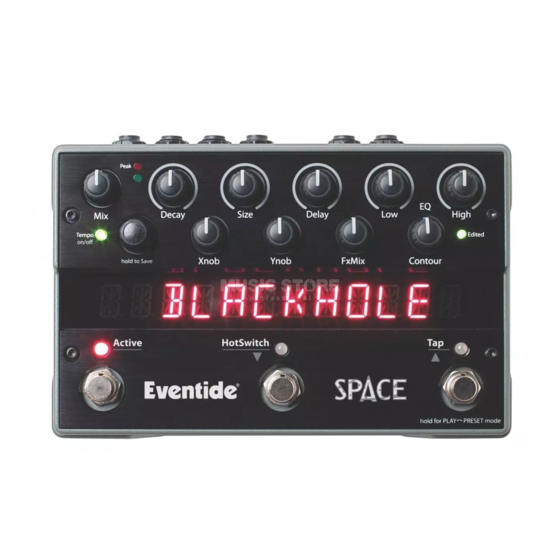

User
Guide
WARNINGS
Use only with supplied power supply.
Avoid spilling liquids onto/into the unit.
Do not expose to excessive heat or moisture.
Do not open – there are no user serviceable parts inside.
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Complete User Guide Part #159029 Rev C
Contents Part #142335 Rev C
Eventide and Harmonizer are registered trademarks of Eventide Inc. ©2014 Eventide Inc.
`

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Space and is the answer not in the manual?

Questions and answers

Related Manuals for Eventide Space

Summary of Contents for Eventide Space

  • Page 1 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Complete User Guide Part #159029 Rev C Contents Part #142335 Rev C Eventide and Harmonizer are registered trademarks of Eventide Inc. ©2014 Eventide Inc.

  • Page 2: Table Of Contents

    User Guide Table of Contents WARNINGS ......................1 Introduction ......................5 A Few Words of Advice ....................5 Key Features ........................5 The Website ........................5 Overview ........................ 6 The Basics ......................6 Connections ......................9 Typical Setups ....................... 10 Bypass .........................
  • Page 3 Organizing Your Presets ....................31 Auxiliary Switches ....................32 MIDI ........................32 Tempo ......................... 33 Tempo ON/OFF ......................33 Tap Tempo ........................33 Global Tempo ....................... 33 Fine-tuning Tempo and Parameters ..............33 Tempo .......................... 33 Parameters ........................33 Dumping (Backing-up) Presets and System Settings ..........34 Restoring Presets and System Setting ................

  • Page 4: Introduction

    Introduction Congratulations on choosing an Eventide stompbox. For years we’ve dreamed of putting our rack mount effects in the hands of performing musicians and, in particular, at the feet of guitar players. is the latest realization of that dream; bringing true studio-quality audio, massive processing power, world-class effects, and unmatched flexibility to your live sound.

  • Page 5: Overview

    Space User Guide The Basics Overview The Basics There are a few basic concepts that you’ll have to grasp to use successfully. If you read nothing else, please read this section. The Algorithms offers a wide range of reverb-type effects and comes loaded with 100 Preset effects.
  • Page 6 Space User Guide The Basics saving Presets will be found later in this User Guide. Refer to the Preset Guide for details on the Factory installed Presets. Using the Encoder to Select Presets Presets can be loaded by simply turning the Encoder and stopping at the Preset that you’d like to use.
  • Page 7 Space User Guide The Basics Using Preset Mode In Preset Mode the Billboard displays the current Preset Number and Name. If the Preset is Active (not Bypassed), the Left Footswitch LED is solidly lit. To bypass the currently loaded Preset, press the Left Footswitch. The LED will turn OFF and the Billboard will briefly display [BYPASS] and then display the Preset Number and Name.

  • Page 8: Connections

    Space User Guide Connections Connections is designed to be flexible and can support both instrument and line-level inputs and outputs. Rear panel toggle switches allow you to independently select input and output levels. Audio Inputs and Outputs accept standard mono (unbalanced) ¼” phone plugs.

  • Page 9: Typical Setups

    Space User Guide Connections Typical Setups Here are some suggested ways of connecting to your rig and suggested I/O level switch setting Guitar > > Amp - Mono In/Mono Out This is the simplest way to connect . Connect your guitar cable to...
  • Page 10 Space User Guide Connections Guitar > > Amp1/Amp2 – Mono or Stereo In/Stereo Out Connect your guitar cable to Input 1 and a cable from Output 1 to one amp and a second cable from Output 2 to the other amp. Input Level switch (In Lvl) should be set to GUITAR and Output Level switch (Out Lvl) set to AMP.
  • Page 11 Space User Guide Connections Guitar > Amp Effects Send > > Amp Effects Return If your Amp has an Effects Loop, you can connect ’s Input to the Amp Effect Loop Send ’s Output to the Amp Effect Loop Return. Most guitar amp’s Effects Loops run at Line Level so set ’s Input and Output Level Switches to “Line.”...
  • Page 12 Space User Guide Connections Mixer Effects Send> > Mixer Effects Return When connecting to a Mixer, set ’s Input and Output Level Switches to “Line”.

  • Page 13: Bypass

    Space User Guide Setup Bypass It’s important to select the Bypass function that works best with your setup. gives you the choice of Bypass type – DSP Bypass, Relay Bypass or DSP+FX Bypass. ’s default Bypass setting is DSP Bypass.

  • Page 14: Killdry - Send/Return Loop

    Space User Guide Setup Note: Using MIDI Program Change to control Bypass - MIDI Program Change is typically used to load a preset but it can also be programmed to directly control the unit’s BYPASS setting. See the System Mode [MIDI] section for details.

  • Page 15: Setting Output Levels

    Space User Guide Setup Setting Output Levels Preset output levels can be adjusted in either Play or Preset Mode. To set output level: Press Left Footswitch to Bypass the Preset. Press and hold the Left Footswitch, the Preset will now be Active.

  • Page 16: Algorithms & Presets

    Space User Guide Algorithms Algorithms & Presets ’s Presets are based on a set of reverb-type audio processing algorithms. An algorithm is the underlying structure of the effect that the Preset is built upon. Please refer to the included Preset Reference Sheet and to our on-line documentation for descriptions of ’s Presets.
  • Page 17 Space User Guide Algorithms the sound of real-world enclosures and devices like halls and rooms and plates and springs. Other Algorithms are designed to creatively combine reverb effects with other signal processing functions such as tremolo, modulation, distortion, pitch change, resonance and reversal to create unique effects well beyond the confines of simple reverb.
  • Page 18 The controls allow for precision tweaking of early reflections, late reverb, and EQ. Room is the workhorse Algorithm for placing a sound in a realistic space or adding that subtle fattening that isn’t immediately noticed but is always immediately missed.
  • Page 19 Space User Guide Algorithms to the [TENSION] and [NUMSPR] knobs to control the amount of ‘sprionginess’. For good measure, we’ve also included a tube amp style tremolo at the reverb input. Mix – [VERBMIX]: wet/dry between reverb and tremolo dry signal Decay –...
  • Page 20 ModEchoVerb is based on a popular reverb structure from the Eventide H8000 that brought about such presets as "Echo Space of God" and "Glorious Flange Canyon." It feeds the output of an infinite reverb into an infinite feedback delay and slathers on an extra helping of modulation.
  • Page 21 Xnob – [MOD-DPTH]: the modulation depth, arbitrary 0-100 MangledVerb While Space produces many beautiful sounds, we recognize the universe is a chaotic and often violent place, so in the spirit of the yin and yang, we included MangledVerb from the Eventide Eclipse.
  • Page 22 Space User Guide Algorithms reversal," where loud signals are squashed, but quiet signals are amplified. In DynaVerb, the Omnipressor can dynamically control the output of a reverberator based on, either the input signal for maximum control, the reverb output for incredible chaos, or any mixture of the two.

  • Page 23: Catchup

    Space User Guide Catchup Catchup You would expect that when you turn a Parameter Control Knob, the parameter’s value would change instantly and, unless Catchup is enabled, it does. Instant changes, however, may not be desirable for all situations and users. Consider the following example: You’ve just loaded a Room-based preset and the preset’s Decay is set to 1 sec.

  • Page 24: Expression Pedal

    Expression Pedal should be a simple linear resistive potentiometer (“pot”) with a maximum value of between 5k Ohms and 25k Ohms. Refer to www.eventide.com/AudioDivision.aspx for information on recommended expression pedals. Because different pedals can have different electrical characteristics, it is a good idea to “calibrate”...
  • Page 25 Space User Guide Expression Pedal Since any number of parameters can be programmed to respond to the pedal, it’s important to learn how to un-assign parameters. Let’s say that you’ve programmed the Pedal to control Mix from 50% to 100% and Delay from 10 milliseconds to 100 milliseconds. Now, you’d like to un-assign Delay and have it fixed at 20 milliseconds rather than have it change when the Pedal moves.

  • Page 26: The Footswitches - Play And Preset Mode

    Space User Guide The Footswitches The Footswitches – Play and Preset Mode ’s footswitches are multi-purpose and operate in one of three modes, Play Mode, Preset Mode, and System Mode. In normal use, is in either Play Mode or Preset Mode. System Mode is used to set up MIDI, external controls and various system parameters.

  • Page 27: Tap Footswitch

    Space User Guide The Footswitches HotSwitch Programming In Play Mode, the HotSwitch is always active and programmable, i.e., HOT. To program, press and hold the Middle Footswitch (HotSwitch) and turn any combination of the parameter Control Knobs to achieve the sound that you desire for the HotSwitch. This will be the sound you’ll hear when the HotSwitch RED LED is lit.

  • Page 28: Preset Mode

    Space User Guide The Footswitches Preset Mode In Preset Mode, the Billboard displays the Preset Number followed by the first 10 characters of the Preset Name of the currently loaded Preset. The Left Footswitch is used for loading and Bypassing Presets.

  • Page 29: Saving Presets

    Space User Guide The Footswitches grouping your Presets, you can get through a song or set without having to click through all 100 Presets. Remember, when saving Presets, group them to best suit your needs. The factory default sets the number of active Presets to 100 (Preset#1 to Preset#100). To...

  • Page 30: Organizing Your Presets

    Preset Number field. Pressing the Left Footswitch again will jump to the last character. Note: A phantom space is always present at the end of the name to allow characters to be added past the end. This cannot be deleted but will be removed on exit.

  • Page 31: Auxiliary Switches

    2) Toggle switches are not supported. Only momentary switches will work properly. 3) Simultaneously pressing the switch assigned to the Tip and the switch assigned to the Ring will trigger the function assigned to the Tip+Ring. Refer to www.eventide.com/AudioDivision.aspx for information on recommended Aux Switches MIDI MIDI In, Out, Thru are supported.

  • Page 32: Tempo

    Space User Guide Tempo Tempo Tempo ON/OFF Tempo is turned ON or OFF by momentarily pressing the Tempo Button. When Tempo is ON, the Tempo LED flashes at the Tempo rate. With Tempo OFF, the Tempo LED is OFF. Tap Tempo In Play Mode, the Tap Footswitch can be tapped to set the tempo.

  • Page 33: Dumping (Backing-Up) Presets And System Settings

    Turn the Encoder to choose SysEx ID from [1] to [16]. Press and hold the Encoder and Right Footswitch simultaneously for a few seconds to exit System Mode. Note: The Eventide Update Utility (EUU) will only work if SysEx ID is set to 1...

  • Page 34: System Mode

    User Guide System Mode System Mode System Mode is used for settings that apply to the overall system such as the Bypass, Aux Switch, MIDI, etc. To Enter/Exit System Mode Press and hold the Encoder and Right Footswitch simultaneously for a few seconds to enter and exit the System Mode.

  • Page 35: System Menu Tree

    User Guide System Mode System Menu Tree The system mode is divided into five categories [BYPASS], [AUX SWITCH], [MIDI], [GLOBAL], and [UTILITY] which are the top-level menu items that appear when entering system mode. In the following, factory default settings are indicated in (bold) [BYPASS] –...
  • Page 36 User Guide System Mode flashing (if it’s not, press the Left Footswitch to select this field) showing this to be the selected field for editing. To assign the switches, first select the parameter or function (the destination) that you want to externally control (Intensity for example) and then select the Aux Switch that you want to control it with (the source).
  • Page 37 User Guide System Mode When a Parameter Control Knob designator is displayed (KNOB0… KNOB9), pressing the Left Footswitch will display [MIN VAL]. Turn the associated Parameter Control Knob or the Encoder to set the minimum value. For example, if KNOB0 was selected, turn the Mix Control Knob to set the minimum value.

  • Page 38: [Midi] - Midi Functions

    User Guide System Mode [MIDI] - MIDI Functions After entering System mode, turn the Encoder to select [MIDI], and then press the Encoder to enter the MIDI functions settings mode. Turn the Encoder to scroll through the MIDI functions including MIDI Program maps, MIDI channel, MIDI Data Dumps, etc.
  • Page 39 User Guide System Mode After you’ve selected a Parameter Control Knob, you can set the parameter range that the MIDI CC will control by setting minimum and maximum parameter values. When a Parameter Control Knob designator is displayed (KNOB0… KNOB9), pressing the Left Footswitch will display [MIN VAL].
  • Page 40 User Guide System Mode [XMT CC] – Control knobs transmit MIDI Continuous Control The default patch is as follows: PEDAL>C15,KNOB0>C22,KNOB1>C23,KNOB2>C24,…,KNOB9>C31 XMT CC makes it possible to use ’s Expression Pedal, Control Knobs and Aux Switches as MIDI controllers. Here’s how it works: Press the Encoder to select XMT CC.
  • Page 41 MIDI Out jack or USB to control an external device - e.g., another Eventide Stompbox, an Eventide Eclipse, an Eventide H8000FW, etc. To Create a MIDI Program Change transmit map, Press the Encoder to access the MIDI transmit map for editing.
  • Page 42 User Guide System Mode [CTL XMT] – MIDI Continuous Controller Transmit Enable (ON, OFF) Press the Encoder to select. Turn Encoder to set MIDI Continuous Controller transmit ON or OFF. This setting determines if Parameter Knobs transmit MIDI control messages. Press the Middle Footswitch once to back-up one level to MIDI menu.

  • Page 43: [Global] - Global Settings

    User Guide System Mode Press the Middle Footswitch once to back-up one level to MIDI menu. Press the Middle Footswitch twice to go to the top level System menu. [MIDICLK OUT] – MIDI Output Clock Enable (ON, OFF) Press the Encoder to select. Turn Encoder to set MIDI Clock Transmit ON or OFF. If ON, can be used as a MIDI Clock source.
  • Page 44 User Guide System Mode [KNOB MODE] – Control Knob Mode (NORMAL, CATCHUP, LOCKED) Press the Encoder to select. Turn the Encoder to select. With CATCHUP selected, the Parameter Control Knobs must be turned to the position which corresponds to their current parameter value before they become active. The Catchup feature is a good way to prevent inadvertent or abrupt changes to your sound.
  • Page 45 User Guide System Mode [SERIAL NO] – Serial Number Press the Encoder to display your ’s unique serial number. You’ll need to know this number to request support and to download software updates. Press the Middle Footswitch once to back-up one level to UTILITY menu. Press the Middle Footswitch twice to go to the top level System menu.

  • Page 46: H9 Control

    USB cable and launch the application. H9 Control will then ask for your Eventide user name to ensure that the device is registered to you (if you have not already registered your pedal or created an Eventide account, please do so at eventide.com).

  • Page 47: Restoring Factory Settings/Software Updates

    Both of these applications, and information on how to use them, are available for free download from www.eventide.com/AudioDivision.aspx Note: For software versions earlier than 5.0, the Eventide Update Utility is the only method for updating the software on your pedal. To update ’s software with the Eventide Update Utility;...

  • Page 48: Midi Implementation Chart

    User Guide MIDI Implementation Chart MIDI Implementation Chart Mode 1: Omni On, Poly Mode 2: Omni On, Mono O=Yes Mode 3: Omni Off, Poly Mode 4: Omni Off, Mono X=No Function Transmitted Recognized Remarks Default 1-16 1-16 Basic Channel Changed 1-16 1-16 Default...

  • Page 49: Specifications

    User Guide Specifications Specifications Analog I/O Input Impedance 500k ohms (mono) 1 Meg (stereo) Output Impedance 470 ohms Recommended Load Impedance 10k ohms or greater Connectors Input 1 (mono) - ¼ inch mono phone jack Input 2 - ¼ inch mono phone jack Output 1 (mono) –...
