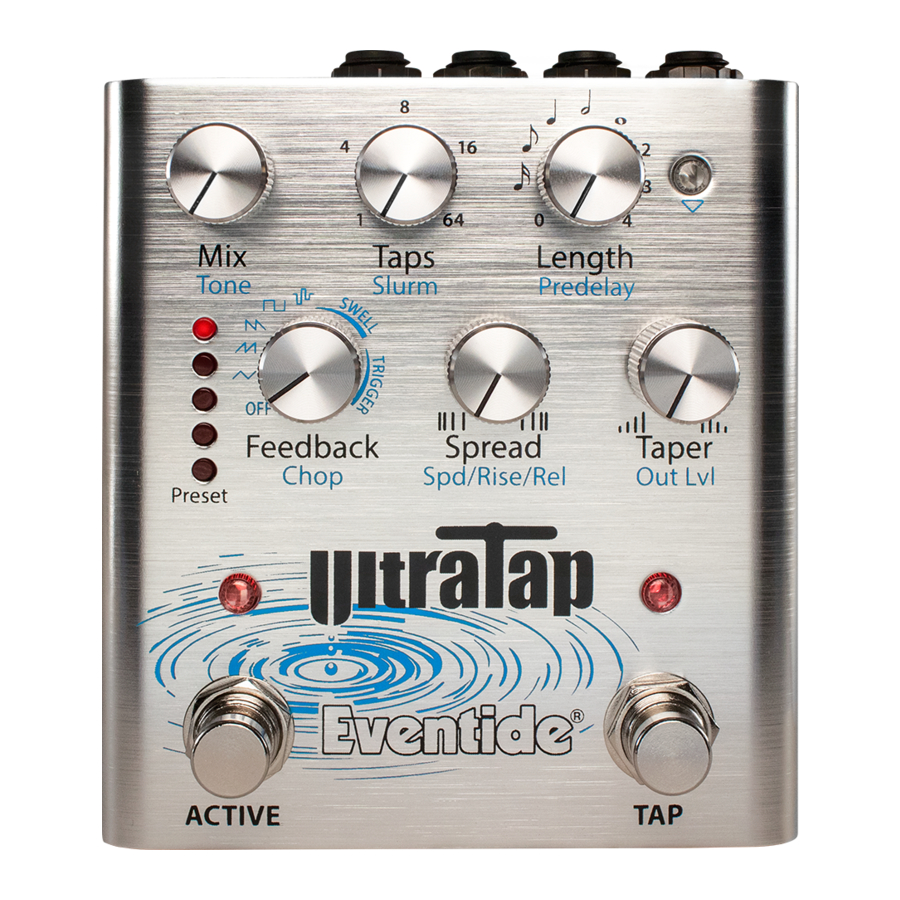

Eventide UltraTap Pedal Quick Reference Guide

Morphing from Heel to Toe

An Expression Pedal can be used to change any grouping of knob Parameters in one smooth gesture. Programming an Expression Pedal is easy. You simply need to set end points for Heel & Toe. Here's how:

1. Press Pedal fully Heel down.
2. Adjust any combination of the Parameter control knobs.
3. Press Pedal fully Toe down.
4. Adjust any combination of the Parameter control knobs.
5. Save it or lose it. See "Saving a Preset."

Clear Expression Pedal Mappings
To clear the Expression Pedal mappings for the knobs, hold the ACTIVE Footswitch and, while holding, press the ACTIVE Button until the Preset Ladder LEDs flash twice.

NOTE: To use an Expression Pedal, the Exp Pdl Jack must be set to either [EXP] or [EXP + AUX]. See System Setup to select.

MIDI Messages

Save Preset

Enter Save Mode by pressing and holding the TAP Button, then a MIDI program change message will save a Preset to the Preset Slot of the given value 1-127.

Load Preset

MIDI program change message loads the Preset from the Preset Slot of the given value 1-127.

Note: The bottom two Ladder LEDs will be lit when Presets 6–127 are selected via MIDI or Device Manager.

Receive/send using the USB Port or Exp Pdl Jack*.

CC 4: Expression Pedal

CC 9: TAP TEMPO

CC 14: ACTIVE/BYPASS (>=64 is Active)

Parameters: CC Messages Map

*Use a MIDI Converter Box or a DIN to TRS or TRS cable

System Setup

Enter System Setup

To access these Global Settings, apply power while holding ACTIVE Footswitch andbutton.

Top two LEDs light when in System Setup. Changes are stored as they are made. Cycle power to exit System Setup.

Set MIDI Channel

Set Bypass Mode

Catch Up ON/OFF

Set Exp Pdl Jack

[EXP+AUX]
TIP = Expression Pedal RING = TAP TEMPO

[TRIPLE AUX]
TIP = Increment Preset
RING = Decrement Preset
TIP + RING = Load Preset

Note: Times out after a few seconds

[MIDI BOX]
Receive and Send MIDI via a MIDI Converter Box (Tip Active)

[MIDI TRS]
Receive MIDI directly with a DIN to TRS or TRS cable.

Presets - 5 On Board, 127 Via MIDI

The currently loaded Preset is indicated on the Preset LED Ladder. When a Preset is modified the Preset LED blinks once.

Catch Up Knob Function

When a Preset is loaded or when toggling between Parameters using, Knob positions will not align with their current Parameter values. As a result, turning a knob will likely cause an abrupt change in the sound.

With Catch Up ON, the sound does not change until the Knob is moved to the position corresponding to the current value. The LED Ladder indicates whether the knob must be turned CCW (top LED blinks) or CW (bottom LED blinks). The LED flashes more rapidly as the knob approaches the value set by the Preset. All five LEDs blink once when the knob matches the stored Parameter value.

NOTE: To enable/disable Catch Up Knob Function, power up in System Setup mode and press TAP Footswitch to toggle ON/OFF.

TAP Footswitch Functionality

Press & Hold the TAP Footswitch to toggle between Tap mode and Preset Select mode.

Press the TAP Button/LED to toggle between Tap Time and Tap Tempo as follows:

UltraTap Signal Flow

Restore Factory Settings: Boot pressing ACTIVE Footswitch & ACTIVE Button

Software Update: Boot pressing TAP Button & TAP Footswitch

Device Manager Software
eventideaudio.com/edm

Instructional Videos
eventideaudio.com/UltraTap-pedal

Technical Support
eventideaudio.com/support

Follow us on Social

UltraTap QRG for Firmware v1.0+| Eventide Part #141346 Rev A. Eventide is a registered trademark of Eventide Inc. © 2021 Eventide Inc.
