- Page 1 QUICK REFERENCE GUIDE...
- Page 2 Eventide Part# 141360 Rev A Bluetooth® and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc. Eventide is a registered trademark of Eventide Inc. Harmonizer is Eventide’s trademark for a special effects device incorporating pitch change. © 2022 Eventide Inc. All rights reserved.

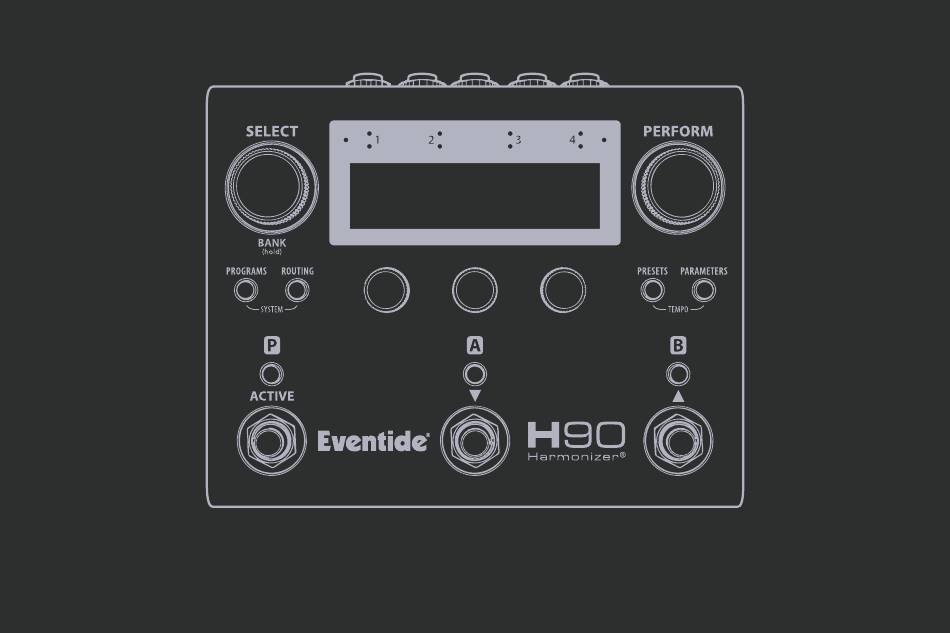

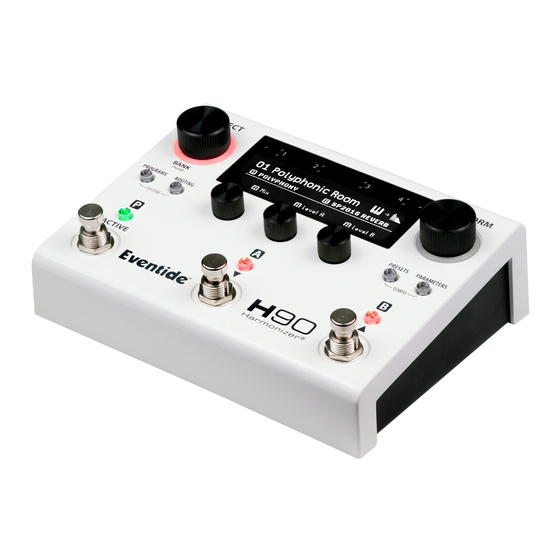

- Page 3 Overview Play Modes Select / Bank Perform Bluetooth® LED Input Meters Perform Knob Cue and load from the Customize footswitches Press to enter Playlist. (pp. 4–5) for live performance. (p. 6) Perform Mode. Select Knob Press to enter Select/Bank Mode. Edit Modes Programs Routing...
- Page 4 Inputs 1/2 Outputs 1/2 Exp/Ctl 1/2 Power Main mono or Main mono or Inputs for expression Power requirement is 9–12VDC, 12W, stereo Inputs. stereo Outputs. pedals or aux switches. center positive (+), 5.5mm/2.5mm jack. Line Lvl Indicators LED grid indicates which Inputs or Outputs are set for line level signals.
- Page 5 Insert Routing in Series (p. 8) Global I/O Configuration Insert (Default) Dual IN 1/2 OUT 1/2 I/O 3 I/O 4 IN 1 Main Input Left (Mono) Path 1 Input Left (Mono) IN 2 Main Input Right Path 1 Input Right IN 3 Insert 1 Return Path 2 Input Left (Mono)
- Page 6 Select The Playlist Perform Knob The Playlist is the currently enabled User Program Turn to adjust List for Select/Bank Modes. The H90 can have HotKnob value. many Program Lists, but only one User List is Select Knob designated as THE Playlist. Factory Lists found in Programs Mode cannot be used as the Playlist.
- Page 7 Bank Banks Perform Knob Each Playlist has 33 Banks, and each Bank Turn to adjust displays three Programs in one view. Bank Mode HotKnob value. can be used in live performance to quickly Select Knob load a set of Programs. Turn to scroll through the Playlist, and cue up a Program.
- Page 8 Perform Perform Knob Performance Parameters Press to toggle pages of Perform Mode features two pages of user- user-programmable footswitches. programmable Footswitch assignments such Turn to adjust HotKnob value. as tap tempo, Active/Bypass, momentary Active, Select Knob three independent HotSwitches, and Algorithm- specific parameters.
- Page 9 Programs Perform Knob Program Lists Turn to auto-load a new H90 stores User and Factory Lists, with each List Program from a filtered List. containing up to 99 Programs. In Programs Mode all Lists can be searched based on Effect Type Select Knob and Algorithm.
- Page 10 Insert Routing Insert Positions Footswitch LED Buttons Series Routing Parallel Routing Press to Active/Bypass , or . Pre A Parallel Pre A Select Knob Pre B Post B Parallel Turn to scroll through all Stereo Inserts* Post A Routing pages. Post B Post Stereo Insert*...
- Page 11 Dual Routing Dual Positions Footswitch LED Buttons Routing Path 1 Path 2 Press to Active/Bypass , or . Path 1 Series Series Thru Dual Routing enables two Path 1 Parallel Parallel Thru independent stereo signal paths Pre/Post Preset A Preset B and utilizes an alternate set Path 2 Parallel Thru...
- Page 12 Presets Perform Knob Presets Turn to auto-load a new Preset Presets are the building blocks of a Program. from the filtered search into Uniquely named Presets can be saved to and the selected slot. recalled from the Library for safe-keeping. Select Knob Turn to auto-load a new Preset Algorithm...
- Page 13 Parameters Perform Knob Parameters Button Turn to adjust selected Press to cycle through HotKnob value. parameter groups. Press and hold to map HotKnob. Select Knob Algorithm and Preset name HotKnob value Turn to scroll through pages of selected , parameters. Preset name Tempo Sync Quick Knobs...
- Page 14 System Press and hold PROGRAMS and ROUTING Turn SELECT Knob to highlight a Press PERFORM Knob Buttons to enter System Menu. menu item; Press to enter. to exit System Menu. Turn SELECT Knob to highlight menu item; press I/O (Levels): Inputs/Outputs can be set to instrument I/O (Exp &...
- Page 15 Quick Tips HotSwitch: Each of the three HotSwitches change Flexible Mapping: Map any parameter to an external any number of parameters with a single Footswitch. controller, or gang parameters under one HotKnob. An asterisk denotes that the current Program has Parameters Mode: Hold a FS LED Button to assign Parameters Mode: Press and hold a Quick Knob to been modified and is unsaved.
- Page 16 VISIT US ON THE WEB eventideaudio.com © 2022 Eventide Inc., One Alsan Way, Little Ferry, NJ 07643 USA...
