5) On start-up, the 'Actuator/Startup Settings' window is displayed. This window allows the correct actuator to be selected.
6) Click the arrow on the right hand side of the drop down box and select LNR502E from the list displayed.
7) Click OK.
8) The server reads in the stage and controller information automatically.
Refer to the handbook for the associated controller for more information on driving the actuator/stage.
4.2.2 Selecting Encoder Support in Kinesis
When an encoded stage type has been associated with a motor channel (see Section 4.2.1.), encoder feedback support (both
GUI and programmable interfaces) is enabled by selecting 'Closed Loop' in the corresponding Kinesis Control.
1) Run the Kinesis software, then click the Settings button.
Rev A Apr 2020

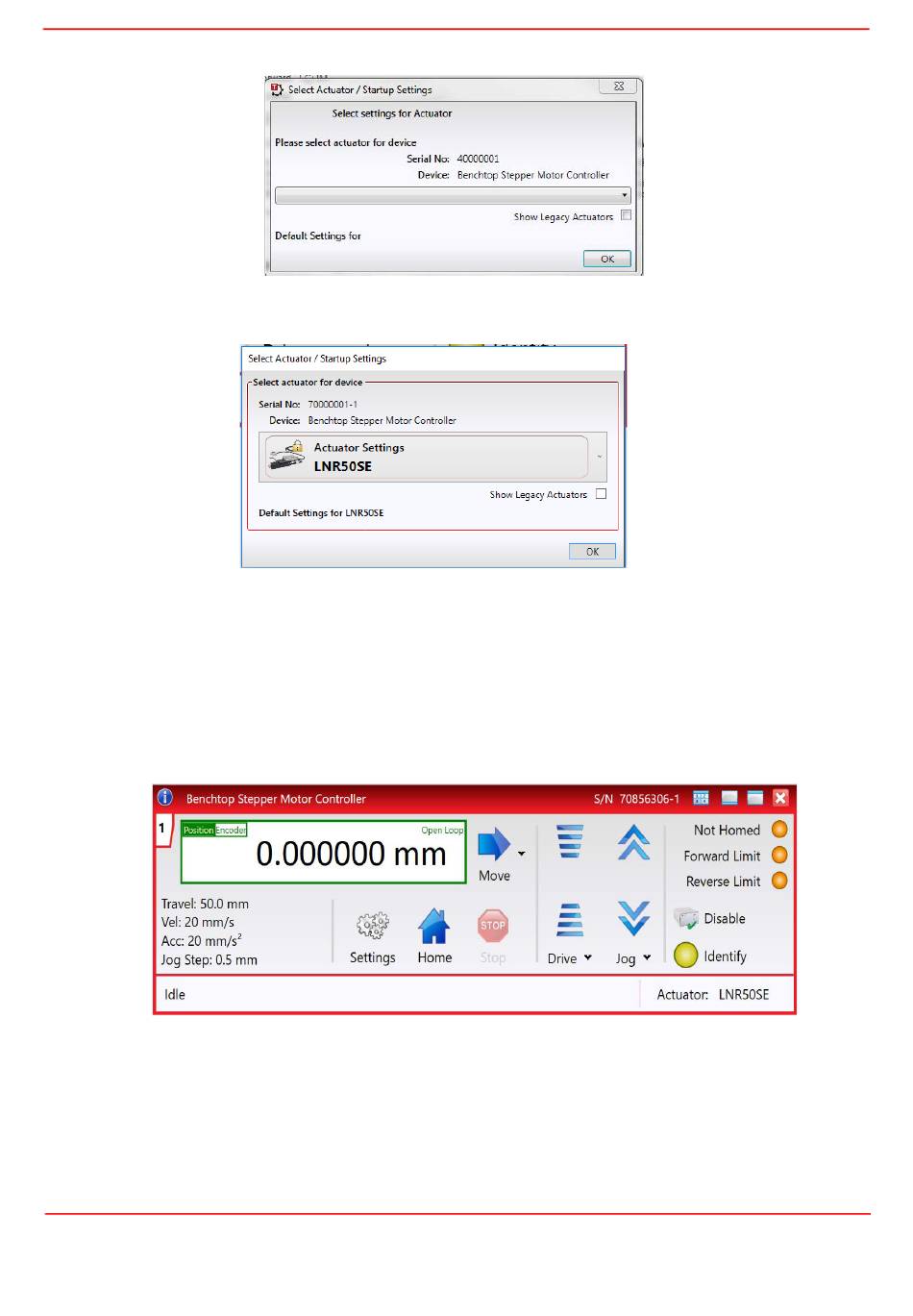

Fig. 4.2 Select Actuator Settings Window - 1
Fig. 4.3 Select Actuator Settings Window - 2
Fig. 4.4 Kinesis Motor GUI panel
