Summary of Contents for THORLABS T-Cube LEDD1B

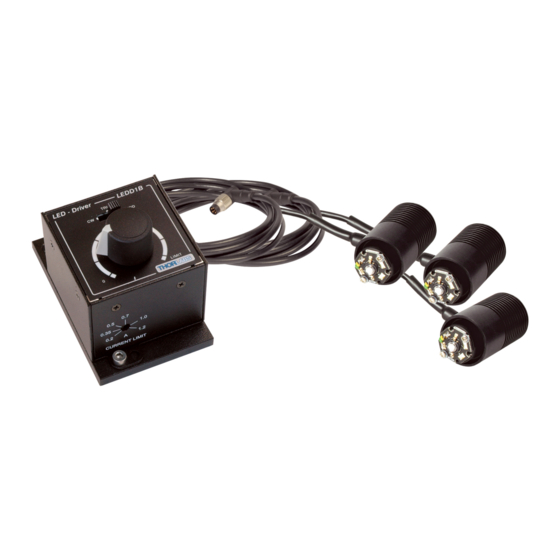

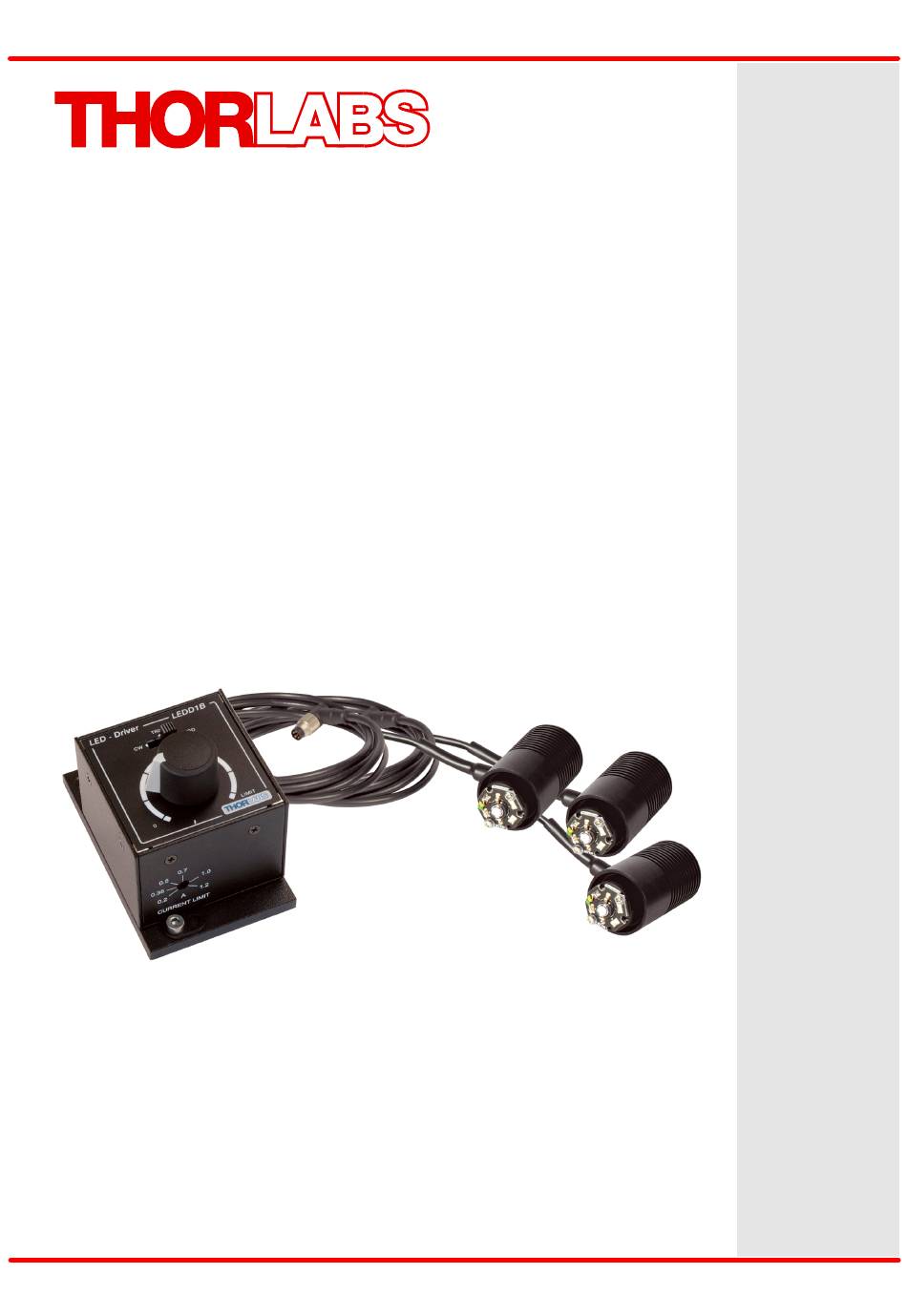

- Page 1 T-Cube LED Driver LEDD1B Operation Manual 2018...
- Page 2 Version: Date: 11-Jul-2018 Item No.: M0009-510-515 Copyright © 2018 Thorlabs...
-
Page 3: Table Of Contents
5.1 Technical Data 5.2 Application Note 5.2.1 LED Driver 5.2.2 Pulse Width Modulation 5.2.3 LED Connector 5.3 Certifications and Compliances 5.4 Warranty 5.5 Copyright and Exclusion of Reliability 5.6 Thorlabs 'End of Life' Policy 5.7 List of Acronyms 5.8 Thorlabs Worldwide Contacts... -
Page 4: Foreword
Paragraphs preceded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read this advice carefully! © 2018 Thorlabs... -
Page 5: General Information
T-cubes connected to the hub. Also, the compact 8-way TPS008 power supply unit is available from Thorlabs to power up to 8 LEDD1Bs or other T-Cube Drivers from a single mains outlet. This power supply unit is also de- signed to take up minimal space and can be mounted on the optical table in close proximity to the driver units, connected via short power leads. -
Page 6: Safety
If necessary, ask for replacement packaging. Refer servicing to qualified personnel! Only with written consent from Thorlabs may changes to single components be made or com- ponents not supplied by Thorlabs be used. All modules must only be operated with proper shielded connection cables. Improper grounding... - Page 7 Mercury Vapor lamps, the same precautions should be taken as those applying to Mercury Va- por lamps. When Thorlabs High Power LED's are used in other applications, they should be used in accor- dance with CEI IEC 62471. During normal operation, the housing temperature of Thorlabs High Power LED products will rise by up to 25°C (45°F) above ambient temperature.
-
Page 8: Ordering Codes And Accessories
LED Driver T-Cube AND the hub before the T-Cube is plugged into the hub. Failure to observe this precaution will seriously damage the T-Cube unit and could result in personal injury. © 2018 Thorlabs... -
Page 9: Installation
T-Cube Controller USB Hub and Power Supply (TCH002) or 8-way Power Supply (TPS008). Rear Panel Connections The LED device is connected via the M8 4-pin connector, which is compatible with all Thorlabs light generating LED assemblies - see Section LED Connector for pin out de- tails. -
Page 10: Mounting Options
2. Remove the backing paper from the rubber feet (supplied) taking care not to touch the ex- posed adhesive surface. 3. Position the feet as desired, then press and hold for a few seconds until the adhesive has bonded. 4. The unit may now be used freestanding, sitting on its rubber feet. © 2018 Thorlabs... -
Page 11: Operating Instruction
5V represents maximum LED current. All values in between correspond to the accord- ing LED current. The LED current can be arbitrary modulated, i.e. sine wave modulation. Control Knob Used to switch on the unit, and to adjust the intensity of the associated LED when operating in CW mode. © 2018 Thorlabs... -
Page 12: Current Limit Control
10. If a pulsed signal is applied, the LED is switched on and off like a strobe effect. 11. Turn off the external voltage source. 12. Turn the control knob fully counterclockwise to turn off the unit OFF. © 2018 Thorlabs... -
Page 13: Modulation Mode
7. Increase the voltage from 0 to 5V and notice how the LED brightness increases accord- ingly. 8. If a modulated signal is applied, the LED is modulated accordingly. 9. Turn off the external voltage source. 10. Turn the control knob fully counterclockwise to turn the unit OFF. © 2018 Thorlabs... -
Page 14: Maintenance And Service
If a malfunction occurs, please first refer to Troubleshooting . If you cannot resolve the issue by yourself, please contact Thorlabs for return instructions. 4.1 Troubleshooting Warning Do not apply a negative voltage or a voltage greater than 5V to the MOD IN connector! The LEDD1B driver was designed for operation of high brightness LEDs, which can handle for- ward currents of up to 1200mA. - Page 15 Check the current limit and adjust it if necessary. · The maximum current of the LEDD1B is 1200mA. ® The LEDD1B cannot drive a higher current than 1200mA through a LED. If using sev- eral LEDs parallel, connect them in series. © 2018 Thorlabs...
-
Page 16: Appendix
100 ... 240 VAC (-10 %, +10 %) Line Frequency (Ext. Power Supply) 50 ... 60 Hz Supply mains over Voltage Category II (Cat II) Input Voltage (LEDD1B chassis) 15 V DC Power Consumption (max) 15 VA © 2018 Thorlabs... - Page 17 ) Specifications for the modulation and trigger modes depend on the forward voltage and capacitance of the con- nected LED. ) Specifications are valid for a current limit of 1.2 A. All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs...
-
Page 18: Application Note
For this reason it is advantageous for fluorescence micro- scopy illumination. Thorlabs DC3100 and DC4100 LED drivers use this principle of operation. The disadvantage is the low efficiency of the linear current control: linear regulators waste en- ergy as they operate by dissipating excess power as heat. -
Page 19: Pulse Width Modulation
In such a design the heat dissipation is reduced to a minimum. Thorlabs DC2100 LED Driver is based on this approach. The disadvantage of this method is the use of more, often expensive components and the re- quirement for more space than conventional constant current linear or switching drivers. -
Page 20: Certifications And Compliances
LEDD1B 5.3 Certifications and Compliances © 2018 Thorlabs... -
Page 21: Warranty
Thorlabs warrants material and production of the LEDD1B for a period of 24 months starting with the date of shipment. During this warranty period Thorlabs will see to defaults by repair or by exchange if these are entitled to warranty. -
Page 22: Copyright And Exclusion Of Reliability
LEDD1B 5.5 Copyright and Exclusion of Reliability Thorlabs has taken every possible care in preparing this document. We however assume no li- ability for the content, completeness or quality of the information contained therein. The content of this document is regularly updated and adapted to reflect the current status of the hardware and/or software. -
Page 23: Thorlabs 'End Of Life' Policy
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 24: List Of Acronyms
Continuous Wave Direct Current DGND Digital Ground Electromagnetic Compatibility Federal Communications Commission HBLED High Brightness LED International Electrotechnical Commission Light Emitting Diode Printed Circuit Board Power Supply Unit Universal Serial Bus WEEE Waste Electrical and Electronic Equipment Directive © 2018 Thorlabs... -
Page 25: Thorlabs Worldwide Contacts
5 Appendix 5.8 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com techsupport.uk@thorlabs.com... - Page 28 www.thorlabs.com...
