Summary of Contents for NXP Semiconductors freescale TWR-56F8200
- Page 1 Quick Start Guide TWR–56F8200 Tower System Module for MC56F823xx and MC56F827xx Digital Signal TOWER SYSTEM Controllers Arrow.com. Downloaded from...

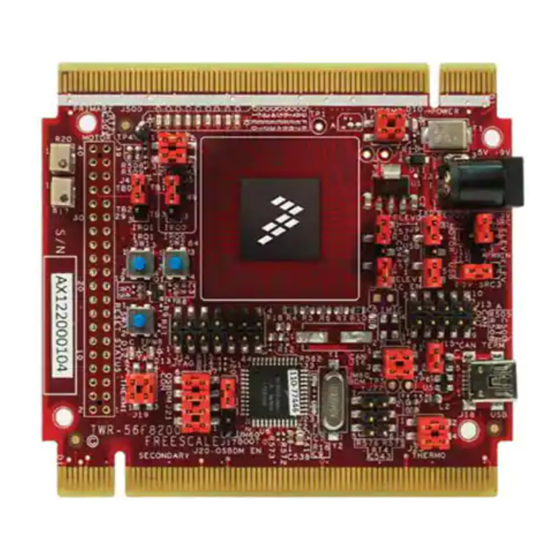

- Page 2 Get to Know the TWR-56F8200 Board Primary Tower Connector Thermistor RT1 and Header LEDs Thermistor RT2 and Header Power Connector MC56F82748 JTAG/Multilink USB Connector Header Thermistor RT4 Reset Push Button and Header OSBDM/UART Target Power LEDs Secondary Tower Connector Thermistor RT3 and Header TWR-56F8200 Freescale Tower System...
- Page 3 TOWER SYSTEM Introduction • The TWR-56F8200 is a standalone • The module features serial communication development board that can be used over USB, CAN circuits and access to in conjunction with the Tower System each pin. The module can be powered peripheral boards, including the LV3PH by the Tower System, an external motor control kit (TWR-MC-LV3PH).
- Page 4 Quick Start Guide MC56F82748 Features • 50/100 MHz, 50/100 MIPS 32-bit core for fast control loop execution via single-cycle math computations and parallel moves • Fractional arithmetic supported for greater speed with four accumulators • DMA controller for reduced core intervention when shifting data from peripherals •...
- Page 5 TOWER SYSTEM Step-by-Step Installation Instructions In this quick start guide, you will learn how to set up the TWR-56F8200 module and run the default thermistor and LED application. Connect Run the the Jumpers Thermistor Demo Plug the USB cable from your computer into Ensure the jumpers are connected as the TWR-56F8200 module.
- Page 6 Quick Start Guide Quick Start Guide Create Build an a Project Application Install CodeWarrior and run the program. Wait for Processor Expert to finish loading. Activity progress can be seen in the lower • From the menu, select “File,” “NEW,” right of the IDE screen.
- Page 7 Quick Start Guide TOWER SYSTEM Debug an Load an Application Application using Universal Multilink Set a breakpoint at the “for” instruction Connect the Universal Multilink to the from within the C language program by JTAG Connector J14. Make sure the right-clicking in the margin to the left of red wire of the Universal Multilink ribbon the “for”...
- Page 8 Quick Start Guide Resume Your Application Run 3-Phase BLDC at a Breakpoint Motor with LV3PH Motor Control Kit The code will run up to the breakpoint that you set in the previous step. When To run the 3-phase low-voltage BLDC it reaches it, the code will stop in the motor using the MCLV TWR card, refer to debugger and display the current...
- Page 9 TOWER SYSTEM TWR-56F8200 Jumper Options The following is a list of all the jumper options. The default installed jumper settings are indicated by the white text within the green boxes. Jumper Option Setting Description Onboard 1–2, 3–4 Connect RT1 circuit to the MC56F82748 Thermistor RT1 Open Disconnect RT1 circuit from the MC56F82748...
- Page 10 Quick Start Guide Jumper Option Setting Description Connect ELEV_RXD0 from the Tower connector to MC56F82748 1–2 pin GPIOF8/RXD0/TB1 Serial Port Connect RXD_SEL from the USB serial bridge to MC56F82748 Reception 2–3 pin GPIOF8/RXD0/TB1 RXD Source Select (Note Pin 2 open Disconnect MC56F8200 DSC pin GPIOF8/RXD0/TB1 that only one Connect RXD_SEL from the USB serial bridge to MC56F82748...
- Page 11 TOWER SYSTEM Jumper Option Setting Description Unused Open Unused 1–2 Connect the 120 ohm CAN termination resistor Termination Open No CAN termination Enable Connect the CAN transceiver TXD and RXD to 1–2, 3–4 MC56F8200 DSC pins GPIOC11/CANTX/SCL1/TXD1 CAN Enable and GPIOC12/CANRX/SDA1/RXD1 Open Disconnect the CAN transceiver MC9S08JM60...
-
Page 12: Get Started
Quick Start Guide Quick Start Guide Get Started Download installation software and documentation under “Jump Start Your Design” at freescale.com/TWR-56F8200. Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org...
