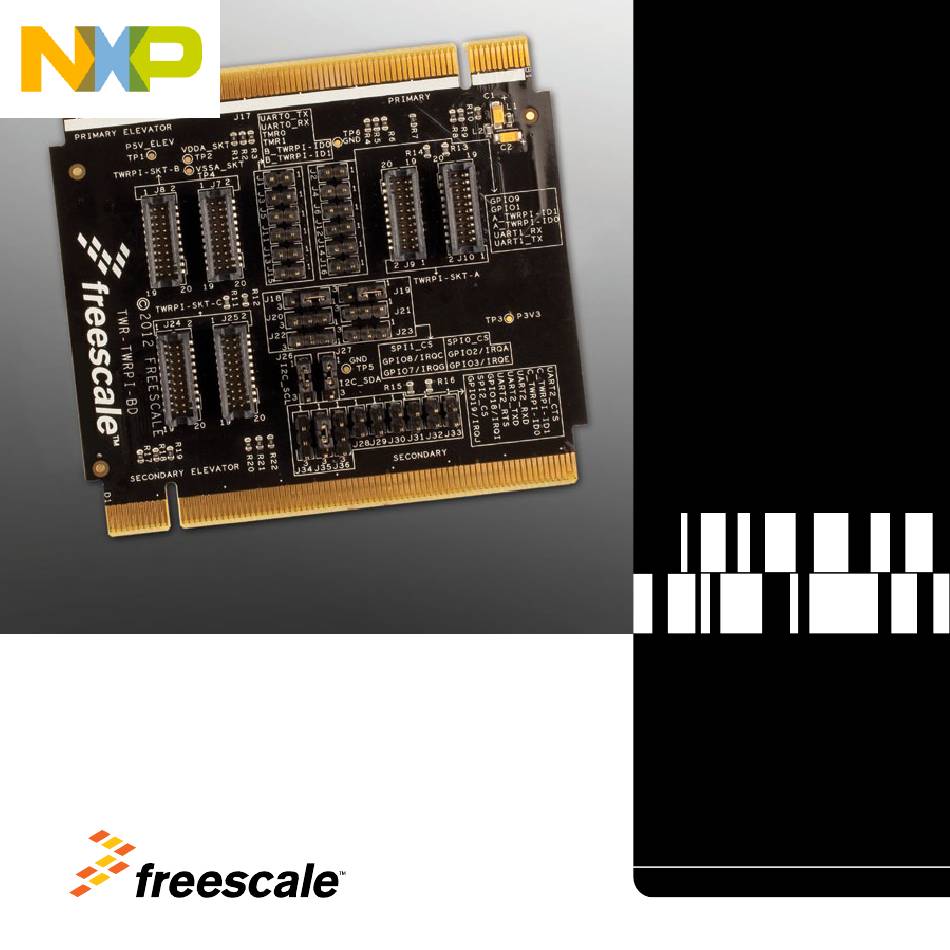

- Page 1 Quick Start Guide TWR-TWRPI-BD Tower Plug-In Carrier Module TOWER SYSTEM...
- Page 2 Quick Start Guide TOWER SYSTEM Get to Know the TWR-TWRPI-BD TWR-TWRPI-BD Features Headline of Features in Initial Caps Can Go to Two Lines If Necessary • Enables rapid prototyping and evaluation of sensors, radios and Primary TWRPI B other peripherals available as Tower plug-ins (TWRPIs) Isolation/ Connector Selection Jumpers • Adds up to three additional general-purpose TWRPI modules to the Freescale Tower System and interfaces them with signals available on the Tower elevator edge connectors TWRPI A Socket TWRPI B • Provides access to SPI, I...
- Page 3 Quick Start Guide TOWER SYSTEM Step-by-Step Installation Instructions In this quick start guide you will learn to set up the TWR-TWRPI-BD module and run the included demostration software. For more detailed information, review the user manual at freescale.com/Tower Insert Refer to Additional Identify Ensure TWRPIs Compatibility TWRPIs Materials Insert the desired TWRPIs in the The TWR-TWRPI-BD provides access Identify the desired TWRPIs to be Each interface featured on the respective sockets. The TWRPIs are to Tower plug-ins from signals available utilized with the TWR-TWRPI-BD and TWR-TWRPI-BD is capable of being the respective interfaces required for isolated from the Tower System. To keyed and uniquely spaced such that on the Tower elevator edge connectors. each TWRPI.
- Page 4 Quick Start Guide TOWER SYSTEM TWR-TWRPI-BD Jumper Options The following is a list of all jumper options. The default installed jumper settings are shown in white text within the black boxes. TWRPI Socket A Configuration TWRPI Socket A Configuration (continued) Jumper Option Setting Description Jumper Option Setting Description GPIO4/UART Connects J9_Pin19 to primary elevator SPI CS Connects J9_Pin11 to primary elevator CTS Isolation signal GPIO9/UART1_CTS (A9) Selection signal SPI0_CS0 (B46) GPIO5/UART Connects J9_Pin20 to primary elevator Connects J9_Pin11 to primary elevator RTS Isolation signal GPIO1/UART1_RTS (B21) signal SPI0_CS1 (B47) TWRPI-ID1...
- Page 5 Quick Start Guide TOWER SYSTEM TWRPI Socket C Configuration TWRPI Socket B Configuration Jumper Option Setting Description Jumper Option Setting Description UART TX/GPIO3 Connects J7_Pin18 to primary elevator UART RTS/ Connects J25_Pin20 to secondary Isolation signal UART0_TX (A42) GPIO5 Isolation elevator signal UART2_CTS (C43) UART RX/GPIO2 Connects J7_Pin17 to primary elevator UART TX/GPIO3 Connects J25_Pin18 to secondary Isolation signal UART0_RX (A41) Isolation...
- Page 6 Quick Start Guide TOWER SYSTEM C Configuration Jumper Option Setting Description C SCL Connect primary elevator signal I2C0_SCL Selection (A7) to all TWRPI sockets Connect primary elevator signal I2C1_SCL (B50) to all TWRPI sockets C SDA Connect primary elevator signal I2C0_SDA Selection (A8) to all TWRPI sockets Connect primary elevator signal I2C1_SDA (B51) to all TWRPI sockets...
-
Page 7: Warranty
Quick Start Guide Visit freescale.com/Tower for more information on the TWR-TWRPI-BD, including: • Schematics • User manual Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg.
