Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

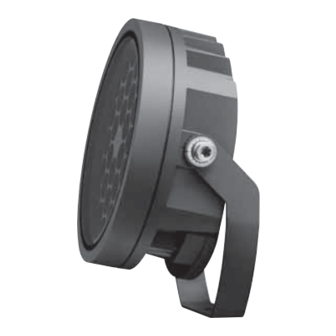

Projector
FLC220 LED
FLC230 LED
FLC240 LED
FLC260 LED
FLC220-CC LED
FLC230-CC LED
FLC240-CC LED
FLC260-CC LED
Advertisement
Related Manuals for WE-EF FLC220 LED
Summary of Contents for WE-EF FLC220 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC220 LED FLC230 LED FLC240 LED FLC260 LED FLC220-CC LED FLC230-CC LED FLC240-CC LED FLC260-CC LED Installation tools Surge Protection Mounting hardware used on this product This product features built-in surge protection circuitry in compliance with includes fasteners with hexalobular socket applicable standards.
- Page 2 Projector FLC230 FLC230-CC ø 190 ø 190 ø 260 ø 14 ø 18 ø 14 ø 18 FLC240 FLC240-CC FLC260 FLC260-CC ø 340 ø 385 ø 385 ø 14 ø 14 ø 18 ø 18 IP66, IK07, Class I, ta = 25°C Weight for FLC220/FLC220-CC 4.3/4.3...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure 1) Prior to electrical connection, proceed with 2) Switch off mains electrical supply. mechanical installation by securing stirrup A to optional mounting accessory or directly to a suit able surface. Aim luminaire in the desired direction. Warning: Ensure not to damage any electric cable, water pipe or other devices while drilling holes. - Page 6 5) Feed mains supply cable D through cable gland E. See Fig I. Fig I. Feed mains supply cable through cable gland 6) Connect mains supply leads to respective terminals in terminal block F: a) ON/OFF (L = Phase, N = Neutral, = Earthing) b) 1-10 V/DALI (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line,...
- Page 7 7) Reposition gear box cover B and retighten 8) Loosen two screws G slightly. Aim luminaire (see illustration), tighten screws G firmly screws C. (100 Nm). In addition, tighten screw H (max. 6 Nm) to secure orientation of luminaire. Torque Screw Torque max.
- Page 8 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9255W0219 © WE-EF 2019 subject to change.
