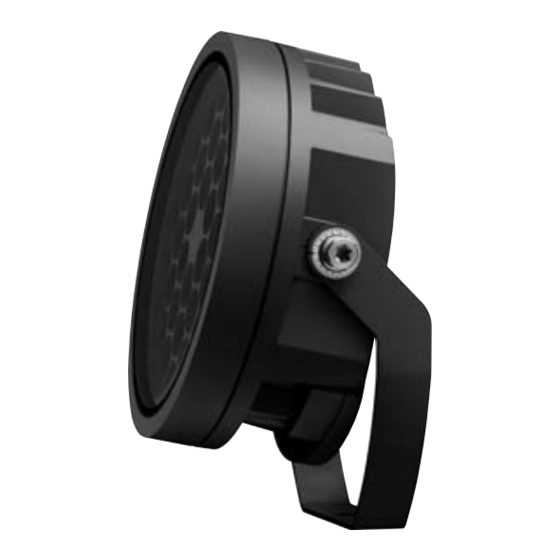

WE-EF FLC200-CC LED Series Installation And Maintenance Instructions Manual
Hide thumbs
Also See for FLC200-CC LED Series:
Related Manuals for WE-EF FLC200-CC LED Series
Summary of Contents for WE-EF FLC200-CC LED Series
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions for Projectors FLC200 LED Series FLC200-CC LED Series INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST...
-
Page 2: Light Source
Projectors FLC230 FLC230-CC ø 190 ø 190 ø 260 ø 260 ø 14 ø 18 ø 14 ø 18 FLC240 FLC240-CC FLC260 FLC260-CC ø 340 ø 340 ø 385 ø 385 ø 14 ø 14 ø 18 ø 18 Light source Windage area FLC220 . -
Page 3: Installation Procedure
5) Feed mains supply cable D through cable gland E. An Installation additional M20 gland is supplied to allow loop The product must be installed and maintained by a suitably through of supply cabling or alternative DMX cabling qualified professional in compliance with latest building/ arrangements. - Page 4 Torque Screw Torque max. 2,0 Nm max. 4,0 Nm max. 6,0 Nm max. 15,0 Nm max. 100,0 Nm 45° 30° 15°...
- Page 5 Neutral to N and Earthing to Class II Phase to L1, Control Phase to L2, Neutral to N 1-10V / DALI / WE-EF Eco Step Dim® Dynamic / CC Class I Phase to L1, Neutral to N and Earthing to –...
- Page 6 Notice: In case the luminaire is equipped with an optional available surge protector, the function can get tested if the signal LED is lit green when the supply voltage is turned on. In case the surge protector is defective, the LED device gets automatically disconnected from the mains supply.
- Page 8 +61 458 933 399 info.uk@we-ef.com 7am – 7pm AEST Liability WE-EF LIGHTING accepts no liability when damage is caused by improper use or installation. FLC200 LED / FLC200-CC LED_010518 / 006-1348 Technical specifications are subject to change. If any luminaire and/or accessory is subsequently modified, the ©...
