1

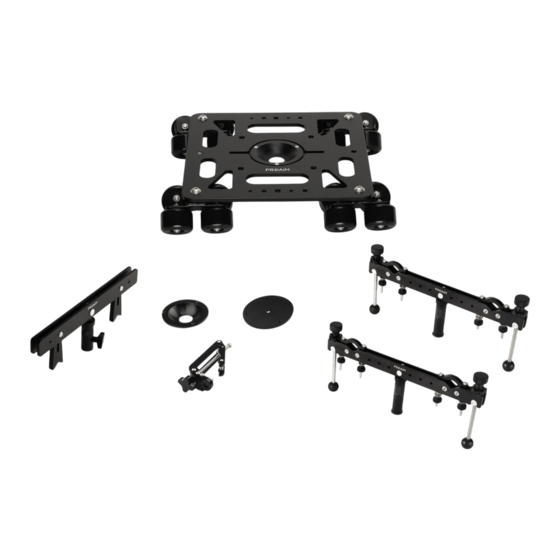

Breeza Video/Film Camera Dolly Slider
with Track Ends
(DL-BRZA-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Heavy Duty Sled
Flat Mount Plate
Anti-Tilt Safety
100mm Bowl Adapter
Brake
Proaim Breeza Dolly
2 x End Spacers
1 x Low-Profile Middle
Support Spacer
75mm Bowl
Adapter
3 x Type Allen Keys
Sizes: 2.5, 4mm & 5mm
Bag Packing
3 x Bolts
2 x Wrench Sizes: 17 & 13mm
Sizes: (6 x 12 mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM DL-BRZA-01
Summary of Contents for PROAIM DL-BRZA-01
- Page 1 Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Heavy Duty Sled Flat Mount Plate Anti-Tilt Safety 100mm Bowl Adapter Brake Proaim Breeza Dolly 2 x End Spacers 1 x Low-Profile Middle Support Spacer 75mm Bowl Adapter 3 x Type Allen Keys Sizes: 2.5, 4mm &...
- Page 2 Make sure all wheels are aligned correctly on the track and dolly runs smoothly. NOTE: Proaim Breeza Compact Portable Slider Dolly integrates the latest technology with supreme quality to maximize your creative potential.
- Page 3 Anti-Tilt Safety Brake Assembly Loosen the knob to properly open the safety brake. Mount the Safety Brake on side of the Breeza dolly platform. Adjust the position of the bracket so it goes under the track to prevent the platform from tilting out.
- Page 4 Mount Fluid Head on the Bowl Adapter Insert the fluid head (Not Included) into the bowl through a screw. After mounting the fluid head on the bowl, secure it properly by inserting the locking knob from the bottom side. ...
- Page 5 After properly securing the fluid head (Not Included), mount a camera on it. 8ft Track Setup Mount the end spacers onto the stand (Not Included) and tighten with the help of a knob. NOTE: If you need higher level shots, then you can put end spacers on Stands.
- Page 6 Now place the breeza dolly onto the 8ft track. The handles part of the dolly platform should be inside of the track as shown. Make sure all wheels are aligned correctly on the track and dolly runs smoothly. Mount the Safety Brake on side of the Breeza dolly platform.
- Page 7 YOUR PROAIM BREEZA VIDEO/FILM CAMERA DOLLY SLIDER WITH TRACK ENDS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
