Fusion Video/Film Camera Dolly Slider with Track Ends
(DL-FUSN-01)
A s s e m b l y M a n u a l

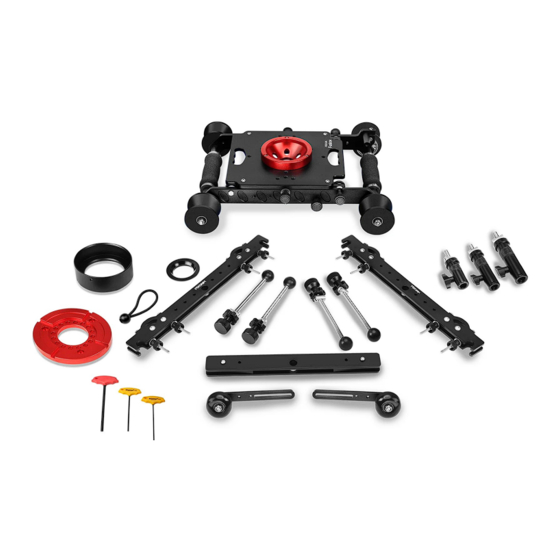

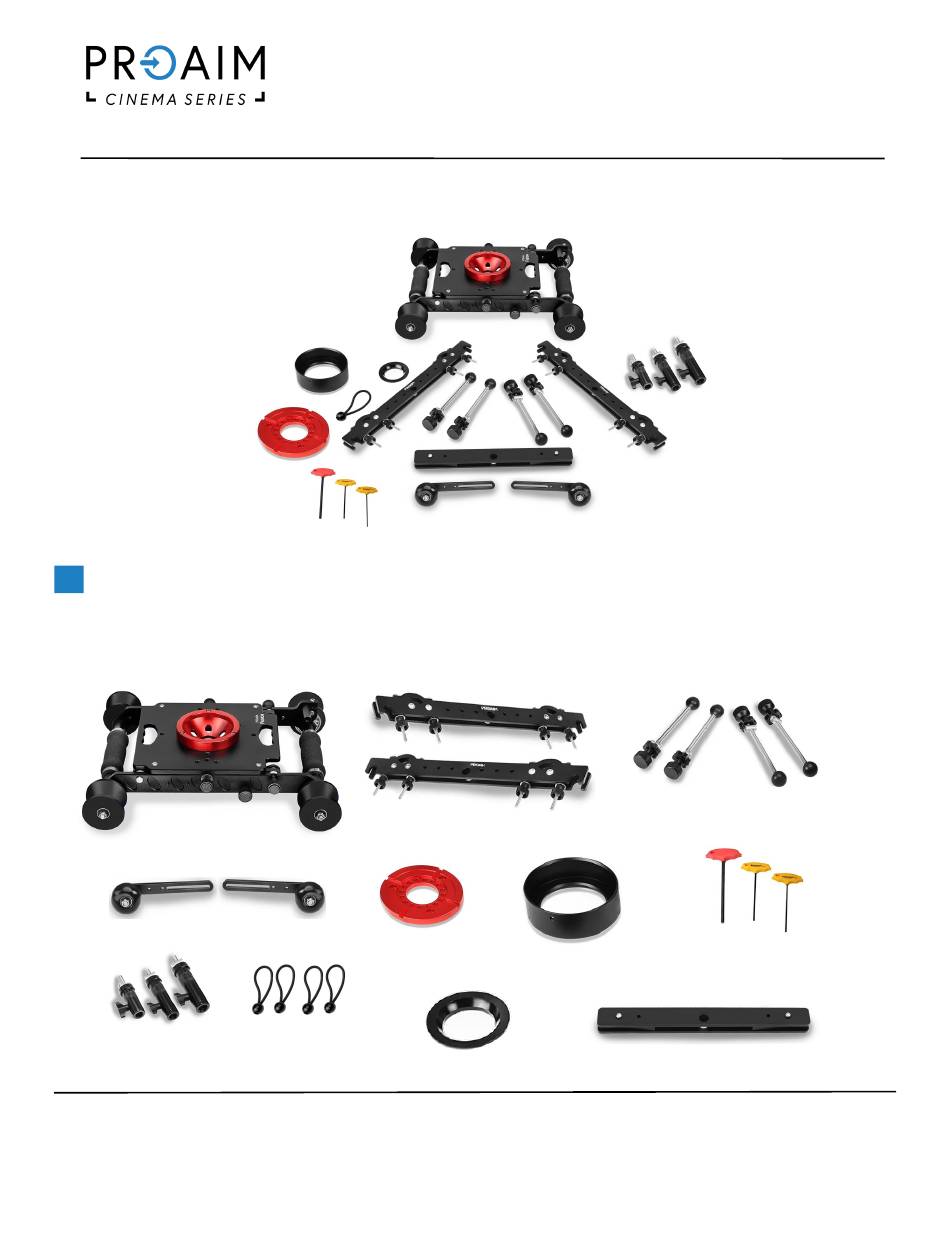

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4 x Adjustable Leveling Legs
Camera Dolly with
2 x End Feet
100mm bowl
2 x Safety Wheels
Mitchell Base
3 x T-Type Allen Key
150mm Bowl
(Size : 3mm, 4mm, 5 x 16")
4 x Elastic
3 x Junior Pin
Stoppers
Support Bracket
75mm Conversion Ring
Adapters
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM Fusion
Summary of Contents for PROAIM Fusion
- Page 1 Fusion Video/Film Camera Dolly Slider with Track Ends (DL-FUSN-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Attaching the Levelling Legs Setup Insert the adjustable leveling legs into the end feet adapter and tighten the knob to secure it. Attaching the Track Loosen the knobs of the end feet & insert the track rails (Not Included) into it, and then tighten the knobs tightly to secure it.
- Page 3 100mm bowl receptacle is affixed to the Dolly. NOTE: Fusion Dolly accommodates 4 Camera Mounting Heads. 75mm Bowl / 100mm Bowl / 150mm Bowl / Mitchell Base. You can mount a 75mm conversion ring to use 75mm bowl head.
- Page 4 Remove the 100mm bowl receptacle from the platform & attach the Mitchell plate on it. Tighten the assembly with the help of provided tools. Now you can mount your camera setup as desired. Attaching the Supports Remove the hook from the junior pin adapter and insert it into the end feet.
- Page 5 Place this support bracket below the track (Not Included) system, and then mount your camera setup, as shown in the image. To Use Dolly As Underslung Attach the 100mm bowl receptacle to the bottom of the Dolly and tighten it with the help of the Allen key.
- Page 6 YOUR PROAIM FUSION VIDEO/FILM CAMERA DOLLY SLIDER WITH TRACK ENDS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
