Marcus Camera Dolly with Mitchell & Euro/Elemac
Adapter Base (DL-MRCS-01)
A s s e m b l y M a n u a l

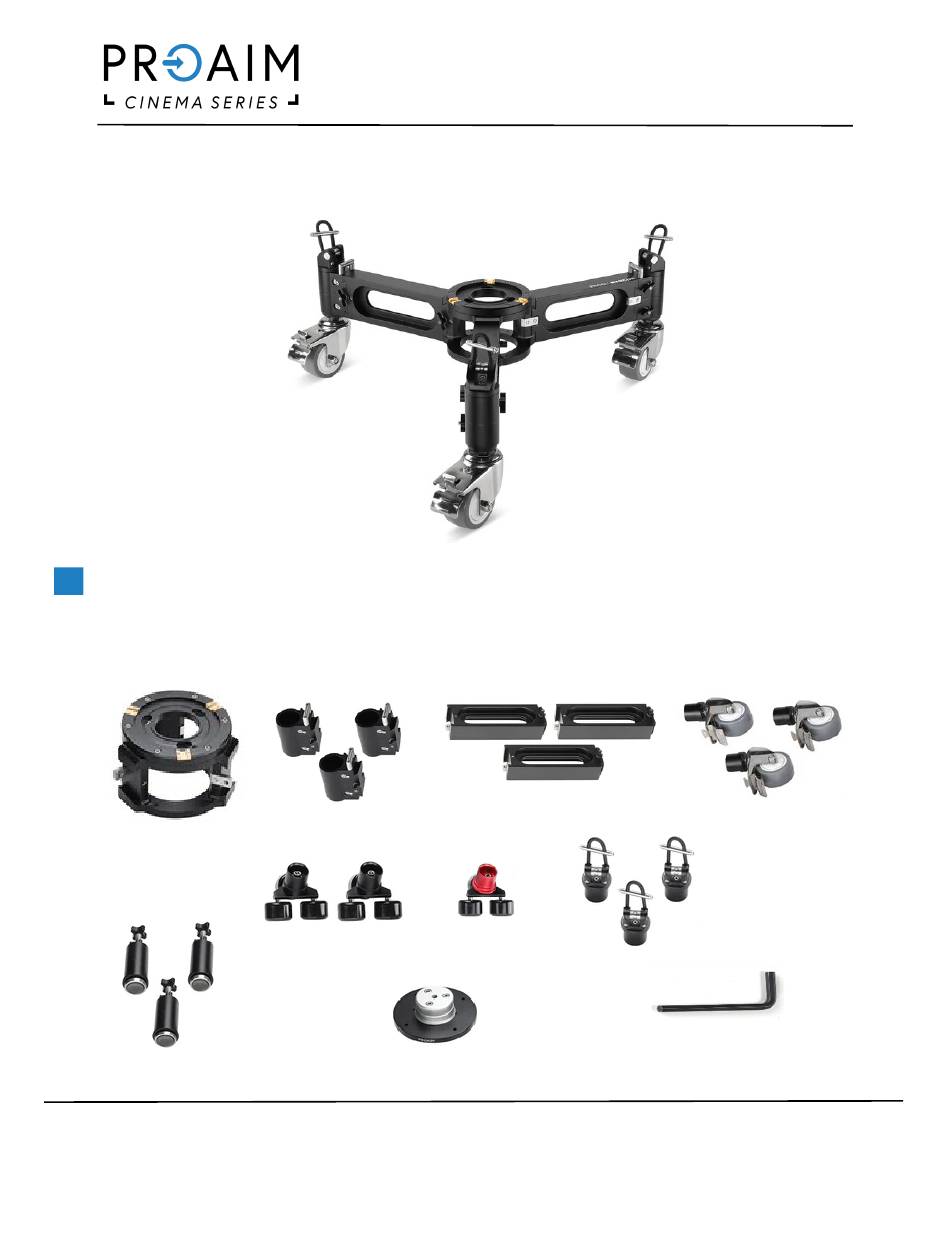

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
3 x Legs
3 x Caster Wheels
3 x Adapters
Mitchell Base
2 x Track Wheels
Cam Wheel
3 x Spike Feet
1 x L-Type Allen Key
(Size:4mm)
3 x Foots With Knobs
Euro/ Elemac Base Adapter
