PROAIM DP-18 Assembly Manual

18" dovetail tripod plate (arri standard) for heavy camera setup

18" Dovetail Tripod Plate (ARRI Standard)

for Heavy Camera Setup

(DP-18)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

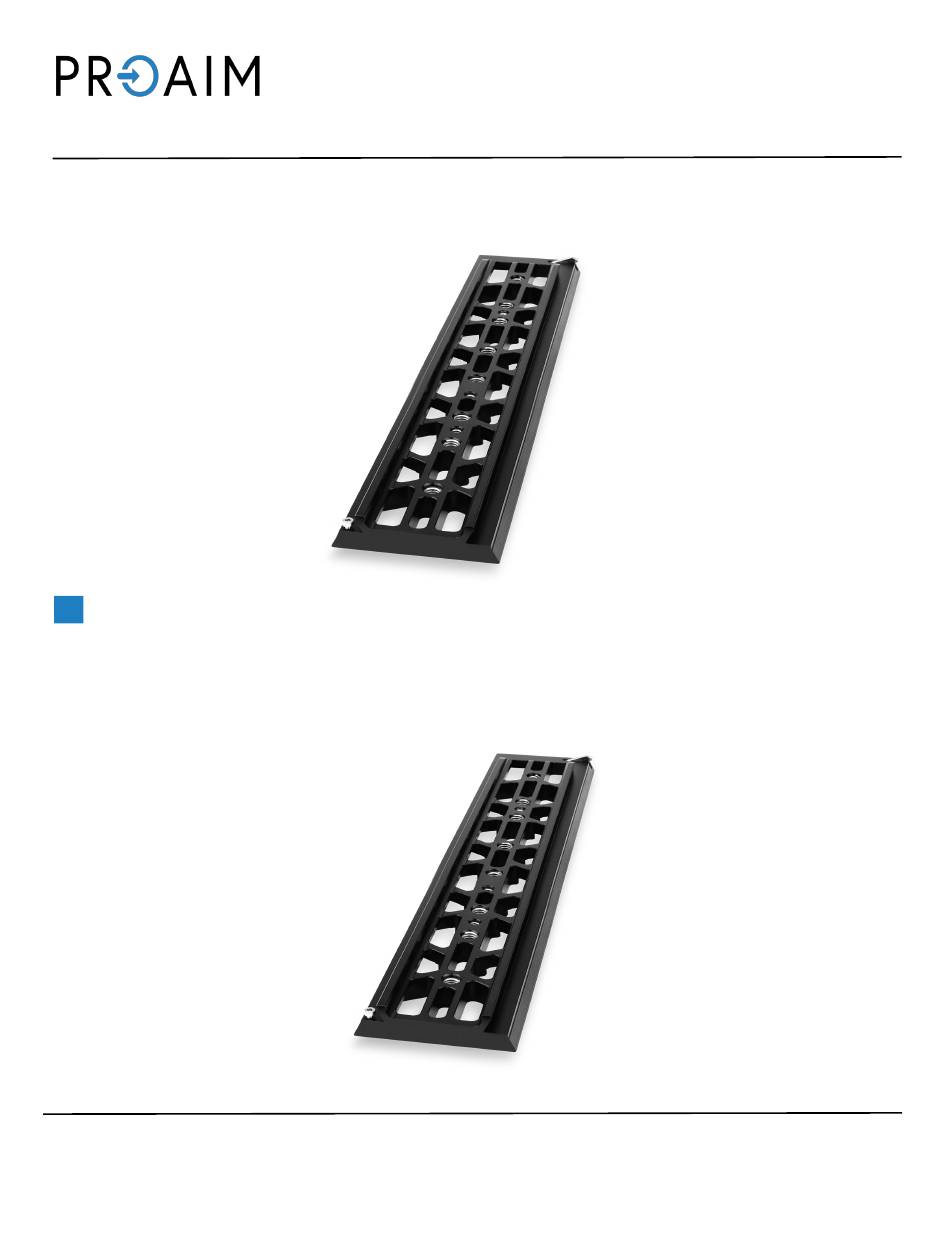

Proaim 18" Dovetail Plate (ARRI Standard)

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the DP-18 and is the answer not in the manual?

Page 1 Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Proaim 18" Dovetail Plate (ARRI Standard) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Page 2 18" Dovetail Tripod Plate Setup • Loosen and remove the castle ring of the fluid head (Not Included), as shown in the image. • Mount fluid head Stand (Not Included). • After mounting the fluid head (Not Included), insert the castle ring from the bottom to secure the fluid head.
Page 3 • Use the locking lever to secure the Dovetail Tripod Plate. • Securely attach the quick release plate (Not Included) to the Camera (Not Included) using an Allen key and slide it onto the Dovetail Tripod Plate. Feature: There are 1/4" & 3/8" threads at the center of the plate for attaching tripod plates &...
Page 4 YOUR PROAIM 18" DOVETAIL TRIPOD PLATE (ARRI STANDARD) ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
