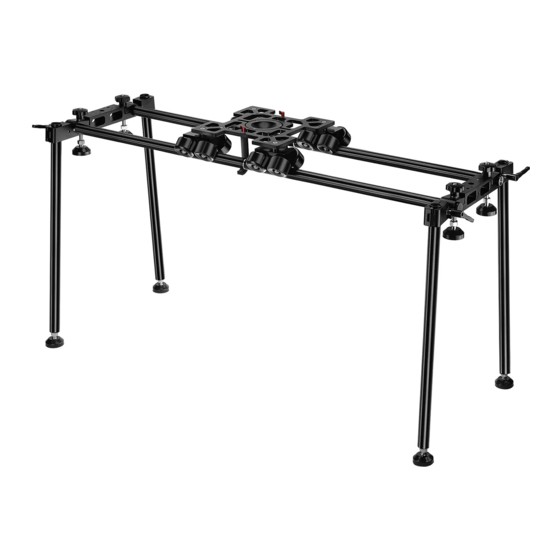

Breeza Pro Camera Dolly with
Track|Mitchell
(DL-BRZP-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
75mm Bowl Adapter
100mm
Bowl Adapter
2 x Safety Hooks
2 x End Spacers
Proaim Breeza dolly
(with track wheels)
2 x Female Connector Rods
4 x Male Connector Rods
Bag Packing
4 x Rods
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM Cinema Breeza Pro DL-BRZP-01
Summary of Contents for PROAIM Cinema Breeza Pro DL-BRZP-01
- Page 1 75mm Bowl Adapter 100mm Bowl Adapter 2 x Safety Hooks 2 x End Spacers Proaim Breeza dolly (with track wheels) 2 x Female Connector Rods 4 x Male Connector Rods Bag Packing 4 x Rods All rights reserved.
- Page 2 Assembling of Connector Rods • Properly secure the female connector rod to the male connector rod, as shown in the image. • Repeat the same process for the second set of connector rods. NOTE: To increase the length of the track, securely attach all connections.
- Page 3 • Loosen the knobs of the end spacers, open the clamps and insert the rod. Follow the same process to insert the second rod as well. • Then properly tighten with the help of the knobs . • Follow the same process to insert the other two rods.
- Page 4 • Attach the safety hook at the bottom side of the Breeza Pro Camera Dolly and properly tighten it using the knob. • Follow the same process for the second hook. NOTE: Safety hooks can be attached to the bottom of the Dolly to act as security against tipping, ensuring your platform doesn't get knocked off the rails.
- Page 5 Camera Setup • Attach the Camera Plate to the camera (Not Included) by matching the threads and properly tighten using a screw driver (Not Included) • Mount the camera on the fluid head and again secure properly with the red push pin. NOTE: You can mount Breeza Dolly Setup without rods on the flat surface area.
- Page 6 • Tighten all the screws with the help of the screwdriver. The bowl adapter has been attached to the bottom of the Breeza Dolly. • Now you can mount your camera (Not Included) setup, as desired. Mitchell Setup • Remove the Castle Ring from the Mitchell Plate (Not Included) and mount it on the...
- Page 7 • The camera plate has been removed from Mitchell, as shown in the image. Camera Setup • Attach the Camera Plate to the camera (Not Included) by matching the threads and properly tighten using a screw driver (Not Included). • Mount the camera onto the fluid head and properly lock with the help of the push pin.
- Page 8 YOUR PROAIM BREEZA PRO CAMERA DOLLY WITH TRACK ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
