Supreme Professional Camera Dolly

(DL-254-00)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the Cinema Series and is the answer not in the manual?

Page 1 Supreme Professional Camera Dolly (DL-254-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. All rights reserved.
Page 2 Track Setup  Slide an extension section on to each end to complete a 12’ run and install and tighten the screws to secure.
Page 3  Attach Track Stoppers and Track Feet to track for it’s rigidity and to prevent your Dolly from running off rails.  Now, track is ready as shown in the picture. Supreme Dolly Setup  Your Dolly base is shipped with the leg extensions collapsed.
Page 4  Mount round base plate that supports the seat and tighten with supplied Allen bolts with the key.  The 4 platform plates can be attached using the Velcro straps.  Mount Telescopic Bazooka on round base plate. Tighten Bazooka to base plate using the supplied Allen bolts and key.

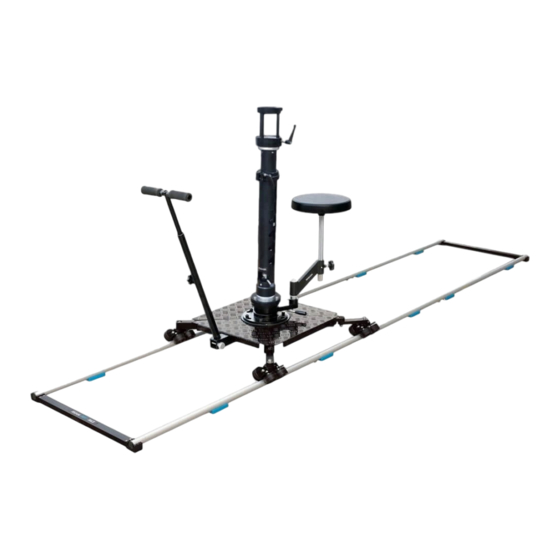

Page 5 Add foam grip handle to the pushbar and tighten it. Grips are fully foam padded for comfort. YOUR PROAIM SUPREME PROFFESIONAL CAMERA DOLLY SYSYTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.

Supreme dl-254-00
