Infineon AIROC CYBLE-343072-EVAL-M2B Quick Start Manual

Bluetooth le module evaluation kit

Quick start guide

AIROC™ Bluetooth® LE module evaluation kit

CYBLE-343072-EVAL-M2B

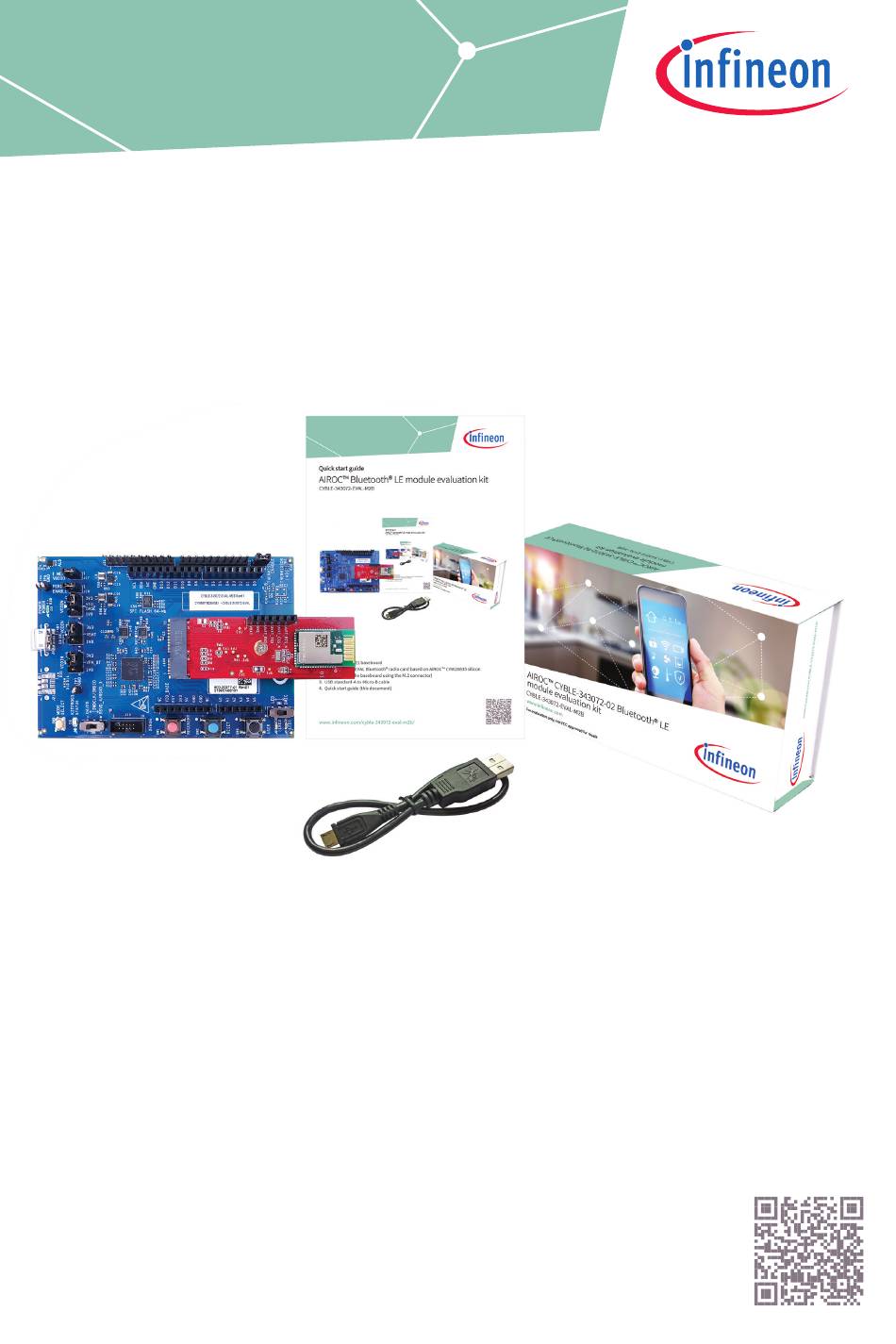

Kit contents

1. CYW9BTM2BASE1 baseboard

2. CYBLE-343072-EVAL Bluetooth® radio card based on AIROC™ CYW20835 silicon

(connected to the baseboard using the M.2 connector)

3. USB standard-A to Micro-B cable

4. Quick start guide (this document)

www.infineon.com/cyble-343072-eval-m2b/

Table of Contents

Do you have a question about the AIROC CYBLE-343072-EVAL-M2B and is the answer not in the manual?

Page 1 AIROC™ Bluetooth® LE module evaluation kit CYBLE-343072-EVAL-M2B Kit contents 1. CYW9BTM2BASE1 baseboard 2. CYBLE-343072-EVAL Bluetooth® radio card based on AIROC™ CYW20835 silicon (connected to the baseboard using the M.2 connector) 3. USB standard-A to Micro-B cable 4. Quick start guide (this document) www.infineon.com/cyble-343072-eval-m2b/...
Page 2 1. Register on the Developer community and then download and install ModusToolbox™ software v 2.4 (or later) with the Bluetooth® SDK at https://www.infineon.com/modustoolbox. 2. Your kit has the ‘Hello Sensor’ application pre-programmed. Do the following to install the ‘HelloClient’ peer application.
Page 3 Quick start guide AIROC™ Bluetooth® LE module evaluation kit board details CYBLE-343072-EVAL-M2B 16 17 15. Reset button (SW2) 1. VDDIO current measurement 16. Header compatible with Arduino (J2) jumper (J17) 17. User button (SW3) 2. Peripheral enable jumper (J19) 18. User LEDs (D1, D2) 3.
