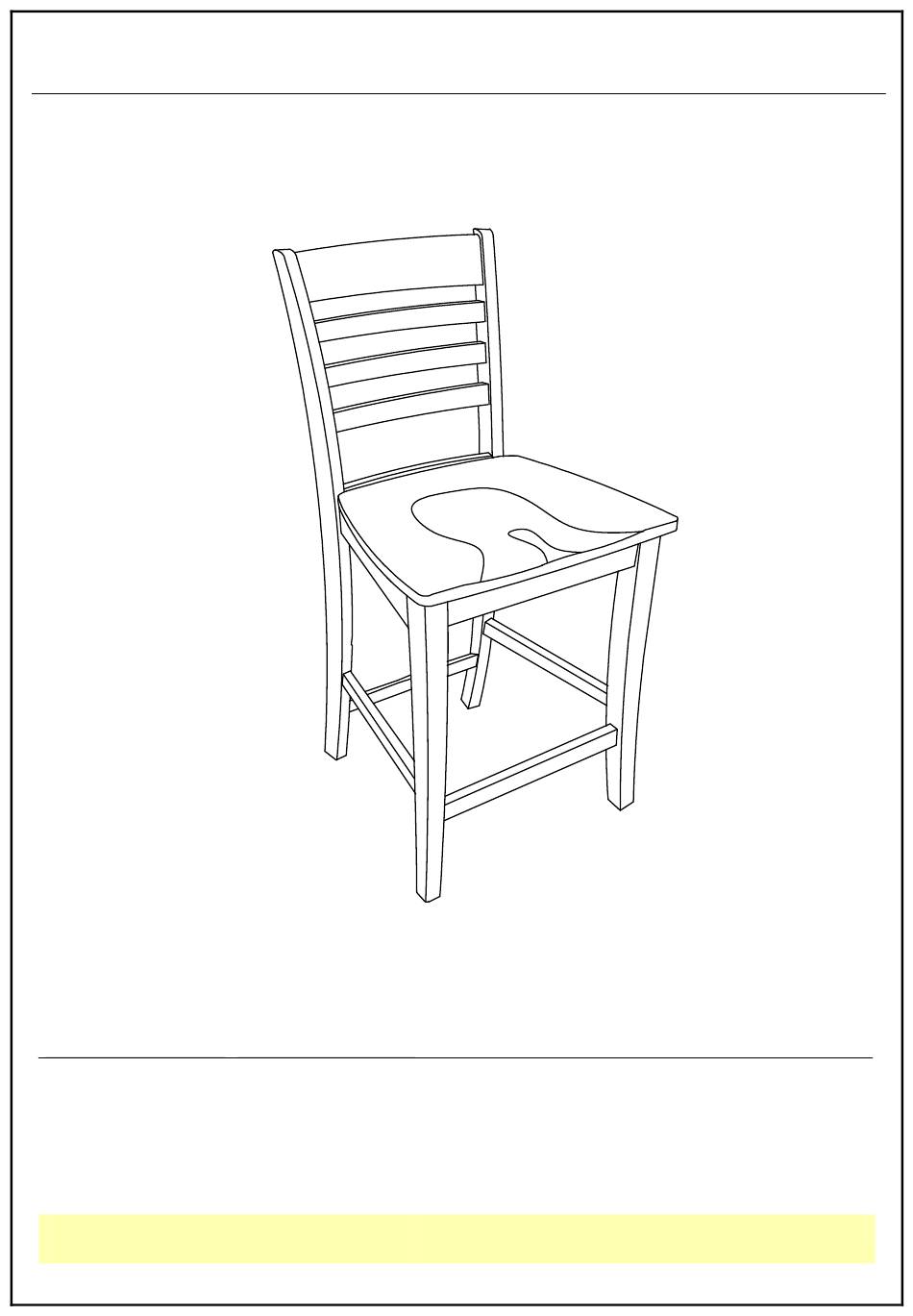

- Page 1 ASSEMBLY INSTRUCTIONS : ROMA LADDERBACK 24 IN Description : S-3102 Item No. ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2018 - 1 -...
-
Page 2: Before Assembly
Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2018 - 2 -... -
Page 3: Part List
Long Screw (M6 x 80mm) (M4 x 50mm) Short Screw Lock Washer (M4 x 35mm) (6.5 x11mm) Flat Washer Allen Key (6.5 x19mm) (M4 x 30mm x 110mm) ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2018 - 3 -... - Page 4 Allen key (8). Attach front stretcher (F) between front legs, and then attach side stretchers (E) to front and back legs with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2018...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2018 - 5 -...
