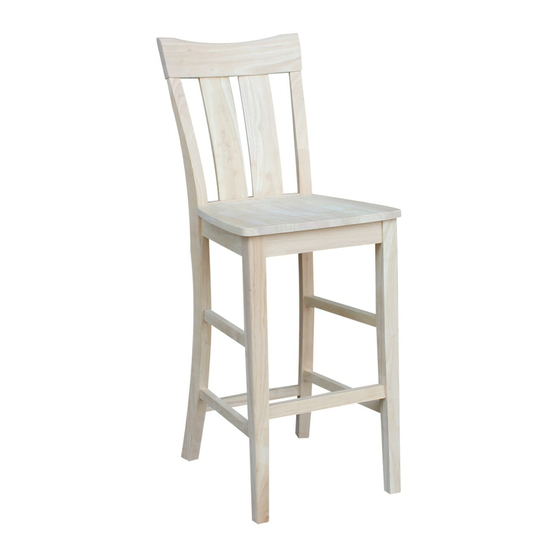

- Page 1 ASSEMBLY INSTRUCTIONS Description : 30 IN AVA STOOL Item No. : S-133 ITEM NO.: S-133 Printed in Vietnam REVISED MAR 19, 2018 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: S-133 Printed in Vietnam REVISED MAR 19, 2018 - 2 -...
- Page 3 Long screw (M6 x 80mm) (M4 x 50mm) Medium screw Lock Washer (M4 x 35mm) (6.5 x11mm) Flat Washer Allen Key (6.5 x19mm) (4 x 30mm x 110mm) ITEM NO.: S-133 Printed in Vietnam REVISED MAR 19, 2018 - 3 -...
- Page 4 Attach front stretcher (G) between front legs, and then attach side stretchers (E) and (F) to front and back legs with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: S-133 Printed in Vietnam REVISED MAR 19, 2018...
- Page 5 STEP 3 Attach seat (C) to top of the seat frame with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: S-133 Printed in Vietnam REVISED MAR 19, 2018 - 5 -...
