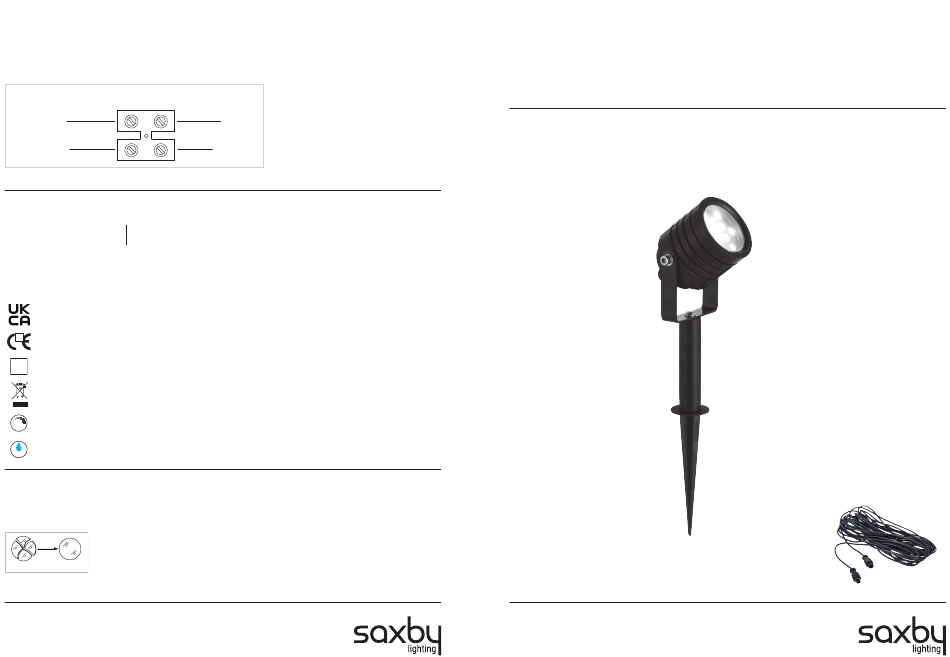

Saxby Lighting 91963 Instruction Manual

Wiring - Terminal Block
If not fitting to a plug then the product must be wired to a IP67 outdoor rated (or highter rated) terminal block in the following
way. (recommended terminal block ref. 90131/ 90132)
Having correctly identified the wiring from your existing light fitting, connect to the approved outdoor rated or
approved double insulated terminal block (not supplied) in the following way:
SUPPLY
NEUTRAL
SWITCHED LIVE
Technical data
Supply
Output: 12V DC 5W Max. Constant Voltage
220-240V~, 50Hz
Voltage:
Bulb
2.5W LED module (SMD) RGB
Type:
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is suitable for dimming with 'TUYA' app, Amazon Echo or Google Home.
This product is rated at IP65.
65
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
This LED's are protected by a plastic lens. The lens part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the plastic lens in place.
Replace Cracked Shade
V2 03/12/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Check that...
LIGHT FITTING
• You have correctly identified the wires.
• The connections are tight.
BLUE (N)
• No loose strands have been left out of the
connection block.
BROWN (L)
• Ensure that all cord grips are tightly secured.
• Ensure that all seals are re-fitted correctly.
Instruction manual

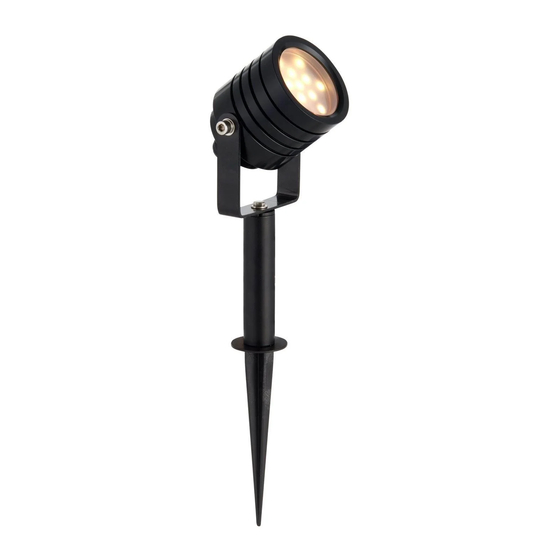

Smart Luminatra RGB
91963
www.saxbylighting.com
Accessory
92019 10m cable
(purchased separately)
